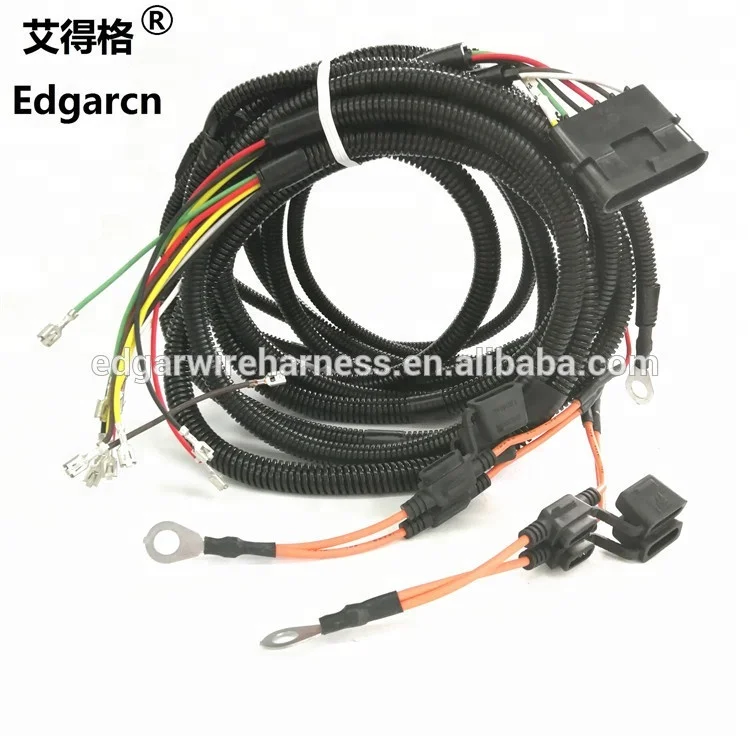

Custom cable assemblies wiring harness with relay holder IPC620 manufacturer 1 years warranty in DongGuan

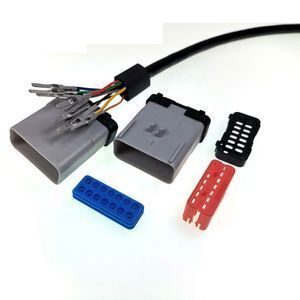

 The EDG-HD series is an environmentally silicone rubber sealed, thermoplastic cylindrical connector, which is designed to be a faster, easier, trouble free assembly diagnostic connector in heavy-duty industry like truck, bus, cross-country vehicle,crane and forklift etc. When mated, the contacts are protected from water, dust, lubricating oils, fuel, road salt, grease, mud and other contaminants encountered.

Product Specification

• Operating at temperatures -40℃ to +125℃, no Cracking, Chipping or leaking after 20 test cycles from -40℃~+125℃.

• No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G’s at 10 to 2000Hz in each of the three mulually perpendicular planes for 2 hours. Force testing report as below shows

• IP68 rating, waterproof withstand immersion under 1.2 meter of water for 24 hours.

• The forece testing as below show

  EDG-HD10-9-1939P-P080

  Terminal type	Wire type	CONT. Retention	REF crimp tensile	Failue Model
  1060-16-0122	UL 1007 18#	20 LBS	>20 LBS	Wire damage
  1060-16-0122	UL 1007 16#	20 LBS	>25 LBS	Grommet broken

            EDG-HD16-9-1939S-P080

• Terminal type	Wire type	CONT. Retention	REF crimp tensile	Failue Model
  1060-16-0122	UL 1007 18#	20 LBS	>20 LBS	Wire damage
  1060-16-0122	UL 1007 16#	20 LBS	>25 LBS	Grommet broken

Packaging Details could be customized by client specified.
Normally, the lead time below for reference, the detail according to conversation:

International expressed by DHL, UPS, FedEx, TNT, ARAMEX and EMS etc..

Customers choice for shipping by air, sea or others.

Payment for samples/mass products shall be closing before delivery, amount above 5000 USD according to conversation in somewhere.

M8/M12 sensor cable, coil cord flexible cable, machinery wire harness, sensor cable

1. Q: Can you help to design?

A: Yes, we are an ODM / OEM company, beyond we have been specializing in wire harness & Cable assembly since 1999.

2. Q: When will you start to help design?

A: We sketch simple solution for initial discussion, after quotation and order placed then start to drawing and double confirm with client for the design.

3. Q: What if quality issues occur when customer discover?

A: Our quality and engineer team will positively respond for the quality issues with 72 hours, as we are intend to make long-stand strategy with customer and the value is to provide better service.

4. Q: Do you have any standard products to cut down customers lead time for prototype and tooling cost?

A: Yes, we have developed over 1000 sets of molds and some of them can be used for customer directly. Besides, we specialize in wire harness over 20 years with more than 5000 products
