Support underwater multifunctional hydraulic shearing and expanding machine easy to operate hydraulic shearing and expandingtool

Product details
Rated expansion tension:25-40 KN;Tel/whatsApp/Wechat:+8615650379513;
Size:760 * 210 * 170;Port:QING DAO PORT;
Handle force:300N;Skype:qkmachinery;
Quality:15.5kg;Packaging Detail:Wooden cased Carton case As custom's require;
Maximum opening distance of scissors end:360mm;No load open pressure times:9 times;
Rated working pressure:63Mpa;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Place of Origin:China;Maximum shear capacity:10mm(steel plate);
Supply Ability:200 Case/Cases per Day;
Product Description

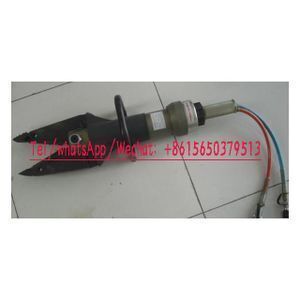

The portable universal hydraulic shearing and expanding tool is integrated with the manual pump, the high and low pressure can be automatically converted, the shearing knife and the manual pump can rotate 360 degrees each other, suitable for different occasions and directions.



Application:

1, traffic accident rescue earthquake disaster rescue accident rescue

2, can work underwater

3, suitable for the upper end of the ladder and hillside operations, pry the door and make the metal structure deformation

4. Cut off metal structure, vehicle parts, pipes and metal plates

Features of portable hydraulic shears and expanders:

1, the tool and pump, no external power source, high and low pressure automatic conversion

2. The cutter and the manual pump can rotate 360 degrees each other to adapt to different occasions and directions

3. The cutter is made of tool steel that can be re-grinded, which can be sheared, expanded and clamped

4, light weight, easy to carry, can be placed on a motorcycle to implement rapid maneuver rescue

5, can be used in the area, very safe



Main technical parameters

Rated working pressure: 63Mpa

Maximum opening distance of scissors end: 360mm

Maximum shear capacity: 10mm(steel plate);(Q235 material) : diameter 28mm

Rated expansion tension: 25-40 KN

No load open pressure times: 9 times

No - load closing times: 11 times

Handle force: 300N

Quality: 15.5kg

Size: 760 * 210 * 170





Packaging & Shipping



 Wooden cased

 Carton case

 As custom's require

 Qingdao Port Transport





FAQ



Are you manufacture?

Yes. We are one of leading manufacturers



Do you have Stock productions to sell?

Yes, of course. But we also offer OEM service. Please send us some drawing.



What information do you want to know if i want to get a quotation?

a). The model/size of your products.

b). The application for your products.

c). Special package methods if you needs.

d). Raw material.



Do you inspect the finished products?

Yes.Each step of products will be carried out inspection by QC department until shipping



What advantages do you have?

(1) Punctual: Have your orders met with the latest delivery?

We are a manufacturer with so many advanced and new machines. It ensures we have the ability to carry out the production schedual for punctual delivery.



(2) 20year production experience. We have over 20 years exprerience in this industry.

That means we can preview the problems for the orders and production. Therefore, it will make sure to deduce the risk of bad situation to happen.



(3) Point to point service.

There is two sales departments who will serve you from inquiry to products shipped out. During the process, you just need to discuss with him for all the problems and the way sames much times.
