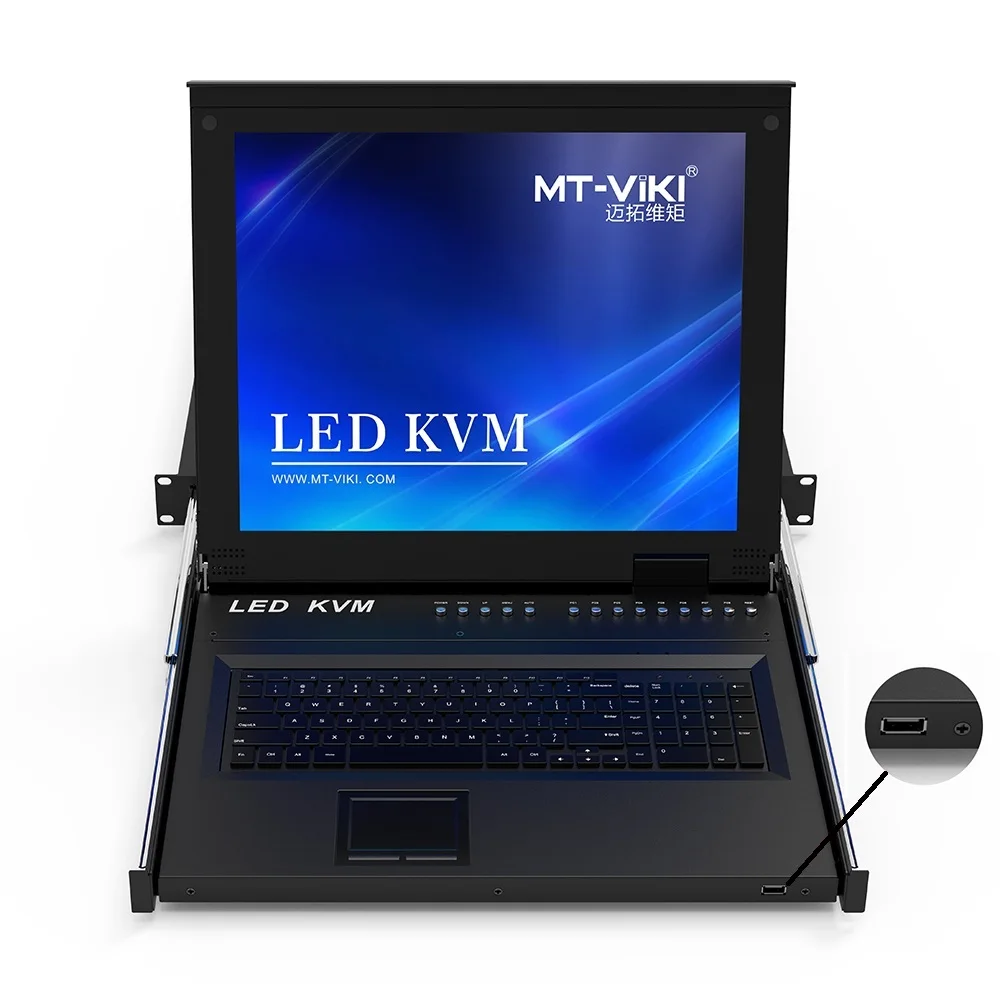

17'' LED 16 Port Rack 1U Screen KVM Console
- 341.00 piece
| Switch Mode: | panel switch,OSD menu switch,hotkey switch; | Place of Origin: | Guangdong China; |
| Computer Connections: | 16 Ports; | Features: | Hot plug,drawer type,OSD menu; |
| Packaging Detail: | Color box+Carton box.; | Product type: | Auto USB KVM Switch; |
| Resolution: | 1280 x 1024; | Monitor Connections: | 1 Ports; |
| Port: | Shenzhen,Guangzhou; | Supply Ability: | 10000 Piece/Pieces per Day; |
| Certification: | FCC,ce,RECH,UL,RoHS; | Power supply: | DC 12V; |
| Brand Name: | MT-VIKI; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal; |
| Shell material: | Aluminum alloy; | Interface Type: | VGA; |
| Model Number: | MT-1716UL; | Screen: | 4:3 ,17 inches ,LED; |
| Customization: | OEM/ODM; | Warranty: | 1 Years; |
| Color: | Black; | Products Status: | Stock; |
Product features
1.17 inch display / mouse / keyboard / smart switcher
2. Excellent video performance, the best resolution is up to 1280*1024
3. Support password protection and search for PC server name
4. LED liquid crystal display adjustment function, rail with automatic locking device
5. Support complete DDC2B function, can also detect screen model without switching computer
6. Support server input with built-in PS/2 keyboard and mouse

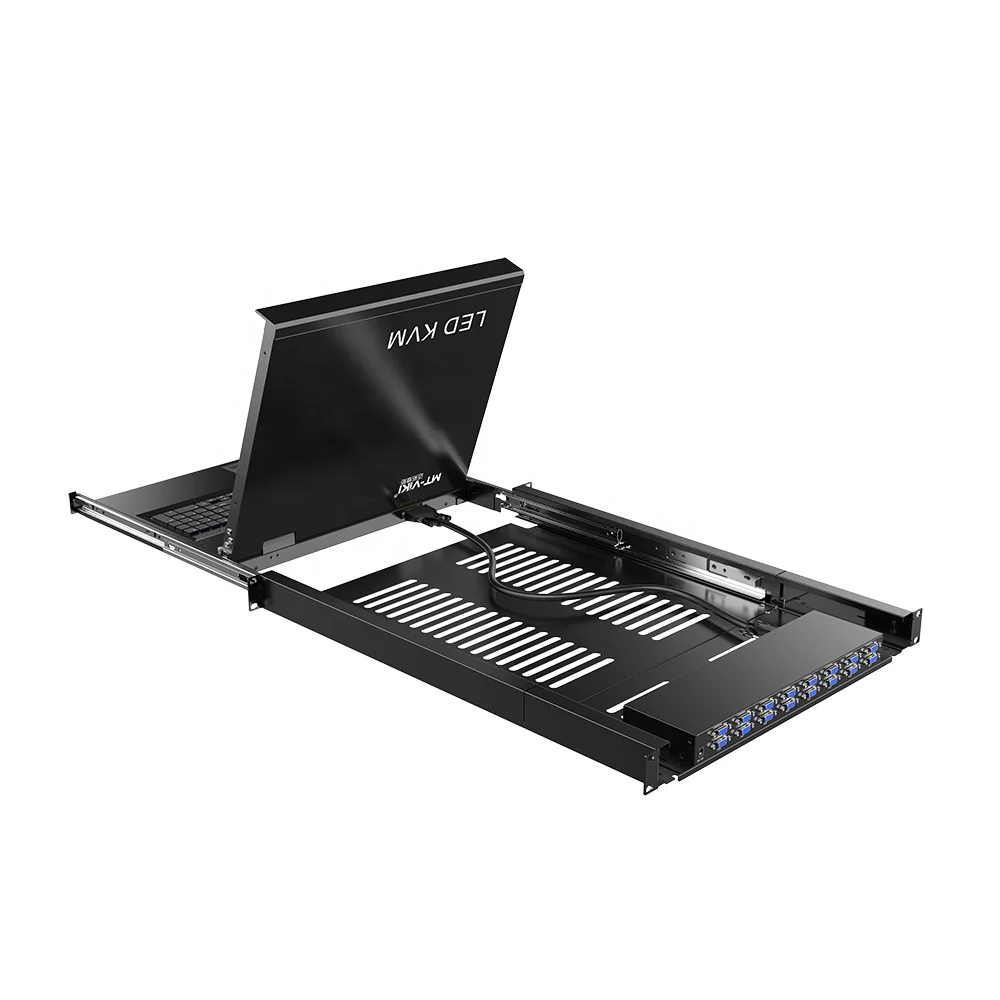

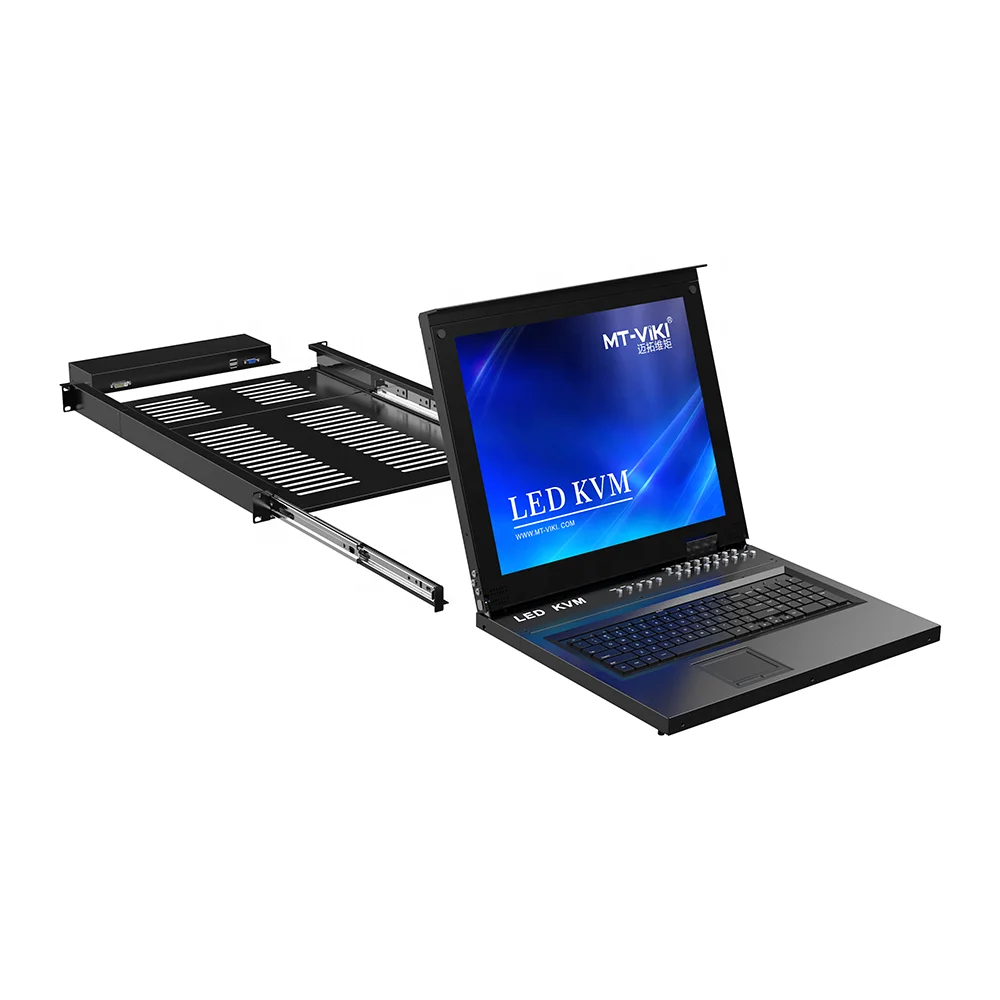

7. Drawer type installation design, can adjust the length to fit the rack space
8. No additional software required, and can be switched via panel buttons, hotkeys, or OSD on-screen menu functions
9.98-key keyboard and TouchPAD touch-sliding mouse
10. Support various server operating systems: Dos/W indows series, Linux, Unix, Mac 0s8.6/9/10, SUN Solaris 8/9
11. Made of aluminum shell, easy to install, lightweight, portable design
12. Data only needs to pass the standard (full pin 24+5) DVI line transmission
Product specification
| Performance Parameter | Product Specification | ||
| 1708UL | 1716UL | ||
| Liquid crystal display | Screen style | XGA TFT LED | |
| Screen size | 4:3 17inches | 4:3 17inches | |
| Resolution | 1280*1024 | 1280*1024 | |
| Color display | 16.7M | 16.7M | |
| Brightness | 300(cd/m2) | 300(cd/m2) | |
| Contrast | 1000/1 | 1000/1 | |
| Pixel interval | 0.264(H)x0.264(W) | 0.242(H)x0.242(W) | |
| Life span | LED MTBF>50000H,Backlight MTBF>30000H | ||
| Power | Max.24W | Max.24W | |
| Built-in Keyboard | Keyboard design | 98 keys | 98 keys |
| Compatibility | IMB/AT,support Microsoft Windows9X,/Me/nt/2k/XP | ||
| Keyboard interface | PS/2 | ||
| Life span | >1.000.000times | ||
| Mouse touch pad | Hardware interface | PS/2 | |
| Operate system | Support Me/NT/2K/XP | ||
| Life span | >1.000.000times | ||
| Power input | DC 12V | ||
| Shell color | Black | ||
| Shell material | Aluminum alloy | ||
| Dimmension | 600x400x45mm | ||
| Rack mounting depth | 600mm-810mm(select proper hang ring) | ||
| Working temperature | -45-60℃ | ||
| Storage temperature | -20-65℃ | ||
