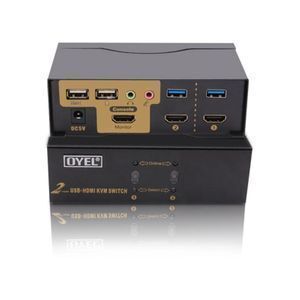

2 ports USB HD Auto KVM switch H DMI KVM SWITCH 2 input 1 output KVM Switch

Supplier: Shenzhen Lianhongtai Electronics Co., Ltd.
Region: Guangdong, China
Contact: Mr Tony Liang
Price: $35.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Input interface:	HDMI+USB;	Resolution:	4KX2K;
Interface Type:	HDMI;	Products Status:	Stock;
Model Number:	EL-21HU;	Supply Ability:	1000 Piece/Pieces per Week;
Brand Name:	Oyel;	material:	Iron box;
Port:	Shenzhen;	Support:	HDCP(bule light) EDID Virtual Display;
packing size:	490320335MM(Single package);	Certification:	ISO;
Monitor Connections:	1 Ports;	Switching mode:	hotkey /keybord switch;
Computer Connections:	2 Ports;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Place of Origin:	Guangdong China;	Packaging Detail:	Color box 493233.5CM 25pcs each carton, G.W 26KG;
HDMI edition:	1.4 edition;	Input port:	2;
Control port:	USB-AF2 DC3.52 HDMI;

1.Product Features

1)Exquisite appearance, easy installation

2)Support Windows X, Apple,MAC Linux, Netware, Unix operating system and so on

3)Support different kinds of Digital Visual Recorder (DVR)

4)Support different kinds of mouse and keyboard

5)Support audio input and output, both the earphone and microphone and so on.

6)LED indicator or screen indicates the current PC status

7)With PC auto scan function, the scan interval can be set by user.

8)Different kinds of switch mode: Hotkeys on the keyboard, or buttons on the front panel

9)Power adapter:DC5V@1000mA

Note: There is no power adapter together with the machine, the machine can be powered from the PC via the USB interface.

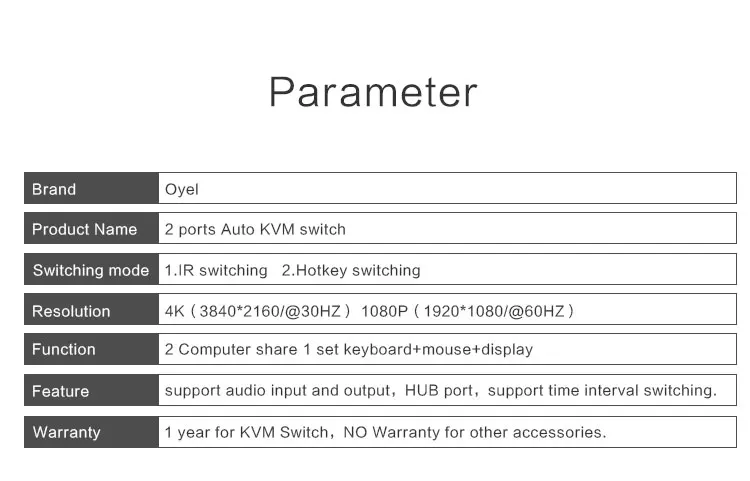

2. Parameters List

P/N	EL-21HU	EL-41 HU	EL-81 HU	EL-161 HU
Input Interface	HDMI+USB	HDMI+USB	HDMI+USB	HDMI+USB
Input Ports	2	4	8	16
Output Console	USB-AF2 DC3.52 HDMI	USB-AF2 DC3.52 HDMI	USB-AF2 DC3.52 HDMI	USB-AF2 DC3.52 HDMI
HDMI Version	1.4	1.4	1.4	1.4
HDMI Resolution	4KX2K@30Hz	4KX2K@30Hz	4KX2K@30Hz	4KX2K@30Hz
Switch Mode	button, Hotkey	button, Hotkey	button, Hotkey	button, Hotkey
Hotkey	Scroll Lock or Caps Lock or Num Lock	Scroll Lock or Caps Lock or Num Lock	Scroll Lock or Caps Lock or Num Lock	Scroll Lock or Caps Lock or Num Lock
Switch Mode 1	Hotkey,Hotkey, No.,Enter	Hotkey,Hotkey, No.,Enter	Hotkey,Hotkey, No.,Enter	Hotkey,Hotkey, No.,Enter
Switch Mode 2	Hotkey,Hotkey, Arrow,Enter	Hotkey,Hotkey, Arrow,Enter	Hotkey,Hotkey, Arrow,Enter	Hotkey,Hotkey, Arrow,Enter
Switch Mode 3	Ctrl,Ctrl or Shift,shift or Alt,Alt	Ctrl,Ctrl or Shift,shift or Alt,Alt	Ctrl,Ctrl or Shift,shift or Alt,Alt	Ctrl,Ctrl or Shift,shift or Alt,Alt
Ctrl Hotkey Open/Shut	Hotkey,Hotkey, C,L,Enter	Hotkey,Hotkey, C,L,Enter	Hotkey,Hotkey, C,L,Enter	Hotkey,Hotkey, C,L,Enter
Shift Hotkey Open/Shut	Hotkey,Hotkey, S,T,Enter	Hotkey,Hotkey, S,T,Enter	Hotkey,Hotkey, S,T,Enter	Hotkey,Hotkey, S,T,Enter
Alt Hotkey Open/Shut	Hotkey,Hotkey, A,T,Enter	Hotkey,Hotkey, A,T,Enter	Hotkey,Hotkey, A,T,Enter	Hotkey,Hotkey, A,T,Enter
Beep Hotkey Open/Shut	Hotkey,Hotkey, B,Enter	Hotkey,Hotkey, B,Enter	Hotkey,Hotkey, B,Enter	Hotkey,Hotkey, B,Enter
Scan Hotkeys	Hotkey,Hotkey, S,Enter	Hotkey,Hotkey, S,Enter	Hotkey,Hotkey, S,Enter	Hotkey,Hotkey, S,Enter
Outlet	Desktop	Desktop Rack mounted	Desktop Rack mounted	Desktop Rack mounted
Shell	Metal	Metal	Metal	Metal

3. Installation Steps

1) Connect the PCs and the KVM switch with the KVM cables. The cable with HDMI, USB, Audio, MIC connectors connected to the PC, the other end connect to the KVM switch.

2) Connect the mouse and keyboard to the mouse and keyboard port on the KVM console end.

3) Connect the monitor or TV to the HDMI port on the KVM console end.

4) Connect the audio box, microphone to the DC3.5 audio port on the KVM console end.

5) Power on the PCs in sequence, after one PC booted (the mouse and keyboard can operate normally), boot the next one, till all the PCs booted.
