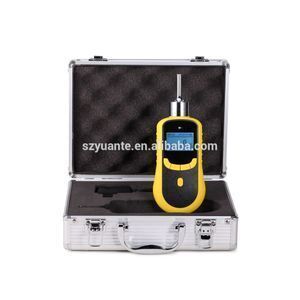

ATEX CE certified Portable O3 Ozone gas meter detector 0.001ppm UK sensors highest precision

Click here to contact

Product details

Type:	O3 Ozone gas meter detector;	Payment Terms:	T/T,Western Union;
Port:	Shenzhen;	Place of Origin:	Guangdong China;
Measure range:	0-1ppm, 5ppm, 10ppm, 20ppm, 50ppm, 100ppm, 500ppm, 1000ppm, 5000ppm;	Packaging Detail:	Adapter, USB charging cable, Aluminum alloy suitcase;
Weight:	300g;	Sensor type:	Electrochemistry;
Power:	Lithium polymer;	Model Number:	SKY2000-O3;
Resolution:	0.001ppm, 0.01ppm, 0.1ppm, 1ppm;	Package Preview:	;
Product:	O3 Ozone gas meter detector;	Sampling method:	Internal pump;
Supply Ability:	3000.0 Piece/Pieces per Month;	Color:	Yellow;
Brand Name:	YuanTe;	Size:	2057532mm;

ATEX CE certified Portable O3 Ozone gas meter detector 0.001ppm UK sensors highest precision

Characteristics & Functions

1. LCD dot matrix display, the gas type, unit, concentration, local time can be showed on the screen.

2. Support Chinese and English operation, easy to shift.

3. The gas concentration unit PPM and mg/m3 can be shifted quickly.

4. Explosion-proof certification, explosion-proof grade: II 2G Ex ia IIC T4 Ga IP66.

5. Monitor the hydrogen gas concentration in environment and enclosed space and alarm.

6. With Self-calibration and zero calibration functions, makes the detection more accurate and reliable.

7. One press to restore factory setting, free from the bother of mis-operation.

8. With temperature and pressure compensation, to realize gas concentration compensation under conditions of different temperatures or pressures.

9. Two stages alarm with sound and light, alarm point is settable.

10. Rechargeable lithium polymer battery of large capacity.

Specification

Gas Detected	Ozone/O3
Detection principle	Electrochemistry
Sampling Method	Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection.
Measure Range	0-1ppm, 5ppm, 10ppm, 20ppm, 50ppm, 100ppm, 500ppm, 1000ppm, 5000ppm
Resolution	0.001ppm, 0.01ppm, 0.1ppm, 1ppm
Precision	≤± 2-3% F.S for normal sensor, .≤± 1% F.S for high precision sensor
Signal Output	High-speed data transmission by USB, available for data downloading and printing (optional)
Response Time	≤10S	Recovery Time	≤10S
Repeatability	≤±1%	Linearity error	≤±1%
Zero shift	≤±1%(F.S/year)	Display	LCD dot matrix display
Operating language	Chinese/English	Gas unit	%LEL, PPM
Temperature	-20℃~50℃	Humidity	0-95%RH
Explosion-Proof	II 2G Ex ia IIC T4 Ga IP66	Degree of protection	IP66
Alarm mode	Sound, light, vibration	Operating time	12h
Dimensions	2057532mm	Weight	300g
