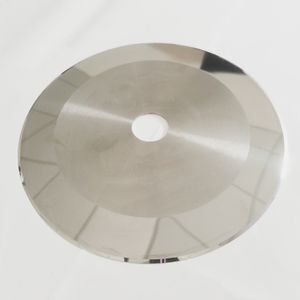

Industrial round roll cutting blade for machine

Click here to contact

Product details

After Warranty Service:	Video technical support,Online support;	Place of Origin:	Jiangsu China;
Design:	Single edge and double edge are available;	Knife edge:	45 °,could be adjusted according to your requirement;
Packaging Detail:	knife edge rubber protection - plastic bag - foam - paper box - wooden box;	Brand Name:	Shanggong;
Inner diameter:	40, 45, 50, 60, 70, 75mm;	Selling Units:	Single item;
Spare Parts Type:	roll cutting blade;	Single gross weight:	5.0 KG;
Key Selling Points:	Easy to Operate;	Marketing Type:	New Product 2020;
Single package size:	20X20X3 cm;	Appliacation:	Industrial round roll cutting blade for machine;
Usage:	paper, film, foam, foil,cloth, rubber, plastic etc;	Outer diameter:	OD70-120mm, customized size is available;
Advantage:	Burr-free;	Material:	Tungsten Carbide(YG12),SKH-51,W6Mo5Cr4V2,SKD-11 and so on,Stainless steel;
Local Service Location:	Pakistan,Thailand,Argentina;	Service:	OEM available;
Machinery Test Report:	Provided;	Weight (KG):	3 KG;
Package Preview:	;	Warranty:	2 years;
Thickness:	1.0-1.2mm, Customized thickness available;	Applicable Industries:	Machinery Repair Shops,Manufacturing Plant,Retail;
Video outgoing-inspection:	Provided;	Condition:	New;
Certification:	ce;	Showroom Location:	Pakistan,Thailand,Argentina,South Africa;
After-sales Service Provided:	Video technical support,Online support;	Type:	Machining Parts;

Industrial round roll cutting blade for machine

Product Description

Standard size( Customized size is available)
Specification	Outer diameter	Inner diameter	Thickness	Knife edge type	Material
Disc type knife
75x45x1.2	Φ75	Φ45	1.2T	Single/double side	W6Mo5Cr4V2/SKH-51/SKD-11
90x60x1.2	Φ90	Φ60	1.2T	Single/double side	W6Mo5Cr4V2/SKH-51/SKD-11
105x70x1.2	Φ105	Φ70	1.2T	Single/double side	W6Mo5Cr4V2/SKH-51/SKD-11
105x75x1.2	Φ105	Φ75	1.2T	Single/double side	W6Mo5Cr4V2/SKH-51/SKD-11
110x75x1.2	Φ110	Φ75	1.2T	Single/double side	W6Mo5Cr4V2/SKH-51/SKD-11
Flat round knife
80x40x1.0	Φ80	Φ40	1.0T	Single/double side	W6Mo5Cr4V2/SKH-51/YG12/SKD-11
90x60x1.0	Φ90	Φ60	1.0T	Single/double side	W6Mo5Cr4V2/SKH-51/YG12/SKD-11
120x40x1.0	Φ120	Φ40	1.0T	Single/double side	W6Mo5Cr4V2/SKH-51/YG12/SKD-11
half cut-off slitting knife
70x50x1.0	Φ70	Φ50	1.0T	double side	YG12/SKH-51
80x50x1.0	Φ80	Φ50	1.0T	double side	YG12/SKH-51
100x60x1.0	Φ100	Φ60	1.0T	double side	SKH-51

Our Company

About Us

Who we are

Suzhou Shanggong Blade Co., Ltd is located in No. 66, Kaigui Road, Yushan Town, Kunshan. Our company covers around

6,600 square meters. We have around 120 employees and nearly 130 sets high-precision grinding equipment and testing

equipment which are used in processes from raw material to finished products.

We have been specialized in manufacturing all kinds of precise mechanical tools and carbide tools since 16 years ago.

Our Products have been exported to more than 40 countries in the world. Products are used in many industries such as

electronic film, food processing, metal, rubber tires, textile chemical fiber, printing, package and so on.
