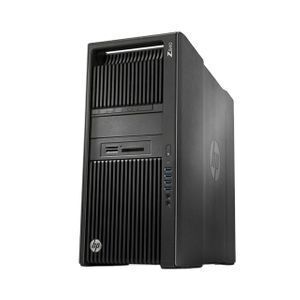

Original hp Intel Xeon E5-2650 v4 z840 workstation

Form Factor

Tower

Operating System

Windows 10 Pro 64
Windows 10 Home 64
Windows 8.1 Pro 64
Windows 8.1 Single Language 64
Windows 7 Professional 64

Processor

 Intel® Xeon® E5 2600 v4 processor; Intel® Xeon® E5 2600 v3 processor

Chipset

Intel® C612

Memory

1TB DDR4-2400 ECC registered SDRAM

Internal Storage

300 GB up to 1.2 TB SAS (10000 rpm)
500 GB up to 4 TB SATA (7200 rpm)
500 GB SATA SED (7200 rpm)
128 GB up to 1 TB SATA SSD
256 GB up to 512 GB SATA SED SSD
1 TB (8 GB cache) SATA SSHD
256 GB up to 512 GB HP Z Turbo Drive (PCIe SSD)
256 GB up to 1 TB HP Z Turbo Drive G2 (PCIe SSD)
512 GB (2 x 256 GB) up to 2 TB (4 x 512 GB) HP Z Turbo Quad Pro (PCIe SSD)

Optical Storage

Slim SATA DVD-ROM; Slim SATA SuperMulti DVD writer; Slim SATA BDXL Blu-ray writer

Additional Storage

15-in-1 media card reader (optional) HP DX115
Removable HDD Frame/Carrier (optional)

Available Graphics

INVIDIA® NVS™ 310 / 315 / 510
Entry 3D: NVIDIA® Quadro® K420 /K620; AMD FirePro™ W4300 /K1200 /K2200
igh-end 3D: NVIDIA® Quadro® M4000 /M5000 /K6000; AMD FirePro™ W7100

I/O Controller

HP IEEE 1394b FireWire PCIe (optional) HP Thunderbolt™ 2 PCIe 1-port I/O Card (optional)

Audio

Integrated IDT 92HD94 audio

Drive Bays (Internal)

Four 3.5"

Drive Bays (External)

Two 5.25"; One slim ODD

Power

850 W 88% efficient, wide-ranging, active PFC; 1125 W 90% efficient, wide-ranging, active PFC

Dimensions (W x D x H)

8 x 20.7 x 17.5 in
20.3 x 52.5 x 44.4 cm

Weight

46.7 lb
21.1 kg
(Exact weight depends upon configuration.)

Warranty

Protected by HP Services, including a limited 3 years parts, 3 years labor, and 3 years onsite service (3/3/3) standard warranty
