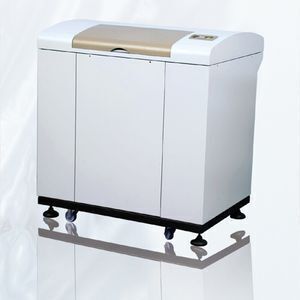

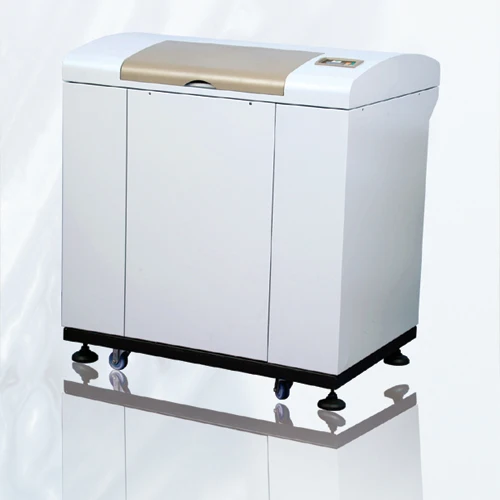

WIDE 7008II automatic laser plotting system plotter for PCB industry with film process

Supplier: Hangzhou Artamber Culture Creative Co., Ltd.
Region: Zhejiang, China
Contact: Mr. Anderson Zhang
Price: $26500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Laser Type:	SEMICONDUCTOR;	Dimension:	13508601350mm;
Laser source:	Semiconductor laser;	Supply Ability:	10.0 Set/Sets per Month;
Machinery Test Report:	Provided;	Port:	shanghai/ningbo/shenzhen/xiamen;
Condition:	New;	Applicable Material:	sensitive film;
Warranty:	1 YEAR;	Marketing Type:	Ordinary Product;
Core Components:	PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear;	Certification:	ce,ISO,CCC;
Application:	Laser Plotter;	After-sales Service Provided:	Field installation, commissioning and training;
Local Service Location:	United Kingdom,Russia,South Korea;	Package Preview:	;
Guiderail Brand:	THK;	Key Selling Points:	Competitive Price;
Resolution:	4000/8000/12000dpi;	Applicable Industries:	PCB;
Graphic Format Supported:	GERBER;	Brand Name:	WIDE;
Laser Wavelength:	650nm;	Laser Source Brand:	REALLIGHT;
Weight (KG):	600 KG;	Film size:	762610mm /660508 mm 30"24" & 26"20";
Laser Head Brand:	REALLIGHT;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Warranty of core components:	3 years;	Film Loading:	30 pcs auto-loading , on-line;
Payment Terms:	L/C,D/A,D/P,T/T;	Video outgoing-inspection:	Provided;
Showroom Location:	Russia,South Korea;	Place of Origin:	China;
CNC or Not:	Yes;	Packaging Detail:	Packaged by Standard Export Wooden Box;
Advantage:	high accuracy and competitive price;

Imported h

Features:
Specially designed for PCB,LCD manufacturing. Imported high precision scanning control system. With the laser control system to ensure consistency in line width. 1 mil uniform width 1 mil line spacing. Non-linear error modification function. Thin and thick film both can be used.

Model	WD7008Ⅱ
Film size	660×508mm(26"×20")
Resolution	6000/9000/12000dpi
Dimension	1130×860×1200mm
Image	External drum 32 beams scan
Accuracy	Error≤±0.01mm
Scan time	4'12"(6000dpi) , 6'18" (9000dpi) , 8'24"(12000dpi)
Loading	1 pce auto-loading
Driving Machine	Semiconductor lasers; Wavelength 650nm
Weight	470kg
Working environment	220V+2%, 50Hz/60Hz, 4A, Not more than grounding resistance 4Ω Temperature: 20~22℃; Humidity: 55~63%
