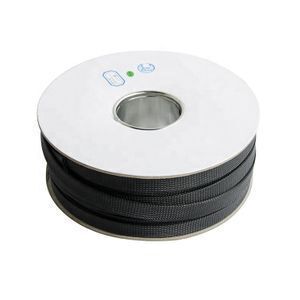

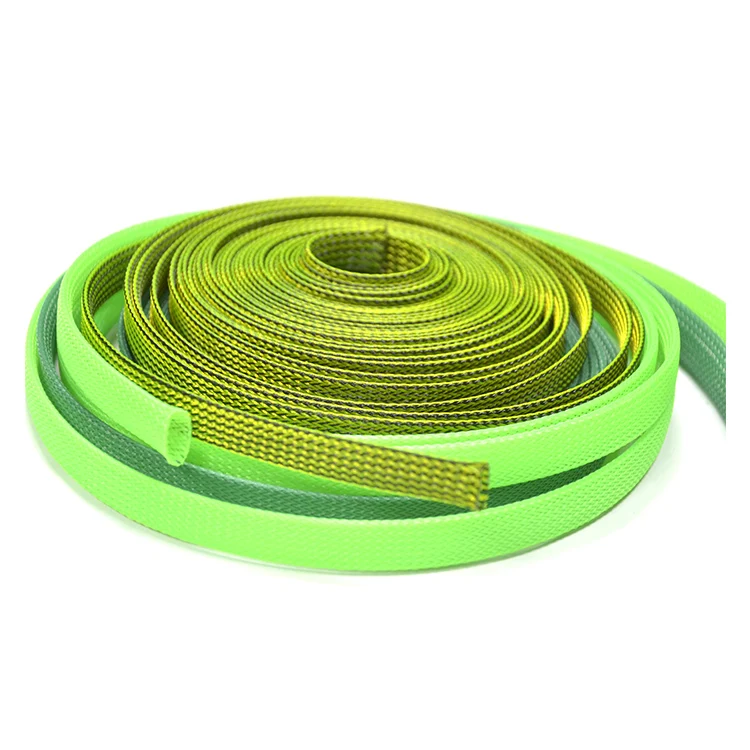

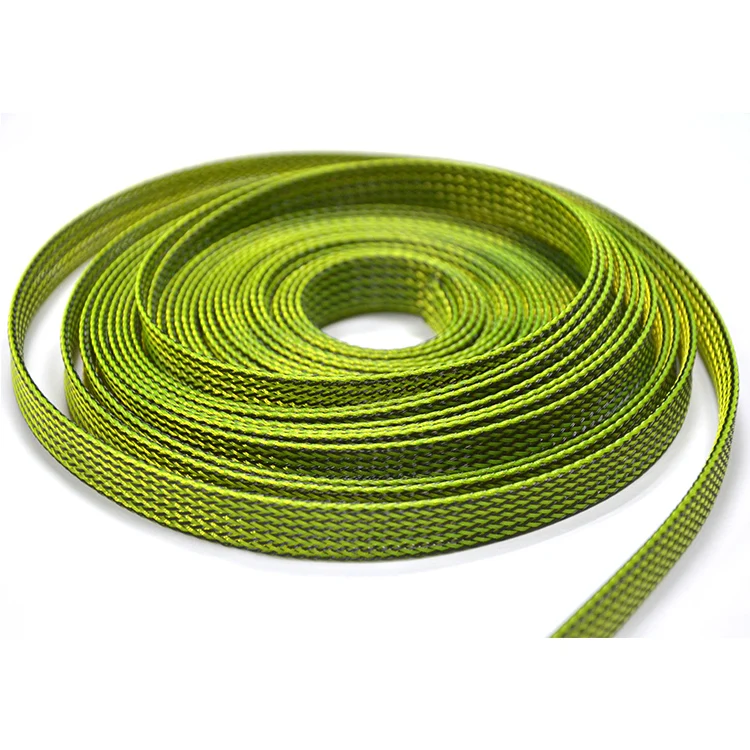

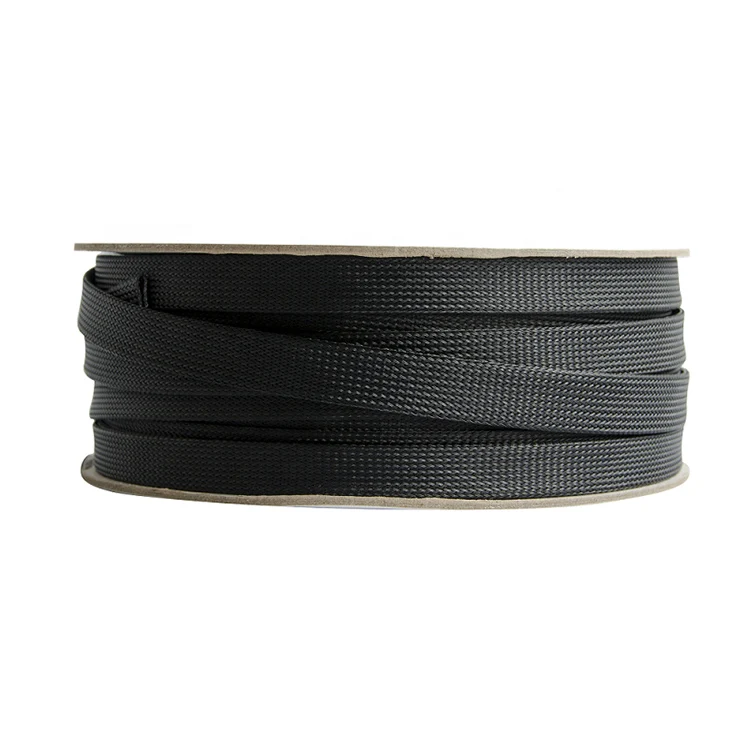

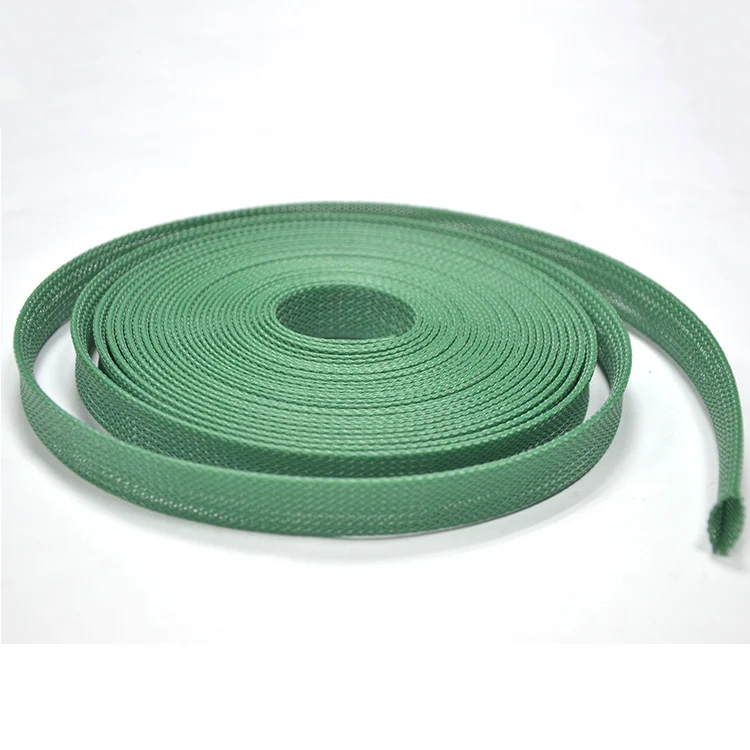

RoHS Certificate Flame retardant expandable Electric Wire PET braided sleeve

Product details
Operating range:-50°C to +150°C;Model Number:ID. 4mm;
Feature:braided and expandable;Brand Name:TONY;
Flammability:VW-1;Melt Point:250°C±5°C;
Packaging Detail:500m/roll, 6roll in one carton:54*28*39cm;Sample:Free;
Material:PET,PET;Standard Color:black;
Cutting tool:Hot Knife;Certificate:RoHS, Halogen free;
Gross weight per batch:7.0 KG;Selling Units:Multiple of 1,000;
Place of Origin:Guangdong China;Usage:protectiong wire harness and optic fiber;
Package size per batch:54X28X39 cm;Type:braided sleeve;





Description:

Pet braided expandable cable sleeving is sleeved by the ROHS polyester silk knitting .It has a good scalability, flame retardant, wear resistance and thermal insulation. Product surface are smooth, brightly-colored, great variety. Products are widely used in computer power cord, audio-video, automotive, aviation , wire and cable industries, It has protect and beautify the role. Others can be customized according to customer demands including a variety of colors, patterns and all kinds of UV fluorescence color.



Datasheet

Part No.

Size Dia.

mm

Max. bundle Dia. mm

Packing (Long)

FR-002

2.0

4.0

1000m

FR-003

3.0

6.0

500m

FR-004

4.0

7.0

500m

FR-006

6.0

9.0

500 m

FR-008

8.0

16.0

350 m

FR-010

10.0

19.0

350 m

FR-012

12.0

24.0

200 m

FR-015

15.0

27.0

200 m

FR-020

20.0

30.0

200 m

FR-025

25.0

35.0

200 m

FR-030

30.0

50.0

150 m

FR-040

40.0

60.0

100 m

FR-045

45

75

100 m

FR-050 50 80 100 m
FR-064 64 105 100 m
FR-076 76 120 100 m

















































 Main Properties:

1. Operating temperature: -50°C~150°C



2. Melting point: 250±5°C.



3.Flammability: UL VW-1


4.Standard color: White, Black, Gray, Red, Yellow, Blue,Pink,Orange,Purple,Remix pattern



5.Cutting tool: Hot knife


6. Certificate: RoHS, MSDS





Braided Expandable Cable Sleeving  Application:

1. Automobile wires protection



2. Structured cabling system



3.A/V cables & cables



4.Industrial hoses & tubes protection
