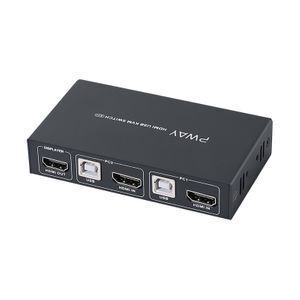

PWAY USB Switch 4K2K 2 in 1 out HD KVM Switch 4K2K@30Hz

Supplier: Shenzhen Pinwei Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Terry Li
Price: $15.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power supply:	USB-B power supply: 5V;	Standards:	HDMI 1.4;
Monitor Connections:	1 Ports;	Dimension:	11061.7222mm;
Single gross weight:	0.6 KG;	Resolution range:	4K*2K@30Hz;
Impedance:	100Ω;	Package Preview:	;
Packaging Detail:	carton box;	Computer Connections:	2 Ports;
HD Cable Range:	<5M( Resolution: 1920*1080@60Hz;	Products Status:	Stock;
Temperature:	Operating: -5℃ ~ +70℃;	Interface Type:	HDMI;
warranty:	1 year free warranty;	Power dissipation:	MAX 2W;
Model Number:	SH0201B;	Single package size:	20X15X6 cm;
Connector:	HDMI-A Interface;	Place of Origin:	Guangdong China;
Resolution:	1920 x 1080;	Selling Units:	Single item;
Brand Name:	PWAY;

PWAY USB Switch 4K*2K 2 in 1 out HD KVM Switch 4K*2K@30Hz

1. Description

HDMI KVM switch two groups of high-definition Audio and video source and USB interface implementation free switch, Adaptive EDID , can adapt to a variety of complex application environments.The equipment has excellent image processing and transmission capacity, make the output signal is more smooth and steady, is a reliable, high performance and efficient way of HD USB switch

2. Features

l The two lines of high-definition Audio and video source and USB interface implementation free switch

l Support video resolution max up to 4Kx2K@30Hz;

l Compliance with HD1.4 standard;

l Adaptive EDID , able to adapt to a variety of complex application environment;

l Hot key switch, convenient and quick(Scroll Lock + Scroll Lock+ 1 or 2)

l High compatibility, can auto-match source and display device;

l Built-in automatic adjustment system, make the image smooth, clear and stable;

l Built-in ESD protection system;

l Simple to install, plug and play;

3. Package list

l HD KVM2*1 Switcher host 1 pcs

l USB Cable 2 pcs

l HD Cable 2 pcs

l User manual 1 pcs

4. Specifications

Parameter		Description
Video	Standards	HDMI 1.4
	Maximum pixel clock	225MHz
	Maximum data rate	10.2Gbps
	Resolution range	3840*2160@30Hz
	Connector	HDMI-A Interface
	Impedance	100Ω
	HD Cable Range	<5M( Resolution: 1920*1080@60Hz)
USB	Interface protocols	USB1.1
	PC input interface type	USB-B
	Output interface type	USB-A
Other	Power supply	USB-B power supply: 5V
	Power dissipation	MAX 2W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	11061.7222mm
	The warranty	1 year free warranty

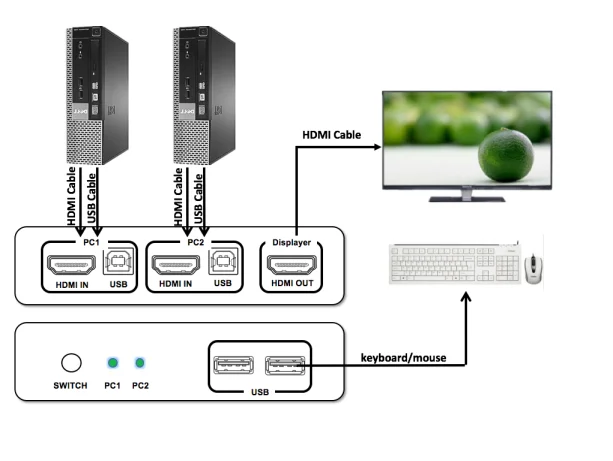

5. Panel

Port name	Description
1	PC1 group HD USB input
2	PC2 group HD USB input
3	HD video output signal
4	PC1, PC2 switch buttons and status indicators
5	PC1 status indicator
6	PC2 status indicator
7	USB keyboard mouse connectors
