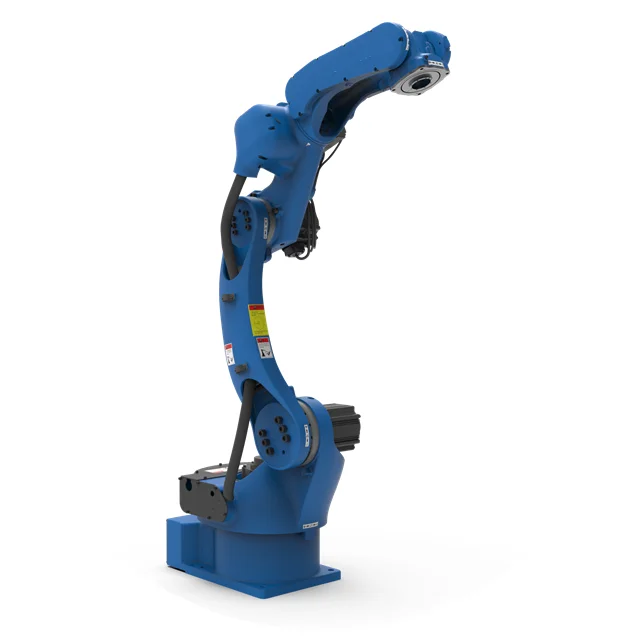

New Arrival Industrial Cnc Arm 6 Axis Robot Price

Supplier: Zhengzhou RBT I-Tech Co., Ltd
Region: Henan, China
Contact: Ms. Daisy Zhou
Price: $8200.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Packaging Detail:	standard exportation package;	Vertical Travel(mm):	900;
Axis:	6;	Material:	Metal;
Place of Origin:	Henan China;	Type:	Fully Automatic;
Supply Ability:	100.0 Set/Sets per Month;	Showroom Location:	None;
Power(W):	2000;	Certification:	CE ISO;
Applicable Industries:	Hotels,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Home Use,Printing Shops,Construction works ,Energy & Mining,Advertising Company;	Weight:	170kg;
Condition:	New;	After-sales Service Provided:	Field installation, commissioning and training;
Horizonal Travel(mm):	2500;	IP level:	body IP54 wrist IP67;
Port:	China main port;	Local Service Location:	None;
Max loading:	10 Kg;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Warranty:	1 YEAR;	Warranty of core components:	1 YEAR;
MOQ:	1 Sets;	Marketing Type:	New Product 2020;
Product name:	6 axis robot price;	Core Components:	other;
After Warranty Service:	Online support;	Color:	Customer Required;
Dimension(LWH):	300011001500mm;	Machinery Test Report:	Not Available;
Video outgoing-inspection:	Not Available;	Application:	Painting cutting handing marking grinding assembly;
Brand Name:	RBT;	Keyword:	6 axis robot price;
Package Preview:	;

New Arrival Industrial Cnc Arm 6 Axis Robot Price

Product Description

Main Features ofNew Arrival Industrial Cnc Arm 6 Axis Robot Price

1.(1) High quality multi-axes (6 axis, 5 axis, 4 axis) industrial robotic arm with payload 3kg 5kg, 6kg, 7kg, 8kg, 10kg, 12kg, 20kg, 25kg, 30kg, 50kg, 60kg, 80kg,120kg, 165kg, 210kg.
(2) 4-axis SCARA robots with payload 3kg and 6kg.
(3) Self-developed electrical arc tracker, laser tracker.
(4) Welding positioner, walking rail track.
(5) Free professional and detailed training.
(6) Life-long comprehensive 24-hours technical support.
(7) Pre-selling technical support. Our professional engineers help clients choose the correct robots.
(8) Abundant software functions on different-types working processes.Including palletizing, welding, spraying, appointment, remote, tracking, vision, punching, bending applications etc.

2.Our products are widely applied in machine tool loading and unloading, pick and place, welding, palletizing,material handling, deburring, spraying etc. We have more than 40 patents and intellectual property rights.

3.The advantages are : High quality, highly cost-effective, Well-knit compact structure, high speed, high precision, high expansiblity, easy operation, high flexibility, high reliability, easy maintenance.

Parameter list

Parameters of New Arrival Industrial Cnc Arm 6 Axis Robot Price

Number of shaft:	6 axis (J1, J2, J3, J4, J5, J6, Xs, Ys)
Payload:	3kg
Repeadted Positioning Accuracy:	±0.05mm
Self Weight:	56kg
Installation Method:	Ground Mounted
Power Capacity:	1.1kw
Maximum Reach Distance:	800mm
Minimum Reach Distance:	190mm
Axis J1(turn):	±170°
Axis J2(lower arm swinging)	-90°+75°
Axis J3(uper arm swinging)	-90°+90°
Axis J4(arm rotary)	±170°
Axis J5(wrist pitch)	±120°
Axis J6(wrist rotary)	±360°
Axis J1(turn)	190°/s
Axis J2(lower arm swinging)	225°/s
Axis J3(uper arm swinging)	270°/s
Axis J4(arm rotary)	270°/s
Axis J5(wrist pitch)	337°/s
Axis J6(wrist rotary)	420°/s
Synthetic arm tip speed:	1.5m/s
End flange:	solid
Can it be changed to 5 axis?	Yes
Main Application:	Material handling,palletizing,machine tool loading and unloading,teaching,playing chess

Robot System

Product Application of New Arrival Industrial Cnc Arm 6 Axis Robot Price

It‘s widely used in furniture, building material area, food and beverage area, pacakaging area, chemical area and so on, we will according custom requirements design right robot grip.

Packaging & Shipping

Package Detail:

1).Outside package:Standard plywood package.
2).Inner package:Stretchy film and plastic film for humidity.
3).Also we can package according to your requests.
Delivery Detail:

1).For standard Machinees,it will be 7-15 working days after payment

2).For non-standard Machinees and customized Machinees according to clients' specific requirements,it will be 15 to 30 working days after payment.

Our Services

Pre-Sales Service:
1. Inquiry and consulting support.
2.Detailed professional product quotation
3.View our Factory.
After-Sales Service

1.Training how to instal the machine, training how to use the machine.
2.Engineers available to service machinery overseas.
3.Technical support by phone,e-mail,whatsapp and skype.If you have any problems,we will within 12 hours to solve it.
4.Provide english version manual and operation video CD disk.
5.1 year guarantee for whole machine.
6.If you need any component of the machine,we will provide the best price for you.
