20ton XCMG HDD XZ200 Chinese horizontal directional drilling machine price for sale

Product details
Brand Name:XCMG;After Warranty Service:Spare parts;
Place of Origin:Jiangsu China;Condition:New;
Showroom Location:None;Max. Inclination angle:22;
Max. thrust-pull speed:28m/min;Weight:8500Kg;
Moving Type:Crawler;Local Service Location:Egypt,Turkey,United Kingdom,United States,Germany,Philippines,Peru,Pakistan,Russia,Thailand,Malaysia,Kenya,Argentina,South Korea,Colombia,Algeria,South Africa,Kazakhstan;
UNIQUE SELLING POINT:High operating efficiency;Model:XZ200;
Brand:XCMG;Pipe:60*3000mm;
Packaging Detail:Standard Package;Applicable Industries:Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Port:Shanghai Qingdao Etc;Warranty:1.5 years;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Thrust-Pull:Pinion and rack drive;
Supply Ability:100 Unit/Units per Month;Rated power:113 /2200 kW/r/min;
After-sales Service Provided:Free spare parts;

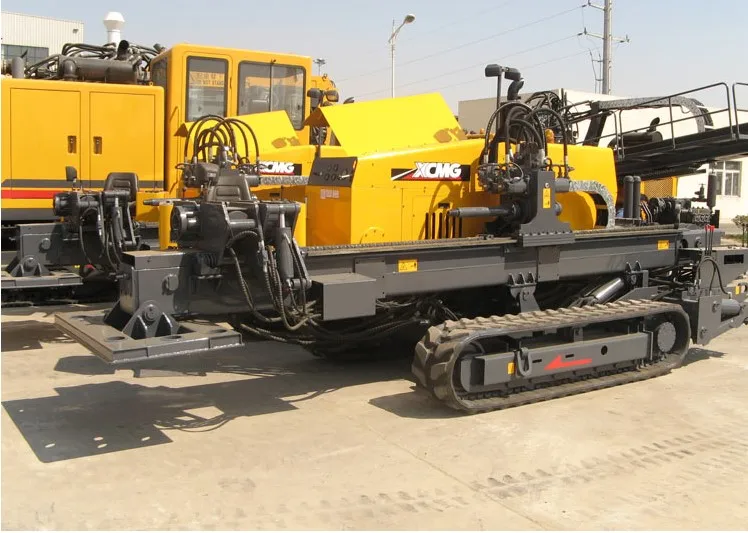

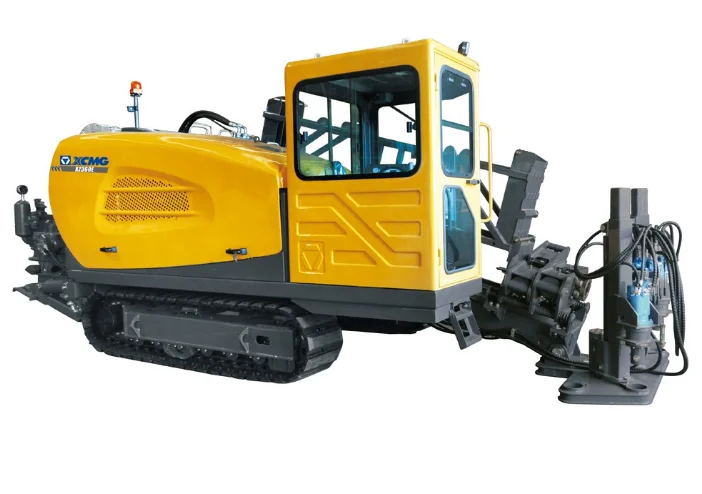

XCMG HDD 20ton XZ200 Horizontal Directional Drilling Machine

1,Hydraulic pilot control, provide comfortable operating performance and flexible regulation, first-class brand of hydraulic components to ensure the reliability of the machine hydraulic system.
2,Rack and pinion sliding, to ensure the stability of the carriage and the reliability of drive operational. Carriage floating, XCMG proprietary patented Carriage floating, floating vice technology can greatly protect the drill pipe thread, the service life of the drill pipe 30% increase.
3,Double speed carriage, drilling, dragged back when running at low speed, ensure the smooth construction.The discharge pipe light back and forth, carriage can accelerate sliding, reduce the auxiliary time, improve work efficiency.
4,Host equipped with semi-automatic pipe loading and unloading device,Hengyangmud pump,mud cleaning device,high efficiency and energy saving construction.
5,Support the diverse needs of customers, the machine can option configuration with the automatic (semi-automatic) full-automatic pipe loader, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing,mud throttling and other devices.

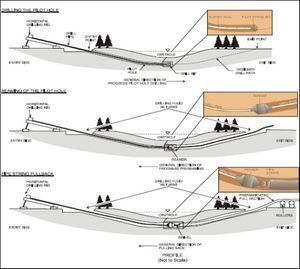

Directional boring, also referred to as horizontal directional drilling (HDD), is a minimal impact trenchless method of installing underground utilities such as pipe, conduit, or cables in a relatively shallow arc or radius along a prescribed underground path using a surface-launched drilling rig. Directional Boring/HDD offers significant environmental advantages over traditional cut and cover pipeline/utility installations. The technique is routinely used when conventional trenching or excavating is not practical or when minimal surface disturbance is required.



DescriptionUnitParameter value
EngineManufacturers /
China IIIModel QSB5.9-C150
Rated PowerkW /(r/min)113 / 2200
China IIModel 6BTAA5.9-C150
Rated PowerkW /(r/min)112/ 2200
China IIIModel QSB4.5-C160
EU Stage IIIARated PowerkW /(r/min)119/2200
Thrust-PullType Pinion and rack drive
Max thrust-pull forcekN225/225
Max thrust-pull speedm/min26
RotationType two motor
TorqueN·m6350
Max spindle speedr/min160
Loader Crance//
Max inclination angle°22
PipeDiameter × Lengthmm×mmΦ60×3000
Mud pumpMax Flow rateL/min250
Max pressureMPa8
Weightkg8500
