Small T-shirt tunnel dryer for screen printing

Supplier: Dongguan Ruida Machinery And Equipment Co., Ltd.
Region: Guangdong, China
Contact: Mr Sam Leo
Price: $1050.00 /set
Min. Order: 1 set

Click here to contact

Product details

Package Preview:	;	Key Selling Points:	Easy to Operate;
Dimension(LWH):	1800 X 970 X 1350 MM;	Video outgoing-inspection:	Provided;
Product Name:	T-Shirt tunnel Dryer;	Warranty of core components:	1 YEAR;
Type:	Drying machine;	Model:	ND1865;
Applicable Industries:	Garment Shops;	Automatic Grade:	Automatic;
After Warranty Service:	Spare parts;	Core Components:	Engine;
Local Service Location:	None;	Port:	ShenZhen&HongKong;
Machinery Test Report:	Provided;	Voltage:	220V;
Brand Name:	NEWMAN;	Place of Origin:	China;
Weight:	220kg;	Showroom Location:	United States;
Marketing Type:	Hot Product 2019;	Power:	4800W;
Supply Ability:	10.0 Set/Sets per Month;	Certification:	CE Certificate;
Warranty:	1 YEAR;	Condition:	New;
Payment Terms:	T/T,Western Union,Paypal;	Packaging Detail:	plywood case;
Heating area:	100*65cm or customized;	After-sales Service Provided:	Overseas service center available,Free spare parts;

Product Description

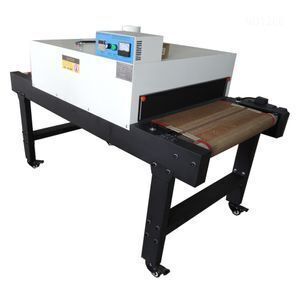

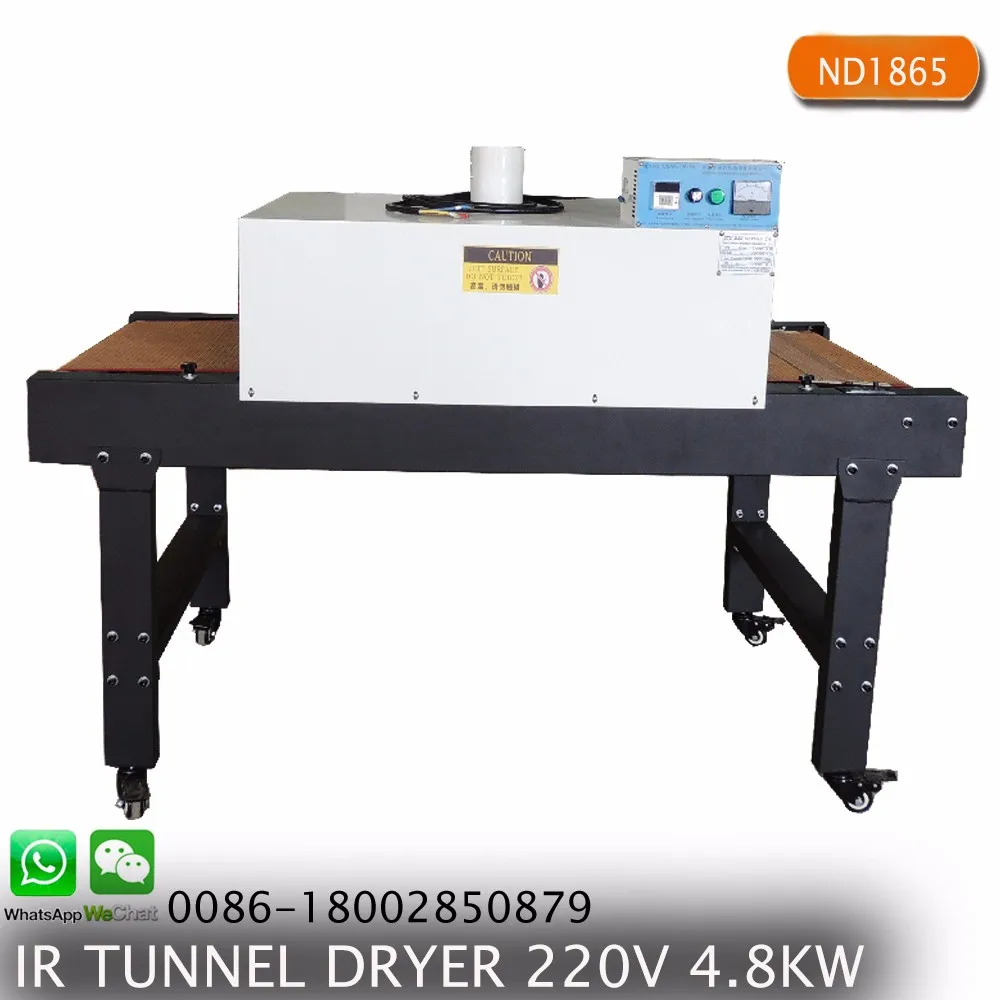

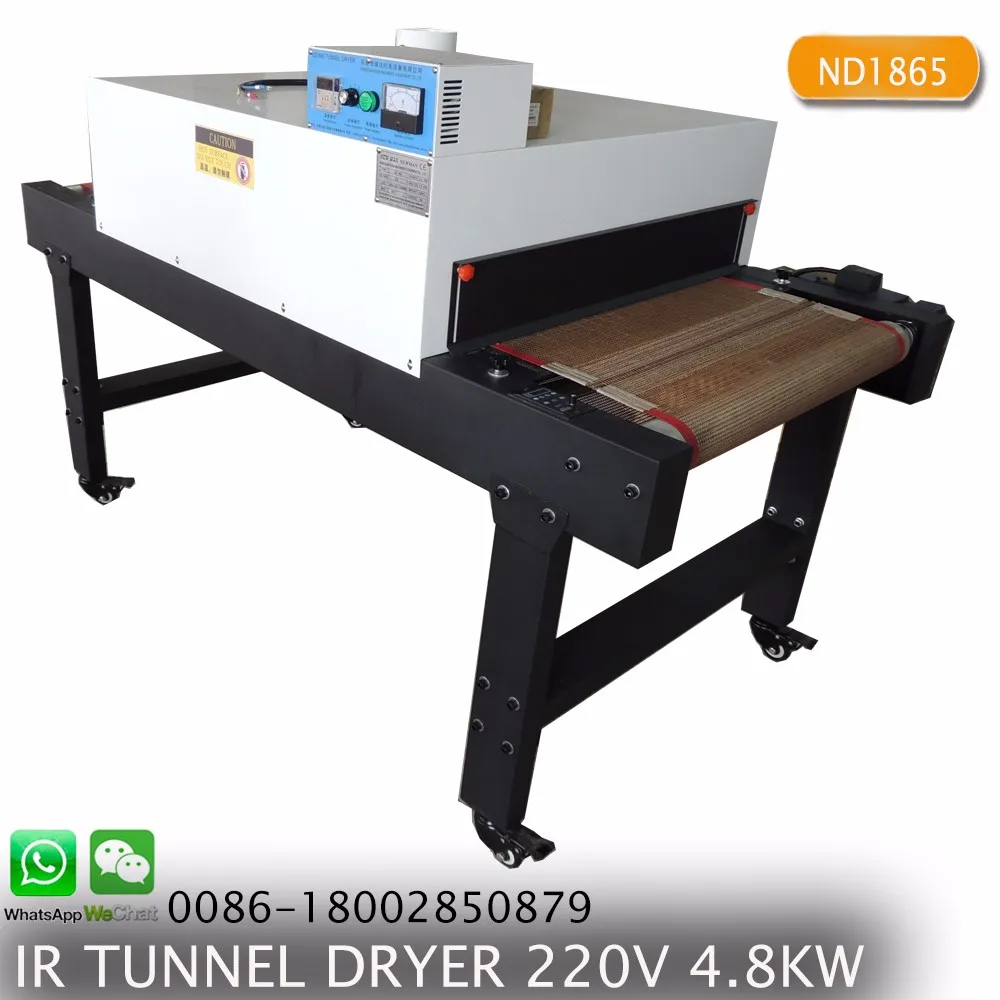

customized T-shirt belt conveyor vacuum dryer

This tunnel dryer is suitable for heating printing ink on clothes, even heat-set ink.
Nice designed structure to make sure the best drying effect.
Furnished with fire-resistant Teflon belt, efficient IR heating tube and constant heat circulation.
Adopting intelligent digital display temperature control system, temperature error within 1 centidegree.
Steady belt transport, little noise and stepless speed change.
Owning a very short warm-up time to reach operational temperature.
Energy-saving and high efficiency

Main feature:

1.All machine size be customized,we only showing some simple photos.

2.Temperture and working speed are simply and easily adjustable.

3.Digital speed meter enables operator to adjust working speed accurately.

4.The heating element is sillicon carbide tube,which has high efficienty light source to dry clothes exhaust fan elininates the scrape outside.

5.It is suitbale for drying various kinds of textile printing ink,such as plastional ink,silica gel printing ink,paste, and water based ink.

Parameters:

Model	ND1865
Heating length	1000mm
Belt width	650mm
operating belt speed	1-5meter/minute
Total power	220V 4.8KW
G.W,	200KG
Dimension	1800 X 820 X 1350 MM

1.Power:220V/4800W

2.Lamp: IR heating lamp.

3.Machine length:180CM

4.Heating area:100*65cm or customized

5.Temp range:0-250 degree

6.Pavking :1 plywood box

7.Gross weight:220KG

8.Packing dimension:188*108*73cm

9.Volume:1.48cbm

Packaging & Shipping

Package

Export Standard Wooden Case Package

Company Information

Dongguan Ruida Machinery&Equipment Co. Ltd was founded in 2011,we are engaged in the production of garments silk screen printing machine and auxiliary equipment. The machine can be applied to costume,woven,fabric,metal,paper,copybook,plastic,wood,glass,ceramic,leather and other products need flat printing and round printing .

Our products have been exported to more than 50 overseas countries and regions,and in American,France,Britain,Holland,Philippines,Malaysia,New Zealand and Dubai,has established the long-term cooperation dealer network .Also covered all over the country at the same time,the product quality,price and service has won the market recognition.

After four years of development ,we have Hundreds of product items,will create every machine with heart,and provide excellent servise for our customer .

Welcome your enquiry !
