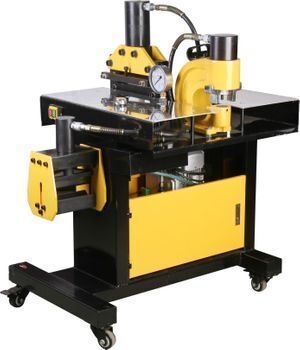

DHY-200 Three-in-one hydraulic punching bending cutting bus bar machine

Supplier: Yuhuan Changyou Hydraulic Tools Co., Ltd.
Region: Zhejiang, China
Contact: Mr Lin
Price: $680.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 YEAR;	MOQ:	1set;
Processing Material:	Copper;	Brand Name:	CHANGYOU;
Weight:	230kg;	Brand:	CHANGYOU;
Packaging Detail:	1 set / wooden case busbar process machine;	Single package size:	97X77.8X129.8 cm;
Package:	Wooden Case;	Place of Origin:	Zhejiang China;
Machine Type:	Hydraulic Scrap Shears;	outlet force bender:	20ton;
Color:	yellow;	Type:	Hydraulic Cutting Tools;
Certification:	CE ISO;	Selling Units:	Single item;
After-sales Service Provided:	Video technical support;	Applicable Industries:	Building Material Shops,Home Use,Retail,Construction works ,Energy & Mining;
Single gross weight:	206.0 KG;	Name:	busbar process machine;

Model	DHY-200D
Cut off range	Copper-aluminium row width<200 mm, thickness 3-12 mm
Bending range	Copper-aluminium row width<200 mm, thickness 3-2 mm
Punching range	Copper-aluminium row width<200 mm, thickness 3-12 mm
Standard punching die	φ7,φ9,φ10.5,φ13.8,φ17,φ20.5mm
Distance from hole center to edge	110mm
Input voltage	220V/380V
Rated working oil pressure	700Kgf/cm210000Psi
Weight	200Kg

Model	DHY-150D
Cut off range	Copper-aluminium row width<150 mm, thickness 3-10 mm
Bending range	Copper-aluminium row width<150 mm, thickness 3-10 mm
Punching range	Copper-aluminium row width<150 mm, thickness 3-10 mm
Standard punching die	φ7,φ9,φ10.5,φ13.8,φ17,φ20.5mm
Distance from hole center to edge	95mm
Input voltage	220V/380V
Rated working oil pressure	700Kgf/cm210000Psi
Weight	170Kg

The following products are selected with the following parameters
Processing range of flat bending	Copper-aluminium row width 40,50,60,80,100,125; Copper-aluminium row thickness 4,6,8,10
Processing range of embossing machine	Copper-aluminium row width is less than 150mm and thickness is less
300 hydraulic clamp range	Copper terminal 16-300m;Aluminum terminal 25-240m
500 hydraulic clamp range	Copper terminal 16-500m;Aluminum terminal 16-400m

FAQ

1.What is your payment terms?
1)T/T 2)L/C

2.What is your shipping way ?
Express (DHL,Fedex,TNT),By air ,Or Sea. We will choose one shipping way to suit customers request .

3.How long is your machine warranty?
Warranty of our product is one year,but artificial damage and incorrect use is not included.

4.What is your delivery time ?
It depends on your order. Normally3- 7days for samples, 30-45days for standard, 30-60 days for customized.

5. How do you guarantee your quality ?
Firstly, we do quality test during every process. We produce most components by ourselves, it is started from cutting raw material ,machining roughly in the first step. casting , forging , punching , heat treatment , finish machining , painting , assembling and finally packing , we will spot check for each steps.
Secondly, we will collect all comments on our products from customers in time. And try our best to improving quality all the time.
