Construction machine 13kn rammer tamper for ground surface

Supplier: Shanghai Formac Machinery Co., Ltd.
Region: Shanghai, China
Contact: Ms Nichole ZHOU
Price: $765.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Package Preview:	;	Port:	Shanghai, Ningbo;
Brand Name:	FORMAC;	Engine:	HONDA GXR-120, ROBIN EH-12;
Fuel Tank Capacity:	3.0L;	Power(W):	3.0kw;
Shoe size:	280*330mm;	Impact force:	14kn;
Packaging Detail:	steel frame with carton box, or wooden box;	Applicable Industries:	Construction works ;
Supply Ability:	1000 Piece/Pieces per Month;	Place of Origin:	Shanghai China;
Air filter:	Double air filter;	Jumping Stroke:	40-65mm;
Condition:	New;	Special feature:	MIKASA design;
Voltage:	NA;	Model name:	FTR-75H;
Engine type:	Pretrol or Diesel;	Percussion Rate per min:	450-665;
Weight:	75kgs;	Warranty:	2 years;
Certification:	EPA,CE, GS;	Dimension(LWH):	750x440x1030;
After-sales Service Provided:	Video technical support,Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;	Payment Terms:	L/C,D/A,D/P,T/T;

Product Description

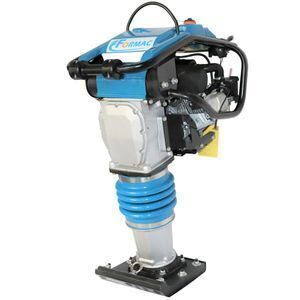

Construction machine 13kn rammer tamper for ground surface

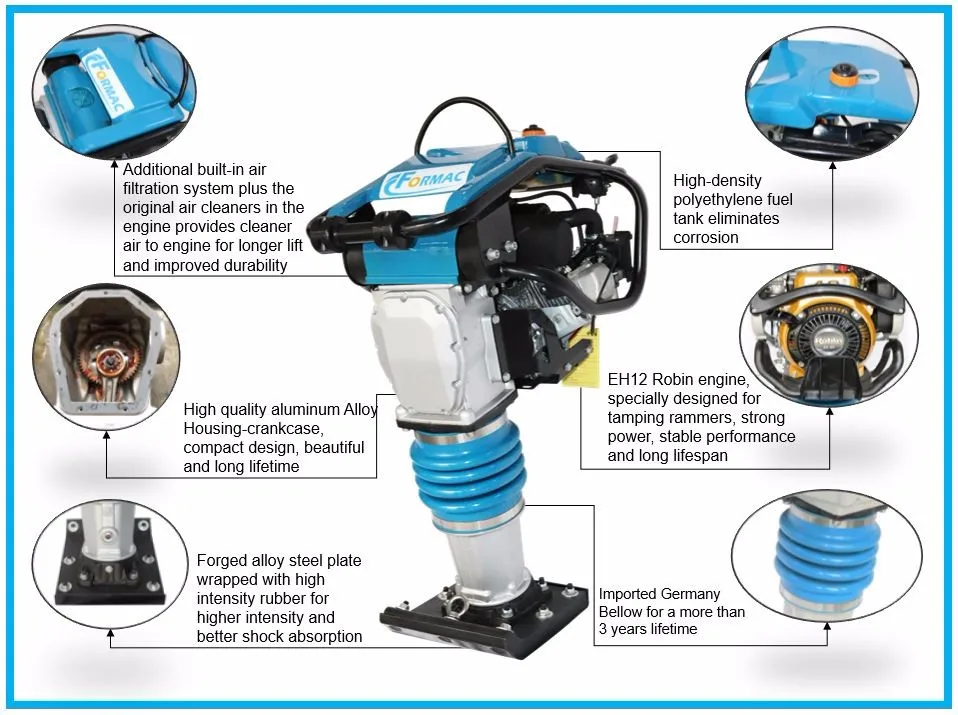

-- MIKASA-TYPE tamping rammer with Robin EH12 engine

-- Aluminum alloy body for lighter weight and better thermal diffusivity.
-- 20CrMnTi alloy special heat treated gears for higher intensity and higher wearing resistance.
-- 65Mn steel big and small springs for a stronger and higher elasticity.
-- Imported Germany Bellow for a more than 3 years lifetime.
-- Powder metallurgy clutch for better transmissibility and higher wearing resistance.
-- Forged alloy steel plate wrapped with high intensity rubber for higher intensity and better shock absorption.
-- High-density polyethylene fuel tank eliminates corrosion.
-- Timing hand shank, strong, convenient and comfortable.
-- EH12 Robin engine, specially designed for tamping rammers, strong power, stable performance and long lifespan.
-- High quality aluminum Alloy Housing-crankcase, compact design, beautiful and long lifetime.
-- Additional built-in air filtration system plus the original air cleaners in the engine provides cleaner air to engine for

longer lift and improved durability.
-- High quality shock absorber could absorb vibration availably and the operator feels comfortable.

Technical Parameters

MODEL	FTR-85M	FTR-75A	FTR-75B	FTR-75H
Engine	Petrol, Robin EH-12	Petrol, Robin EH-12	Petrol, Robin EH-12	Petrol, Robin EH-12
Max. Output kw(hp)	3.0(4.0)	3.0(4.0)	3.0(4.0)	3.0(4.0)
Impact Force kN	16	16	16	13
Jumping Height mm	40-85	40-80	40-80	40-65
Impact Frequncy per Mimute	640-680	640-670	650-680	450-665
Shoe Size mm	330x285	330x285	330x285	340x285
Fuel Tank liter	3.5	2.8	2.8	3.5
Dimension mm	430x800x1080	440x750x1030	445x770x1020	480x780x1080
Weight kg	83	75	75	75
