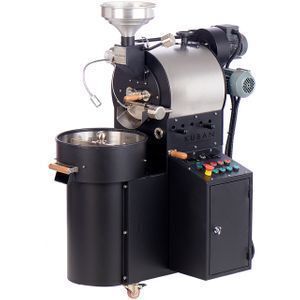

High Quality Gas & Electric Coffee Roaster/1,5 KG Coffee Roasting Machine/Professional Countertop Roasters for Coffee Shops

Product details
Place of Origin:Izmir Turkey;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
Warranty of core components:2 years;Raw material:Coffee Bean;
Core Components:PLC,Engine,Bearing,Gearbox,Motor,Gear;Marketing Type:New Product 2020;
Port:Turkey;Video outgoing-inspection:Provided;
Heating Method:Thermal Transfer;Supply Ability:100.0 Pallet/Pallets per Month;
Batch Capacity:1,5 kg;Dimensions (W-H-D) cm:87x127x115 cm;
Weight:155 kg,155 kg;Warranty:2 years;
Dimension(L*W*H):87 x 115 x 127 cm;Brand Name:Kuban;
Package Preview:;Applicable Industries:Hotels,Food & Beverage Factory,Restaurant,Coffee Shops;
Showroom Location:Turkey;Local Service Location:Turkey;
Heating Type:LPG - LNG - Naturel Gas - Electric;Certification:CE-SASO;
Burner Power (KW/h):10 KW;Gas Consumption:LPG: 0.72 m^3 /NG: 1.04 m^3;
Customization:Available;Voltage:110-220-380V / 50-60 Hz,220;
Application fields:Snack food factory,Beverage Factory,Coffee Shop;Power(W):480 - 3000 W;
Payment Terms:L/C,T/T,Western Union,Pay Pal;Machinery Test Report:Provided;
Automation:Manuel - PLC;After-sales Service Provided:Field maintenance and repair service;

















Product Description



The point where your aesthetic meets with technology ...

It is a shop type coffee roaster and offers 500 gr. kg to 1,5 kg coffee roasting capacity.Thanks to its user-friendly design, easy of use, and practicality, it also attracts great interest from newly-opened third-wave coffee houses.

This machine is made of heat-resistant and high-quality raw materials that are readily available all around the world.

Saving on time and energy with simultaneous roasting and cooling.


Adjustable RPM of Drum
Drum RPM can be set from 30 rpm to 70 rpm


Single or Double Wall Drum

Kuban roaster drums are made of optional double or single wall for consistency of roasting profile.

Adjustable Flame Level
During process of coffee profile, you can adjust the flame level of the roaster.

Heating Source
LPG-LNG-Natural Gas-Diesel-Electric

Programmable Logic Controller (PLC)
Kuban offers PLC touchscreen controller with its software as optional with the machines.
User can create their own unique roasting profile.

Control Types
Kuban Roasters are produced with manual, semi-automatic and fully automatic.

Plug & Play Feature
PLC controller has “Plug & Play” feature that is compatible with advanced roasting softwares for PC.

Customization
Our roasters are customized in terms of colour, finishing, brand name, electric (voltage and frequency), heating source and language preferences. kg Coffee Roasting Machine, Professional Coffee Roaster, Electric Coffee Bean Roasting Machine, Coffee Shop Roasters KBN1005

Product Details



TECHNICAL SPECIFICATIONS

BATCH CAPACITY

1,5 KG

DIMENSIONS (W-H-D) CM

87x127x115

WEIGHT (KG)

155 KG

VOLTAGE

110 – 220 – 230 – 380

FREQUENCY

50 - 60 HZ

HEAT SOURCE

LPG - NATURAL GAS - LNG

HEATING SYSTEM

THERMAL TRANSFER - HOT AIR THERMAL TRANSFER

NUMBER OF MOTORS

4

BURNER POWER (KW/H)

10 KW

GAS CONSUPTION-LPG 0.72 m^3
GAS CONSUPTION-NATURAL GAS 1.04 m^3

GAS CONNECTOR

1/2

AUTOMATION

Optional PLC System



STANDARD SPECIFICATIONS

GAS SECURITY SYSTEM

SENSATION OF  CHANGING GAS PRESSURE

EMERGENCY STOP BUTTON

CLOSING OF ALL  THE SYSTEM IN EMERGENCY

HEAT CONTROL SYSTEM

DIGITAL HEAT  CONTROL SYSTEM

SURFACE WINDOW

SMALL WINDOW TO  OBSERVE ROASTING

SAMPLE BUTTON

PROVIDES  PRODUCT CONTROL

COOLING FAN

POWERFUL FAN  SYSTEM

VOICE WARNING

VOICE WARNING SYSTEM

GAS CONTROL

CE CERTIFIED SYSTEM

WORKING

QUIET AND EASY  TO USE



Alternative Products






Packaging & Shipment

The product would be in strongbox. Another strong box also contains the other strong box. Thereby, your product would be packed twice.





Payment





About Us



Our company, Kuban Makina, was established in 1996 by Ahmet Demirden in Izmir, Turkey. When our passion for coffee became irresistible, we decided to turn this love into a business and started to produce “coffee processing machines and equipment” for coffee-lovers all around the world.


We have expanded our product range since the beginning of our operations, and now, we serve both the domestic and international markets. Nearly 25 years of experience in the coffee industry has brought us mastery. Moreover, we constantly improve our products and services on the basis of customer satisfaction with our dynamic and disciplined team.


As the KUBAN Family, we represent our country at many annual international fairs on coffee and coffee equipment. In addition to in-house R&D activities, we try to set a high standard of quality in the industry by keeping up with technological innovations and keeping the bar high at all times. We pioneer this passion by using high-quality raw materials in all of our products that we produce. We stand out with our high-performance products, which are specially combined by our expert engineers. Our machines can be customized to customer demands.


As of 2020, KUBAN renews its brand image and achieves a more dynamic, powerful, contemporary, and institutional structure. “Coffee Processing Master” is Kuban’s official and certified brand slogan.





FAQ



1-) When would my order be arrived?



We also serve you support for transportation in the framework of high-qualified and safety shipment principles.



2-) How do you pack my product for safe transportation?



Your order would be meticulously packed in strong box against every external factors that may damage. Due to every contrary situation, our shipments would be insured according to your wish. By the conscious of yours value, we would offer you support in every freight process as well.



3-) Which products are included in warranty?



Our grinders are included warranty for 24 months.



4-) In which situations would the product be out of warranty?



We supply warranty only for coffee grinders.



-Trying to re-grind output grinded material.

-Liquid damages

-Trying to grind except of coffee beans



5-) Can I obtain spare parts?



We also supply spare parts of our products. In addition, in order to your demand; we can also support you by visually to change them by yourself easily.



6-) Which payment methods do you accept?



You can make payment via mail order, money order or swift.
