Electric vehicle inverter motor controller

Supplier: Jiangsu Gtake Electric Co., Ltd.
Region: Guangdong, China
Contact: Mr Richard Fan
Price: $999.00 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Payment Terms:	L/C,T/T,Western Union,Negotiate;	Applicable motor:	Synchronous / asynchronous motor;
Input voltage range:	400V DC ~ 750V DC;	Net Weight:	13.5±0.5 kg;
Packaging Detail:	carton, plywood crate;	IP grade:	IP67;
Port:	Shenzhen;	Type:	Electric vehicle motor controller;
Peak current:	320A / 410A / 525A;	Efficiency:	≥98%;
Supply Ability:	10000 Piece/Pieces per Month;	Torque respond time:	< 5ms;
Cool method:	Water cooling;	Ambient temperature:	-40 ℃ - 65 ℃;

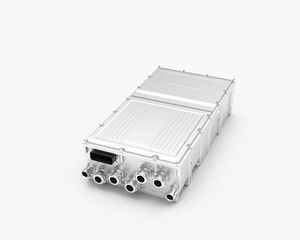

EV/HEV traction motor controller-G03 frame
Brand: GTAKE
Certificate: CE, RoHS

Model	Applicable motor	Input voltage range	Peak current	Low-Voltage range
KTZ54X32SAA**	Synchronous / asynchronous motor	400V DC ~ 750V DC	320 A/1min	9 ~ 36V DC
KTZ54X41SAA**		400V DC ~ 750V DC	410 A/1min	9 ~ 36V DC
KTZ54X52SAA**		400V DC ~ 750V DC	525 A/1min	9 ~ 36V DC

Advantages

Thanks to sophisticated engineers, scientific producing workmanship, rigorous quality control systems and management team, GTAKE EV motor controllers are equipped with advanced features, some of which are listed as below:

01	All GTAKE electric vehicle motor controllers meet the standards GB/T 18488.1, GB/T 2423.17, GB14023.4, and GB/T 17619.4.
02	Quick torque respond time: <5ms; Torque control accuracy: ±5%.
03	Key components and parts are specialized for vehicles, with fast response and better performance
04	Big power density, compact size and light weight. On the premise of ensuring the power, this can effectively reduce the weight of vehicle body.
05	Rational placement, delicate material selection, and advanced manufacturing engineering make the IP grade up to IP67 with the lightest weight. Well-designed frames and thickened conformal coating protect the products against harsh environment.
06	GTAKE EV/HEV drives support terminal control and CAN bus control. The CAN node hardware connection can be realized by GTAKE drives directly, with the transmission baud rate up to 1 Mbps, real-time, safe and reliable.
07	When the vehicle is geared forward, but there is no step-on gas and brake signal, it could run at the set low speed with a matching output torque according to its load and slope degree of the road, shunned from unexpected slope slipping.
08	Different filtering tactics in ACR make the output torque smoother with quick response, improving the comfortability for driver and passengers dramatically.
09	GTAKE motor controllers are equipped with capability of protection on short-circuit, over-current, over-voltage, overheating, over-load, and encoder disconnection, etc. Likewise, the battery protection can be well programmed and the controller can adjust feedback energy greatly.
10	Ambient temperature: -40°C~65°C;

Features

Power Supply
Rated input voltage	540V DC
Input voltage range	400V DC ~ 750V DC
Auxiliary low-voltage power supply	9V DC ~ 18V DC / 18V DC ~ 36V DC

Output Data (U, V, W)
Output peak current	320A / 410A / 525A
Duration	1 min
Output frequency range	0~1000 Hz

Applicable Motor
Type	Synchronous / asynchronous motor
Position sensor	Resolver
Temperature sensor type	PT100 / PT1000 / NTC
Temperature sensor channel	2

CAN Communication
Terminal resister	Optional
Protocol	Customized

Mechanical parameter
Weight	13.5±0.5 kg
Dimension	W×H×D(mm):244×488×110

Ambient
Vibration	GB/T18488.1-2015 5.6.4.1, 5.6.4.2 and GB/T 28046.3-2011
Humidity	Relative humidity 5% - 95 %. No condensation
Ambient temperature	-40ºC - 65 ºC
Altitude	0 - 2,000 m
Altitude	Rated output current derated 1% every 100 m above 1,000 m
Storage temperature	-40 - +85 ºC
Efficiency	≥98 % at rated working point
IP grade	IP 67
Cooling method	Water cooling

Applications

GTAKE EV controller offers speed control and torque control, adaptable to all kinds of electric passenger cars, logistics trucks, mini vehicles, special vehicles, electric bus, electric motorcycle, etc.


Mini Vehicle		Logistics Van		Passenger cars


Mini Bus		12m Bus		More …

Why choose GTAKE electric vehicle motor controller?

In the trend of advocating smart and simple automation, environmentally friendly products, value-added solutions, GTAKE, as one of the world's leading drive manufacturers aggressively investing in R&D, production, and continuous quality improvement, is well positioned to provide its customers with technology-driven, performance-outstanding products such as VFDs, wind power converters, servo drives, HEV/EV drives, helping its customers save energy and increase industrial productivity with sustainability on the one hand, and enhancing their entire value-chain quality, delivery, and services on the other hand.

Production

In production, rigorous quality control is implemented on components, circuit boards, and the finished goods, assuring products without defects.

GTAKE VS Other brands

Performance	Common brands	GTAKE
Applicable motors	Synchronous motors	Asynchronous /synchronous motors
Petrol consumption *¹	17.0 L / 100 km	15.7 L / 100 km
Power consumption *²	0.993 kWh/km	0.878 kWh/km
Mileage *³	220 km	240 km
Peak torque *⁴	1250 Nm	1470 Nm
Slope distance *⁵	> 20 cm	< 10 cm
IP rating	IP 65	IP 67
Ambient temperature	-10-40ºC	-40-65ºC
Customized features (software and/or hardware)	Unprocurable or no experience	Procurable with rich experience

Note:

*¹	Taking TM2100Nm+IM800Nm on 12m hybrid bus as an example.
*²	GTAKE + Asynchronous motor PK Competitor + PMSM
*³	30kWh battery + 18kW asynchronous motor used at 4.2m logistics vehicle.
*⁴	GTAKE can output higher output torque with the same motor.
*⁵	Anti-slip function test. Test condition: 25% slope
All of this data is collected from actual projects.

Packaging and logistics

All drives are well packed before shipment, fit for air shipment, sea transportation, and express delivery. Customers are able to call its own nominated forwarder or consult GTAKE logistics department for worldwide shipment services.

* Low-power inverters are packed in cardboard box, and others are in plywood cases.

* Plenty of transportation procurable globally in accordance with customer demand or GTAKE expertise.

GTAKE EV motor controllers are able to adapt to electric light EV, passenger car, Hybrid EV, electric bus, logistic van, electric motor cycle, electric boat, electric crane, digger and etc.

Please leave us an inquiry for more details of our EV controller, like information of the model numbers, technical data, applicable application, pricing, warranty terms, lead time and/or customized functionality.
