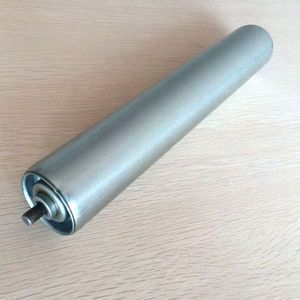

Heavy Duty Gravity Roller Idler Steel Conveyor Roller

Supplier: Baoding Huayun Conveyor Machinery Co., Ltd.
Region: Hebei, China
Contact: Ms Sophie Ran
Price: $1.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

tube Material:	carbon steel Q235 equal to S235JR sHAFT(DIN);	length:	150mm-3500mm;
advantage:	baoding roller factory direct;	Payment Terms:	L/C,T/T,Western Union,paypal;
Place of Origin:	Hebei China;	Port:	Xingang/Shanghai;
Supply Ability:	90000 Piece/Pieces per Month;	Applicable Industries:	Energy & Mining;
certification:	CE,ISO,BV,SGS,IKA,ETC;	Shaft:	Dia 30mm 45#steel (GB) equal to C45 (DIN);
Packaging Detail:	standard wooden box or as your requirement for Heavy Duty Gravity Roller Idler;	bearing brand:	C&U, HRB,SKF or as requirements;
Brand Name:	huayun;	Bearing:	6204/6205/6305/6306/6307/6308 plastic bearing housing;
condition:	end cup of o belt wheel roller;	type:	Heavy Duty Gravity Roller Idler;
color:	blue/yellow/red or as buyer's requirements;

Heavy Duty Gravity Roller Idler Steel Conveyor Roller

Product Description

Baoding Huayun factory stainless steel conveyor roller:

Features:

Pipe - steel Z/P stainless steel Aluminium PVC

Diameter(mm): 20 25 38 48 50 60 63.5 76 80 89 108 133 159

Thickness(mm):1 1.2 1.5 2.0 2.5 3 4

Shaft diameter(mm) - 6 8 10 12 15 11hex 17 20 25

Bearing - 6001 6002 6003 6004 6005 6202 6204

Description	stainless steel conveyor roller
Cover end type	galvanized steel / plastic
Installation method	Spring loaded/female thread/flat milling
Tube material	Steel, zinc-plated, stainless steel, aluminium
Tube diameter	18/25/38/50/60mm
Shaft material	high quality carbon steel
Shaft diameter	6/8/12/15mm
Bearing housing	steel/galvanized steel
Bearing type	Precision ball bearing
Ground sleeve	polyamide
Temperature	-0 ~ +80 centigrate degree
Appliation	Used for airport conveyor parts

Different kinds of stainless steel conveyor roller:

About roller,we can make gravity conveyor roller,steel conveyor roller,driving roller,light middle duty conveyor roller,o-belt tapered sleeve roller,gravity tapered roller,polymer sprocket roller and so on.

The certificates for stainless steel conveyor roller:

stainless steel conveyor roller package:

our rollers are packed in standard wooden box or as per your specific requirements.

Huayun stainless steel conveyor roller customers :

Baoding Huayun Conveyor Machinery Co., Ltd, steel roller with high quality, certificated by the ISO9001/2008 and Safety Certificate of Approval for Mining Products, exported to USA, Russia, Belgium, Australia, New Zealand, South Africa, and so on.
