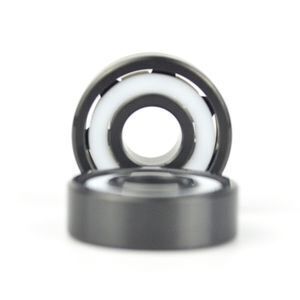

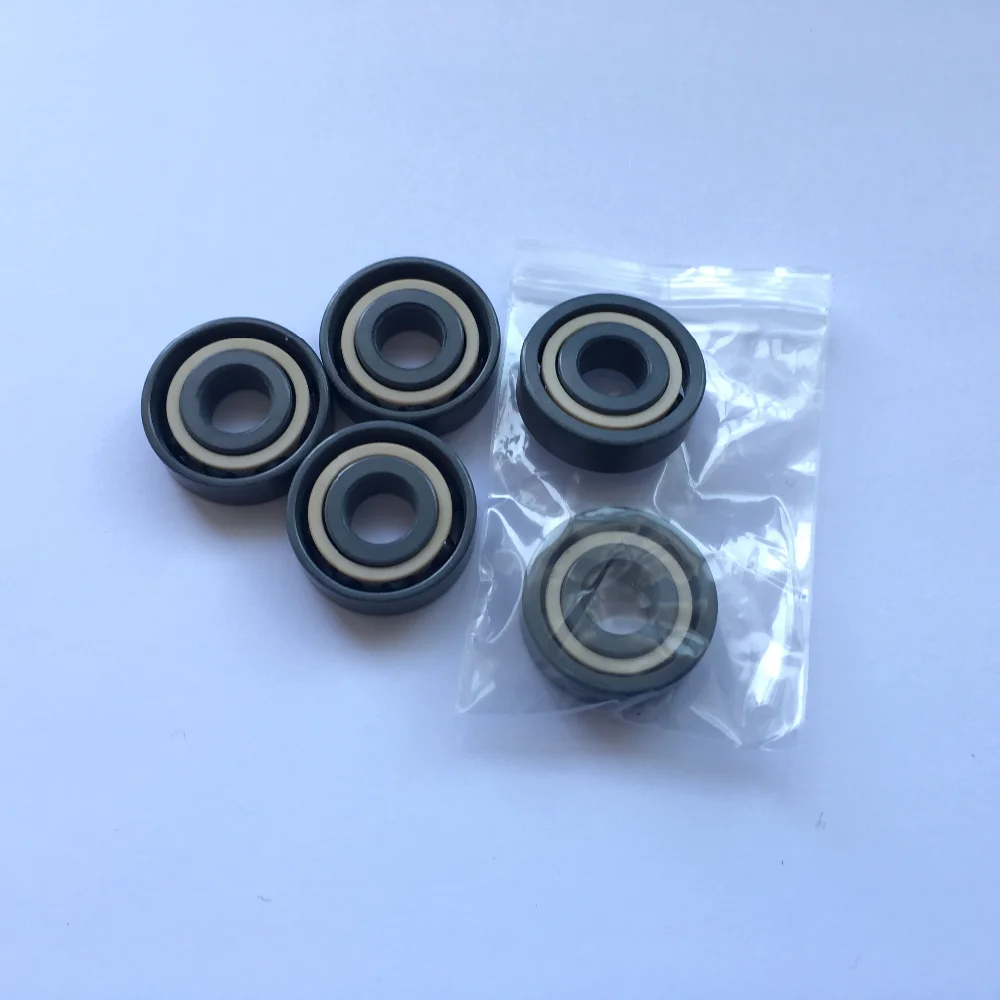

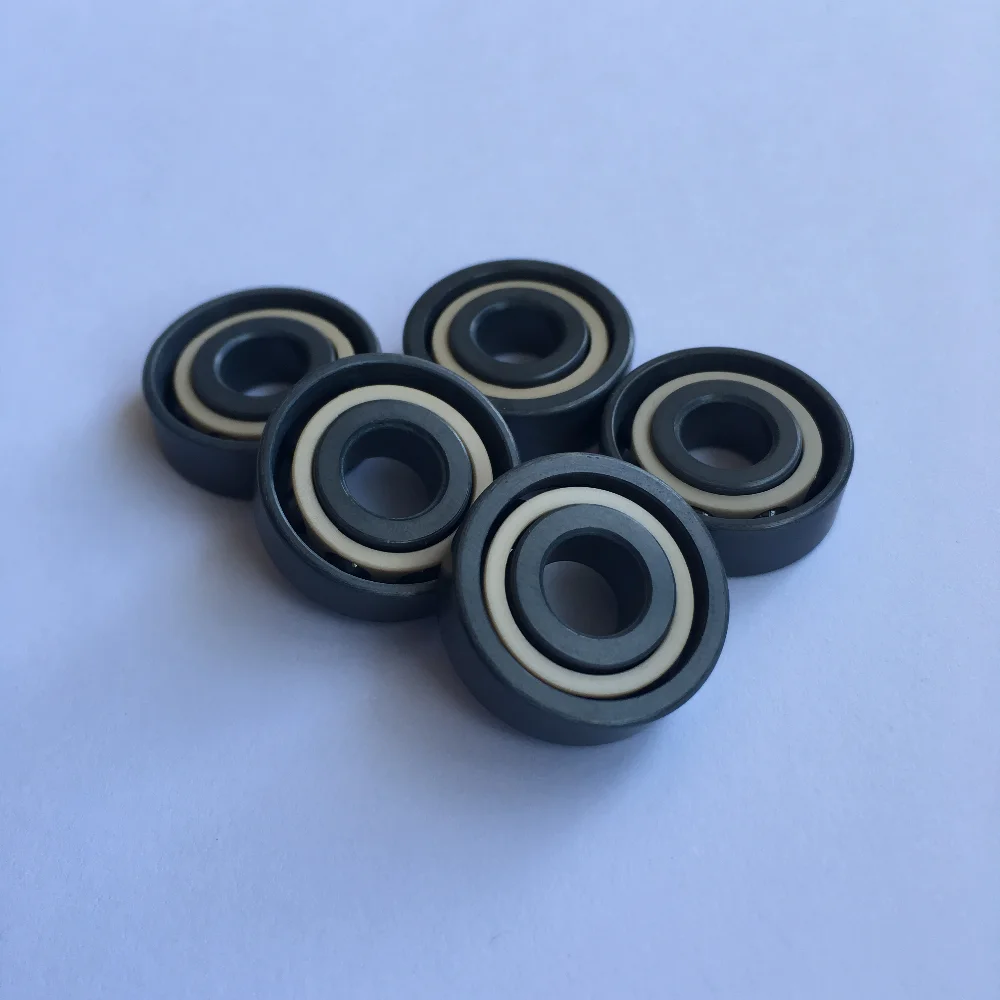

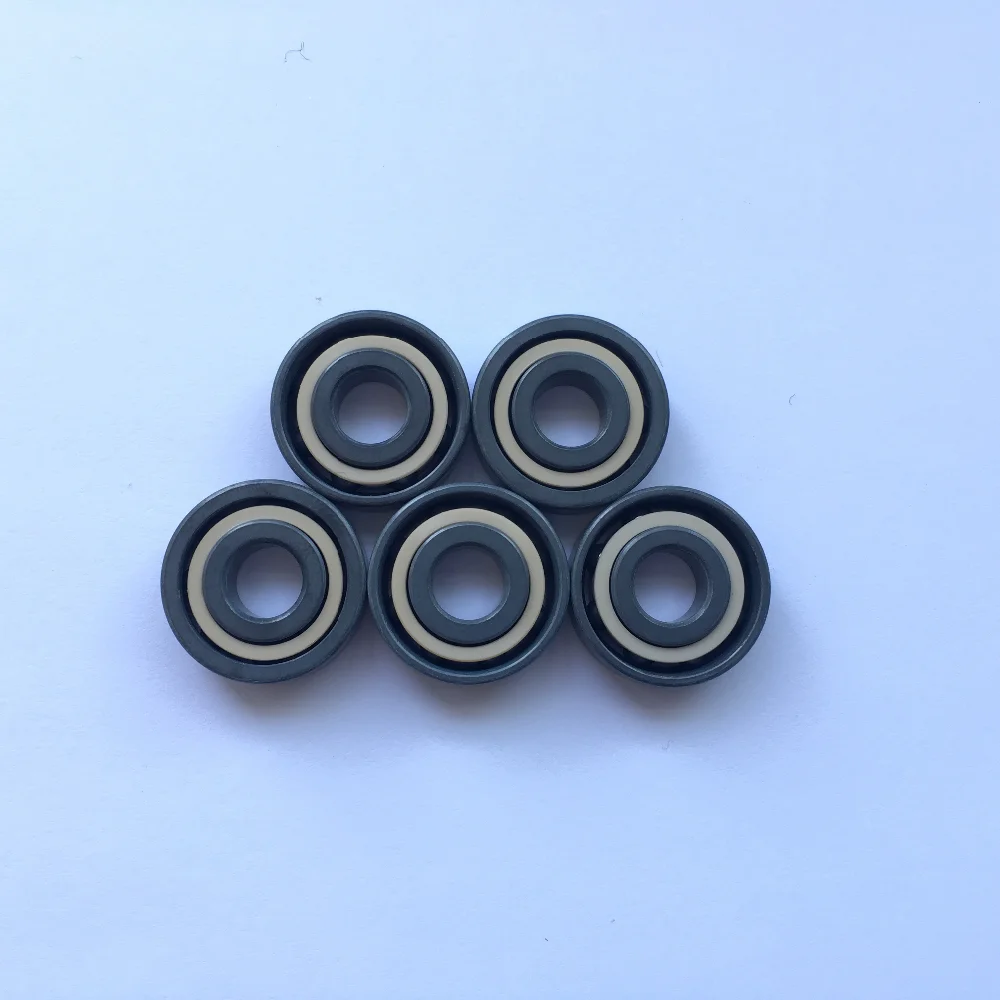

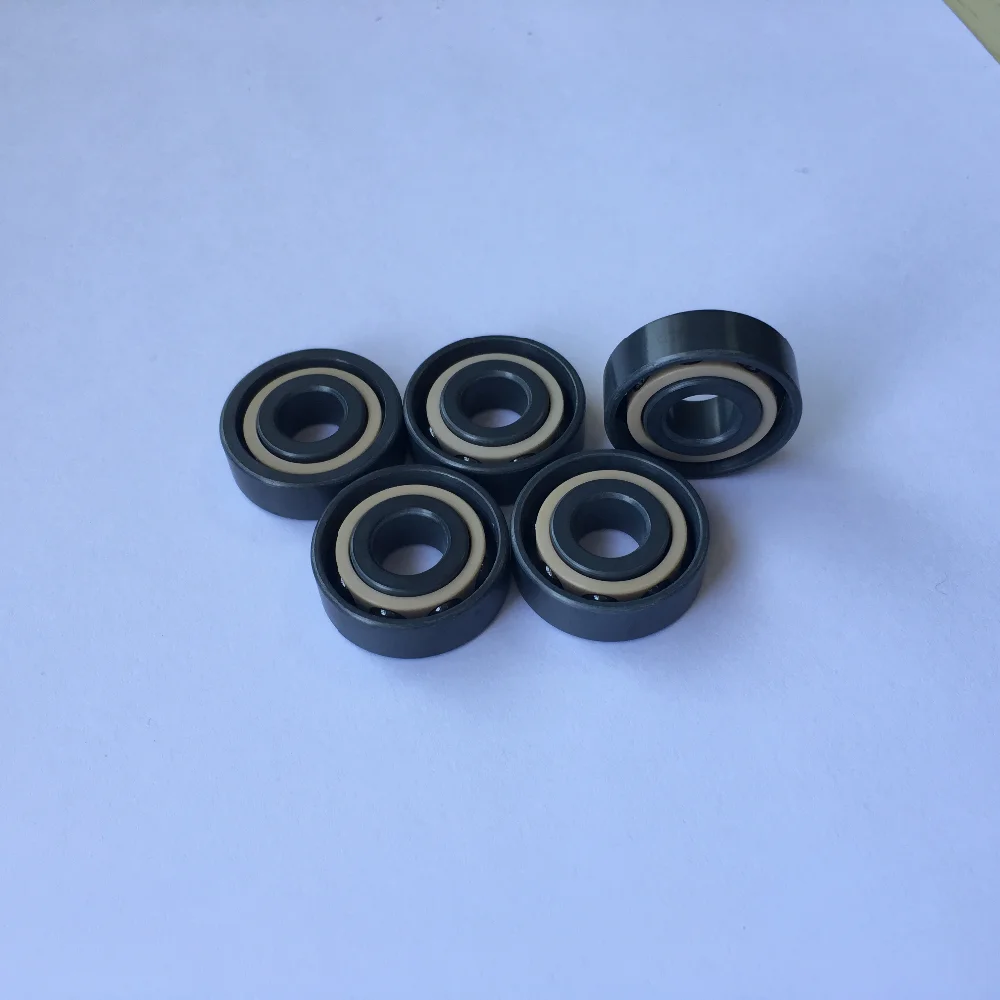

High speed Full Si3N4 ceramic bearing 608 8x22x7mm

Supplier: Xinzhou Bearing Industrial Inc.
Region: Shanghai, China
Contact: Mr Colin Chen
Price: $7.20 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Material:	Full ceramic si3n4;	Supply Ability:	5000 Piece/Pieces per Month 608 bearing;
Brand Name:	XZBRG;	Place of Origin:	Zhejiang China;
Packaging Detail:	Standard package ,such as on pallet or in cartons or by customer's request;	Type:	Ceramic Ball;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal/Ria Payment;	Package Preview:	;
Precision Rating:	ABEC-1(P0);	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Color:	Black;	Material of Cage:	PTFE PEEK Nylon;
Retainer:	PTFE PEEK PA66;	Lubrication:	Dry,self-lubricated;
Cage:	PEEK;	Port:	Shanghai, Ningbo,Dalian;
Name:	High speed Full Si3N4 ceramic bearing 608 8x22x7mm;	Model Number:	608;
Application:	Food industry/Oil industry;	Seals Type:	Open;

Overview

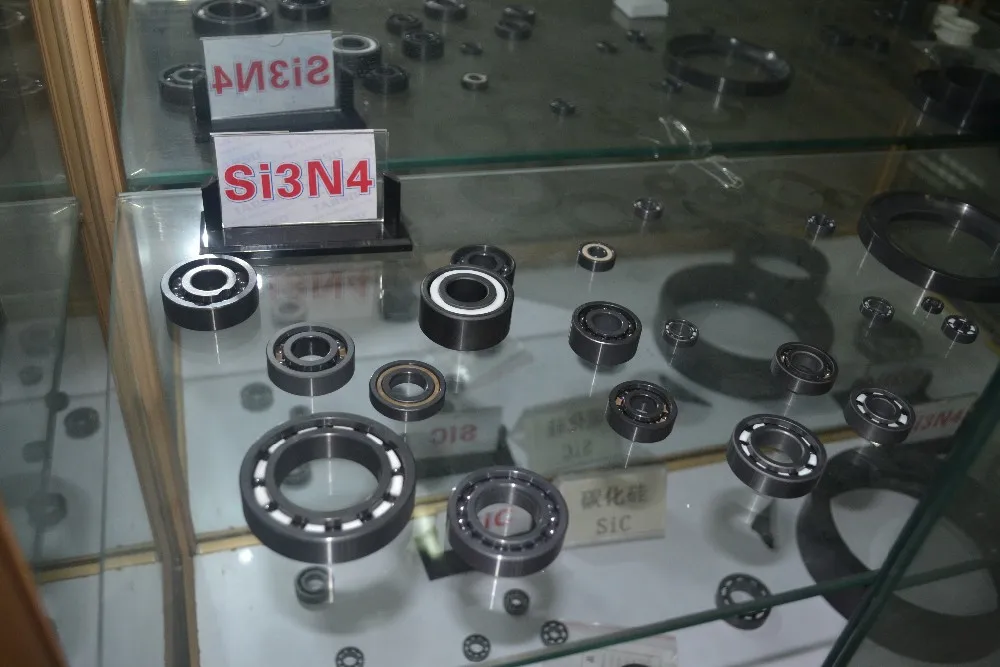

Silicon Nitride Ceramic (Si3N4)

Full ceramic bearing made with Silicon Nitride have excellent performance as special electrical and magnetism,wear and corrosion resistance,lubrication and maintaince free when working,

especial high and low-temperature application,etc.,could be used in awful environment and specially condition

Electrical insulation and non-magnetism

Good rolling fatigue performances

Feature

Product Name	High speed Full Si3N4 ceramic bearing 608 8x22x7mm
Material	Both races ans balls are made of full ceramic Si3N4
Color	Black
Grease	Dry,Self-lubricated
Cage	PEEK Other chooses: GFRPA66-25,Phonemic Textiles Tube,etc.White PTFE(Teflon)
Dimension	8x22x7mm
Magnetism	None
Balls quantity	8 pcs
Used	Alkali and Acid and other hostile environment and special application

Higher temperature

Ceramic maintains mechanical properties at high temperature, so full ceramic bearing can be used at elevated temperature

Corrosion resistant

Full ceramic bearing are more suitable for chemical industry application

Temperature-variation

Because thermal expansion co-efficiency of ceramic are smaller than metal, so the change of clearance of full ceramic bearing is smaller than that of metal bearing

Work under poor lubrication

Because ceramics are self-lubrication. Full ceramic bearing could be used at high-vacuum environment

Prevent electrical arcing

Because ceramics is not electrical conductor

Magnetic environment

Because ceramics do not respond to magnetic forces

Specifications

Bearing Part No.	Boundary Dimensions			Mass(KG)
Bearing Part No.	ID(mm)	OD(mm)	Width(mm)	ZrO₂	Si₃N₄	Plastic	440C
6000	10	26	8	0.014	0.0075	0.0035	0.018
6001	12	28	8	0.017	0.0092	0.004	0.019
6002	15	32	9	0.024	0.013	0.006	0.0031
6003	17	35	10	0.032	0.017	0.008	0.041
6004	20	42	12	0.052	0.028	0.013	0.068
6005	25	47	12	0.061	0.033	0.015	0.079
6006	30	55	13	0.089	0.05	0.022	0.116
6007	35	62	14	0.12	0.06	0.029	0.15
6008	40	68	15	0.15	0.08	0.037	0.19
708	8	22	7	0.0093	0.005	0.0023	0.012
