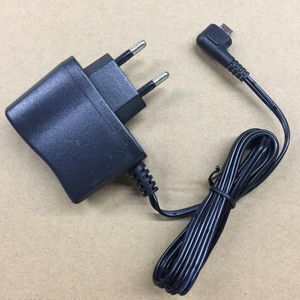

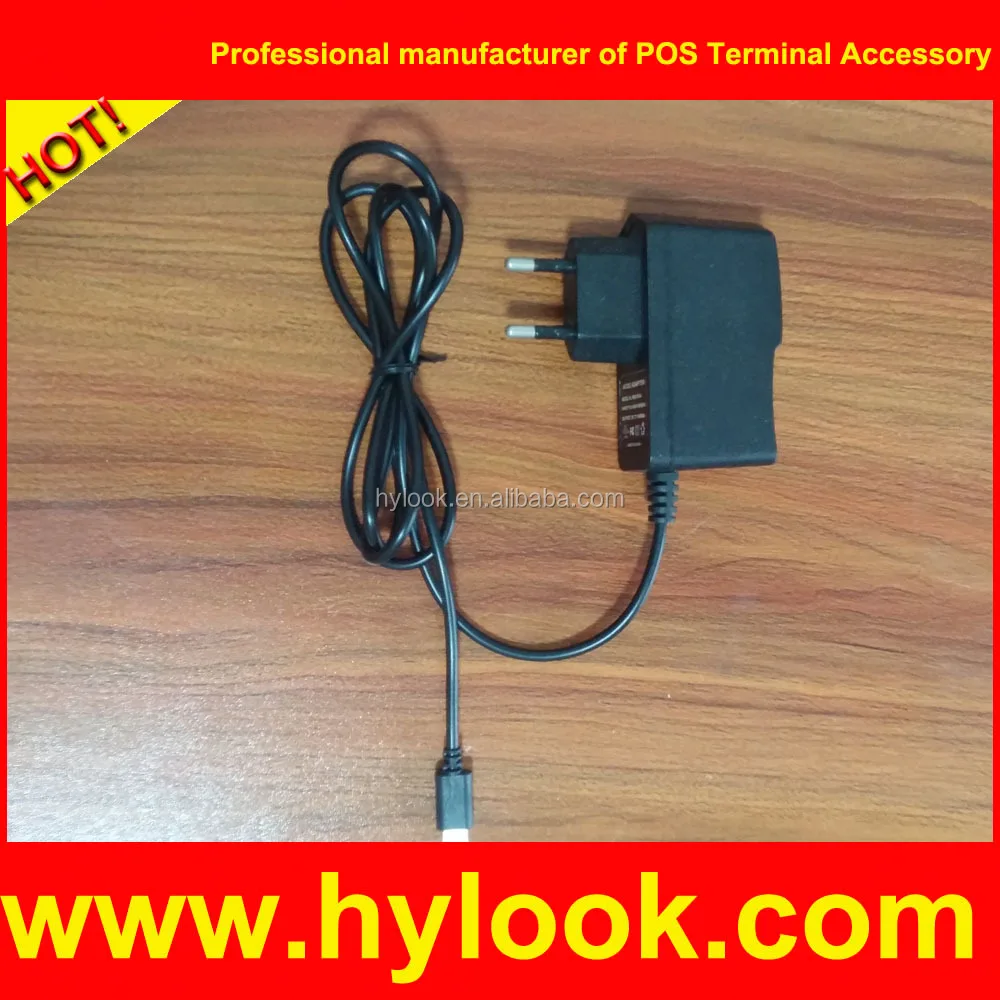

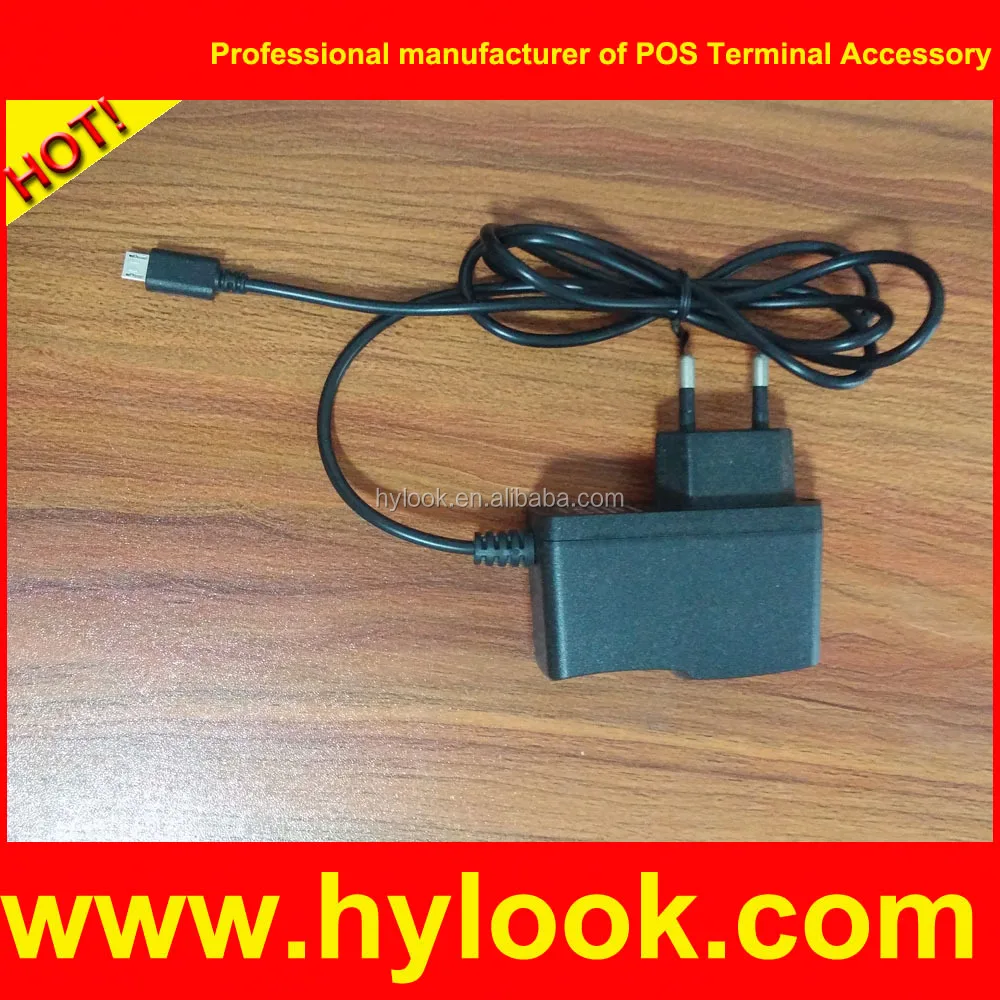

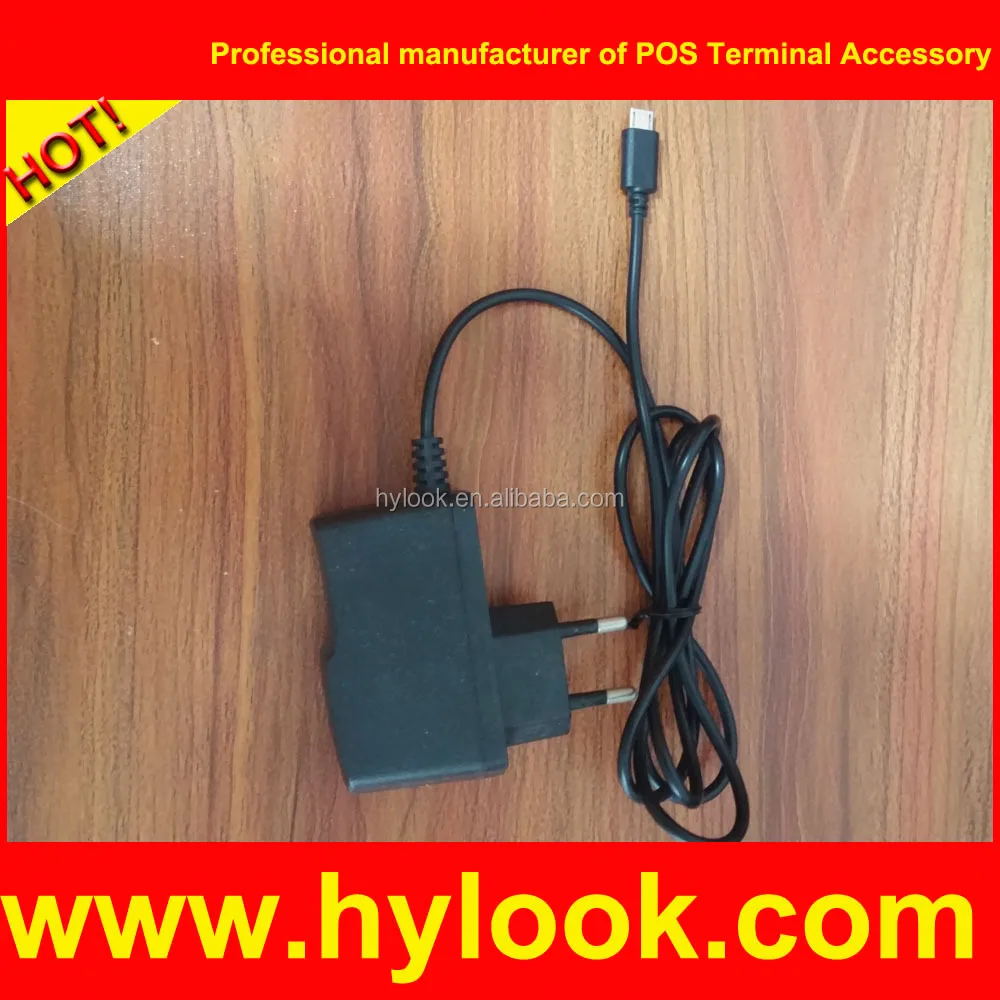

AC Adapter for Verifone Vx675 with Micro USB

Click here to contact

Product details

Efficiency:	80%;	output voltage:	5V;
Model Number:	HL-W05-010;	Hold up time:	30ms;
Supply Ability:	10000 Piece/Pieces per Week 2000pcs per day;	Line and load regulation:	+-5%;
Usage:	Game Player;	OEM:	Available;
Connection:	Plug In;	Output Type:	DC;
Brand Name:	HYLOOK;	length of dc wire:	1.2M;
Dc connector:	according to your requirement;	Warranty:	1 year;
Place of Origin:	Guangdong China;	Case Material:	Plastic;
Packaging Detail:	White box packing 50pcs per carton;	Port:	Shenzhen;
Payment Terms:	T/T,Western Union,MoneyGram;	Color:	Black;

----- AC Adapter for Verifone Vx675 ------

1.Application:

2.Characteristics:

3.Specification:

Model	HL-W05-010
DC output voltage	5V
Output voltage error	±1
Rated output current	1A
Output current rage	0-1A
Wave and noise	240mVp-p
Inlet stability	±0.5%
Load stability	±0.5%
DC output power	12W
Efficiency	83%
Adjustable range for DC voltage	4.4V-5.6V
AC input voltage range	85~132VAC/180-264VAC selected by switch, 47-63Hz254-370VDC
Input current	6.5A/115V 4A/230V
AC Inrush current	25A/115V 50A/230V
Leakage current	<3.5mA/240VAC
Overload protection	105%~150% Tpye:pulsing hiccup shutdown Reset: auto recovery
Over-voltage protection	+-5%
High-temperature protection	ERH1>=70°C Fan on,<=65°CFan off,>=80°C,Cut off output(24~48V)
Temperature coefficient	±0.03%/(0~50%)
Setup rise hold up time	200ms,100ms,20ms
Vibration	10~500Hz,2G 10min,/1cycle,Period for 60min,each axes
Withstand voltage	Input and output internal1.5KVAC,Input and enclosure1.5KVAC,Output and enclosure0.5KVAC
Isolation resistance	Input and output internal: Input and enclosure, Output and enclosure500VDC/100MΩ
Working temperature and humidity	-10~+60Refer to output derating curve,20%~90%RH
Store temperature and humidity	-20~+85,10%~95%RH

4.Advantage:

1:high reliability,long life
2:universal input voltage can use all over the world
3:electrical specification:short-circuits,over-current,over-voltage, over-temperature protection
4:price:specific discussion
5:material :can be customized as per customer requirement any specifications for your material products
6:suitable proaducts:Pos terminal machine ,DVD/monitor/digital photo frame and other multimedia equipment

5.Protection:
