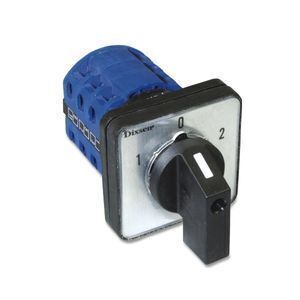

3 Position waterproof rotary changeover automatic cam switch

Supplier: Zhejiang Dixsen Electrical Co., Ltd.
Region: Zhejiang, China
Contact: Ms Jane Zheng
Price: $3.50 /piece
Min. Order: 1 piece

Click here to contact

Product details

Pole:	1~4 Poles;	Place of Origin:	Zhejiang China;
Contact:	Sliver point;	Model Number:	DW26-20;
Product Name:	Cam Switch;	Type:	Transfer Switch;
Standard:	GB14048.3 IEC60947-3;	Rated Current:	20/25/32/40/63/80/100A;
Brand Name:	Dixsen;	Payment Terms:	L/C,T/T,Trade Assurance;
Supply Ability:	50000 Piece/Pieces per Year;	Color:	Yellow;
Mechanical Life:	100,000times;	Certificate:	CE ISO9001;
Max. Voltage:	690V;	Application:	Motor Switch;
Max. Current:	20A;	Port:	Ningbo or Shanghai;
Packaging Detail:	100 pcs per carton or as per your request;	Function:	1-0-2 (ON-OFF-ON);

Banner

Product Description

The principle applications of Cam Operated Rotary Switches are for making, breaking and isolation of power circuits and switching the circuits. Cam switches are suitable for AC as well as DC application used for virtually all purposes. Such as motor control, panel meter switching, control and distribution panel, etc.

Ref	DW26-20
Rated thermal Current(A)	20A
Rated Insulating Voltage(V)	690V
Rated Working Voltage(V)	240V, 440V

Rated Working Current(A)
AC-21A AC-22A	5A
AC-23A	3.5A
AC-2	11A
AC-3	15A
AC-4	15A
AC-15	20A

Rated Control Power(KW)
AC-4	0.55KW
AC-3	2.2KW
AC-5	3.7KW
AC-23A	3KW

Note: At the Rated control Power blank, the AC-23A, AC-3, AC-4 means the power in three phase three pole, and the denominator means the power under single phase two pole.

* Finger-protected respectively hand-protected

Detailed Images
