Automatic paper carry bag making machine of sanyuan brand

Supplier: Ruian City Sanyuan Plastic Packing Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Jodie lin
Price: $1259.10 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	sanyuan;	Supply Ability:	30 Set/Sets per Month as customer requires;
colour:	blue;	Port:	ningbo;
Material:	Plastic;	After-sales Service Provided:	Online support,Free spare parts,Field maintenance and repair service,Engineers available to service machinery overseas;
Voltage:	220v;	Condition:	New;
machine name:	hot-sealing & hot-cutting bag maker;	Power Required:	3.5KW;
Converting Thickness:	0.01-0.05MM;	Certification:	CE,SGS,ISO9001;
Bag Type:	T-shirt Bag;	Bag Length:	<800MM;
Packaging Detail:	film package /pallet / wooden case package/ depends on customer requirement 16 sets machines can be loaded in a 40 ft container, one year guarantee time, whole life technician support, a set of tools, a box of vulnerable parts, English operation manual.;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
Computerized:	Yes;	Accuracy Length:	±1;
Bag Width (Max):	450MM;	Warranty:	1 YEAR;
Place of Origin:	China;	Model Number:	FQCH-600;
Heater:	2KW;	Machine Type:	Sealing Machine;
Applicable Industries:	Restaurant,Home Use,Retail,Food Shop;	Dimension(LWH):	290011501250MM;
Weight:	700kg;	Speed Cut/Min:	30-140;

Automatic paper carry bag making machine of sanyuan brand

Banner

Product Description

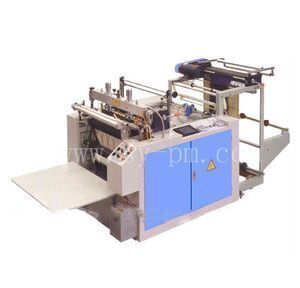

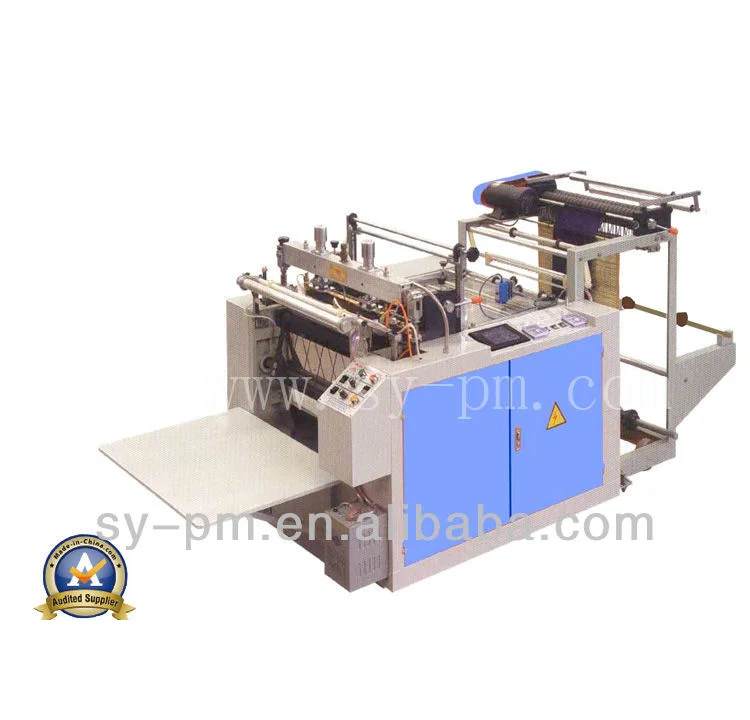

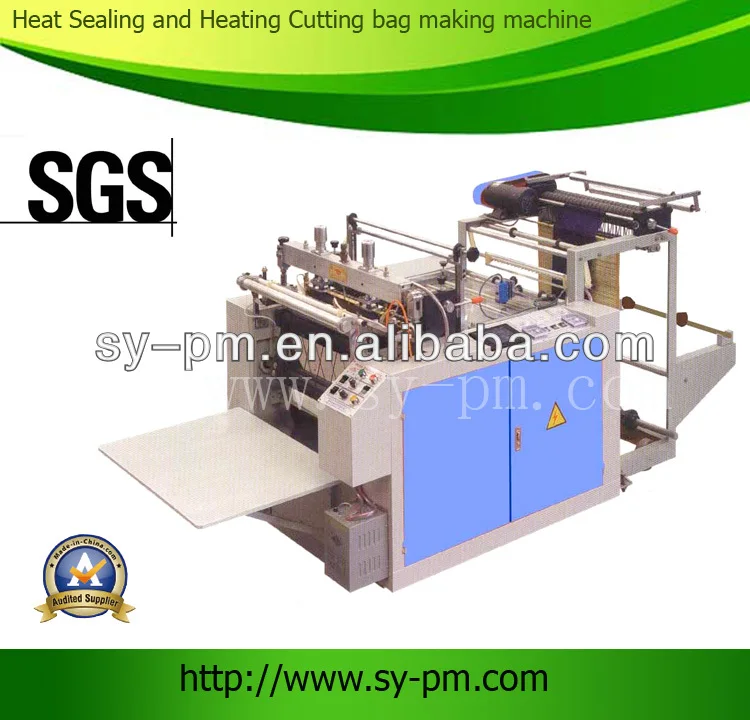

This machine is suitable for hot-sealing & hot-cutting high-density polyethylene (HDPE) and low-density polyethylene (LDPE) plastic film. It adopts computer color code-tracking, automatic constant temperature, automatic counting, and automatic batch binding. If it is equipped with a "U "shape bag punching machine, it can make vest bags.

Product Description

1.Usage: FQCH model bag making machine is suitable for making print bags or no-print bags.
2.Semi-automatic: it can do one-line production of the following steps: heat sealing and heat cutting.the film has to use another punch to make it into bag.so it is semi-automatic.
3.Computer control system: the user can use the monitor control panel on the computer to read technical parameters, set bag length,working speed . It is very convenient.
4.photo cell: photo cell is used for print bag to do one line production.
5.photoelectric control feeding system: this system is used to control film feeding system.
6.Automatic temperature control: It adopts intelligent temperature controller to control the temperature easily.
7.electric static mover bar: it can treat the static on the film, the finished bags will easily go out and be smoothe.
8.Automatic counting system: user can set the numbers of bags by each bundle. The computer will automatically count it. In this way, the user can easily know the production of bags.
9.Alarm system: when the machine finish the quantities of bags, which is set by the user. The alarm system will give alarm sound to reminder the user its near finishing job. Moreover, if the photo cell can not find the printed mark position, it will also alarm.

MODEL	FQCH 600	FQCH 700
Bag Width (Max)	450MM	550MM
Bag Length	<800MM	<1000MM
Converting Thickness	0.01-0.05MM	0.01-0.05MM
Accuracy Length	±1	±1
Speed Cut/Min	30-140	30-140
Motor	1.1kw/1.5HP	1.1kw/1.5HP
Heater	2KW	2.2kw
Power Required	3.5KW	4KW
Dimension (L×W×H)	2900×1150×1250MM	2900×1250×1250MM
Gross Weight	700KG	750KG
