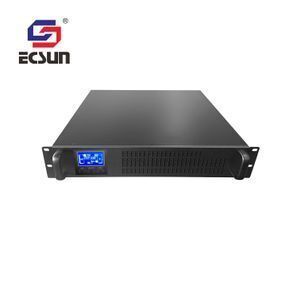

HBC Top Quality 10KVA 6kva 3kva 2kva 1kva Online Rack Mount UPS from factory in China

Supplier: Shenzhen Zhengxin Electronics Co., Ltd.
Region: Guangdong, China
Contact: Mr Jason Lu
Price: $98.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Transfer Time:	0 Ms;	Warranty:	2 Years;
Supply Ability:	60000 Piece/Pieces per Month;	Package Preview:	https://sc01.alicdn.com/kf/HTB1oPpMQFzqK1RjSZFvq6AB7VXaA.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HLB1f6hPQMHqK1RjSZFkq6x.WFXaV.jpg_640x640.jpg;
Brand Name:	Ecsun OEM/ODM;	Place of Origin:	Guangdong China;
Application:	telecommunication/Computer/networking/finance/minitary;	Weight:	10.3kg;
Port:	Shenzhen/Guangzhou/HK;	Input voltage:	115-300vac;
Capacity:	3kva/2400W;	Phase:	Single Phase;
Packaging Detail:	rack mount ups 3kva package: Foam protective safe neutral package(large quantity can OEM) 1pcs into inner master carton 1 Carton size:795575255mm 1 Carton G.W.:18..5KG;	Certification:	ISO9001/ ISO14001/RoSH/CE;
Protection:	overload/over current/over voltage/short circuit;	HS CODE:	8504402000;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Battery Type:	Lead-acid external Battery;
Display:	LED;	Wave Form:	pure sine wave;
Model Number:	C6KRS;	Product name:	Rack mount ups 3kva;
Type:	On-line;

HBC Top Quality 1KVA 2KVA 3KVA 6KVA 10KVA Online Rack Mount UPS Price

Technical parameters

Features:

1. 1/2/3KVA in 2U, 6KVA in 3U

2.Double conversion

3.True Isolation technology offers the most complete power protection and highest quality power for all IT applications.

4. RS 232 management software

5.SNMP Slots for remote monitoring and control

6..load sensing, overload protection, dynamic by-pass, temperature monitoring software for preventative diagnostics.

7.LE/LCD option

8.Extended backup time capacity.

TECHNICAL SPECIFICATIONS:

Rackmount UPS 1KVA-10KVA (Long run)
C1KRS	C2KRS	C3KRS	C6KRS	C10KRS
1KVA 800W	2KVA 1600W	3KVA 2400W	6KVA 4800W	10KVA 8KW
2U	2U	2U	3U	3U
120 - 275 VAC ± 5
(45 -55) ± 0.5Hz
80VAC x (1 ± 5%) – 285VAC x (1 ±5%)
36VDC	72VDC	96VDC	192VDC	192VDC
External style
4A for long running machine
220VAC ± 1% (invert output)
46 - 54Hz (normal AC output); 50Hz ± 1% (abnormal AC output)
Sine wave THD < 3% (linear load); sine wave THD <8% (nonlinear load)
105 - 125%: convert to byass after 1 minute
0.8
3 : 1
RS232 , SNMP slot
7.7 kg	9.7 kg	10.3 kgs	18.5 kgs	20 kgs
42044085mm			640133440mm	640133440mm
560530180mm			795575255mm	795575255mm
OFFICE, IT ROOM, INDUSTRIAL ENVIRONMENT, Security and Protection System, Communication System and Computer Network System
ISO9001, ISO14001, CE, ROHS

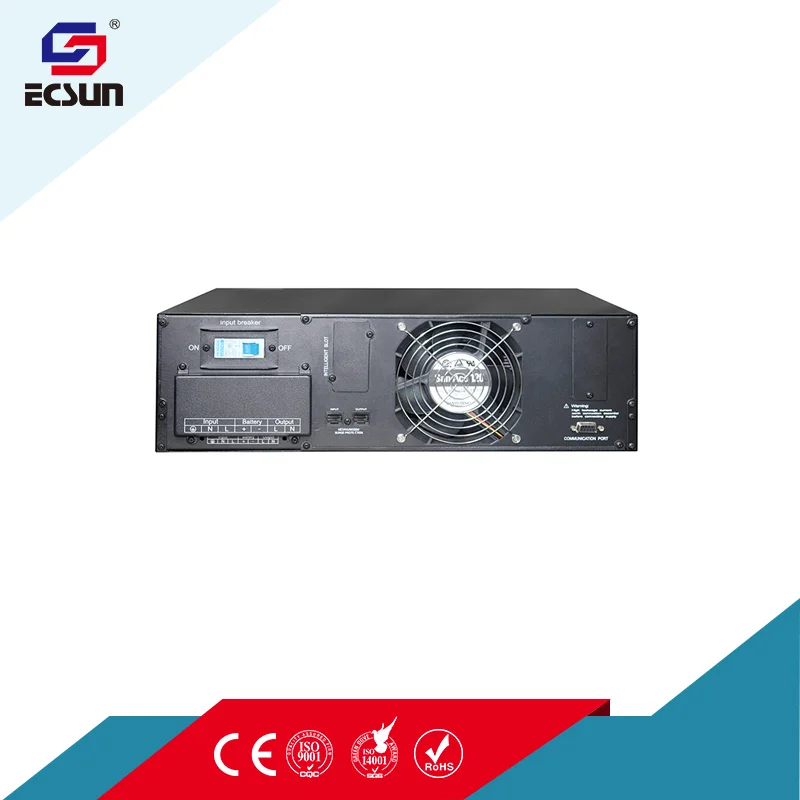

6kva-10kva picture

Company Information

Shenzhen Zhengxin Electronics Co., Ltd. provide a One Stop Solution to the UPS Series Product including Design, R&D, Manufacturing and Sales with After Sales to our valuable customer. Currently we are working closely with our customer in OEM, ODM and JDM mode, we also looking for better opportunities to work with our potential customer on some new products and new projects. With the certification of ISO9001 and ISO14000, we believed that we are able to provide the best quality and service to our customer truthfully and we are seeing the success together.

Excellent Quality and Customer comes First is our company policy, we not only provide the suitable and quality product but also provide the high efficiency and reliable services to our customer. Customer Satisfaction is always our target and to become the first tier supplier of Power Supply Industry. We have served our customers from various industries with the trustworthy with each others.

Packaging & Shipping

Safe package picture,1pcs into master carton with foam protecting

Certifications

Exhibition

Hot Selling Items

Hot selling items recommended , for details please click picture :

Why Choose Us

16 years OEM/ODM manufacture experience..
Our quality can meet military,medical,financial standards(quality is our culture).
Our products can give you an edge over your competitors.
20 engineers R&D team.
Sample/small order welcomed.
Logo printing welcomed.
Payment: L/C,T/T,Western Union.
7*24h online service.
Multi-languages international sales team.
1 year warranty.
Any customized design is welcomed.

Welcome inquiry and visit our factory at any time!
