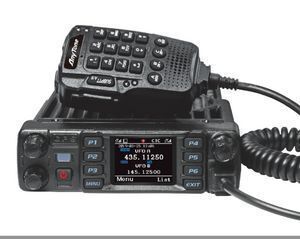

Anytone AT-D578UVPRO Digital DMR mobile radio dual band UHF/VHF with Bluetooth and GPS
-
Supplier: Qixiang Electron Science & Technology Co., Ltd. -
Region: Fujian, China -
Contact: Mr General Manager: Ken Xu -
Price: $399.00 /set -
Min. Order: 1 set
| Place of Origin: | Fujian China; | Brand Name: | ANYTONE,ANYTONE; |
| Storage Channel: | 4000 channels; | Port: | Xiamen; |
| Type: | Vehicle Mouted; | Packaging Detail: | giftbox packing; |
| Payment Terms: | L/C,T/T,Western Union; | Dimensions: | 188x141x40mm; |
| Warranty: | 18 Months; | Frequency Range: | VHF/UHF; |
| Talk Range: | 10km; | Supply Ability: | 5000 Piece/Pieces per Month; |
| Model Name: | AT-D578UVPRO; | Model Number: | AT-D578UV; |
General | ||
Frequency Range | Europe: 144-146MHz(V),430-440MHz(U) United State: 136-174MHz(V),400-480MHz(U) Australia: 144-148MHz(V), 420-450MHz(U) Tri band:144-148MHz(V), 222-225MHz, 420-450MHz(U) | |
Channel Capacity | 4000 channels | |
Channel Spacing | 25KHz (Wide Band) ,12.5KHz (Narrow Band) | |
Phase-locked Step | 5KHz, 6.25KHz | |
Operating Voltage | 13.8V DC ±15% | |
Frequency Stability | ±2.5ppm | |
Operating Temperature | -20℃~ +60℃ | |
Size | 188x141x40mm (radio only) | |
Weight | 1.04kg (without accessories) | |
Receiving Part | ||
| Wide band | Narrow band |
Sensitivity(12dB SINAD) | ≤0.25μV | ≤0.35μV |
Digital Sensitivity | 0.3uV/-117.4dBm (BER 5%) 0.7uV/-110dBm (BER 1%) | |
Adjacent Channel Selectivity | ≥70dB | ≥60dB |
Spurious Emission | ≤-57dB | ≤-57dB |
Spurious Rejection | ≥70dB | ≥70dB |
Blocking | 84db | |
Hum & Noise | ≥45dB | ≥40dB |
Audio Distortion | ≤5% | |
Audio Power Output | 2W/8Ω | |
Transmitting Part | ||
| Wide band | Narrow band |
Power Output | VHF: 60/25/10/1W, UHF: 45/25/10/1W | |
Modulation | ±5.0KHz at 25KHz | ±2.5KHz at 12.5KHz
|
Adjacent Channel Power | ≥70dB | ≥60dB |
Hum & Noise | ≥40dB | ≥36dB |
Spurious Emission | ≤-36dBm | ≤-36dBm |
4FSK Digital Modulation | 12.5KHz(data)7K60FXD 12.5KHz(data+voice)7K60FXE | |
Audio Distortion | ≤5% | |
Error rate | ≤3% | |
-
