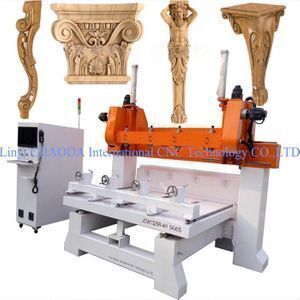

Multi Head 3D Rotary 4 Axis CNC Wood Carving Copy Machine, 3D Wood Furniture Making Machine / 3D Wood Carving Machine 5 Axes
-
Supplier: Linyi Chaoda International Cnc Technology Co., Ltd. -
Region: Shandong, China -
Contact: Ms Anna zheng -
Price: $1.00 /set -
Min. Order: 1 set
| Supply Ability: | 1200 Set/Sets per Month 3D Wood Furniture Making Machine / 3D Wood Carving Machine 5 Axe; | Weight: | 2300kgs; |
| Type: | 5 Axis (Option: 4 Axis); | Warranty: | 1 YEAR; |
| After-sales Service Provided: | Online support,Engineers available to service machinery overseas; | Voltage: | 220V/380V/Others; |
| Brand Name: | CHAODA; | Packaging Detail: | Package For Multi Head 3D Rotary 4 Axis CNC Wood Carving Copy Machine, 3D Wood Furniture Making Machine / 3D Wood Carving Machine 5 Axes In Wooden Case And Steel Frame Support; |
| Payment Terms: | L/C,T/T; | Place of Origin: | Shandong China; |
| Motor: | Japan Yaskawa Servo Motor; | Spindle power: | 4x3.5kw air-cooling (option: water-cooling); |
| Control system: | 5 axis Ncstudio or SYNTEC (option: 4 axis); | Condition: | New; |
| Certification: | SGS, CE, BV, TUV; | Dimension(L*W*H): | 2.26*3.15*2.23 meters; |
| Port: | Qingdao or China other ports; | Power(W): | 3.5kw; |
| CNC or Not: | CNC; | 3D scanner: | Available; |
| Machine name: | 3D Wood Furniture Making Machine / 3D Wood Carving Machine 5 Axes; | Compatible Software: | PowerMill; |
| Rotary axis quantity: | 4 (Option: 6, 8, 10, 12); | Working size: | 1200mmLx500mmDx4rotaries; |
Multi Head 3D Rotary 4 Axis CNC Wood Carving Copy Machine, 3D Wood Furniture Making Machine / 3D Wood Carving Machine 5 Axes
our products include cnc router of 3 axis, 4 axis, 5 axis and 5+1 axis
as well as 3d scanner, laser machine and plasma cutting machine
we supply not only cnc machines !
but also best solution to your specific project !!
Model No. JCW1325R-4H 5AXIS
Machine Features
a) This item is very suitable for bulk production of 3d buddha statues,human statues,
animal sculptures, it also can make furniture legs,decorations...,multi heads can work
at the same time, also can work alone, many times increasing efficiency.
b) it is also with a movable table,can process plane materials.
c) table movement, long time use no distortion, more precise positioning accuracy.
d) well compatibility in software: all kind of 3D carving softwares.
e) Each spindle can hold two tools, one tool for rough machining, one tool for finish machining ,
which is equivalent to Auto Tool Changer
f) simultaneous 5 axis Syntec control system, control system and operating system combined
into one, very stable and humanized
g) we can make Multi heads machine with any working size according to your specific need.
Technical Parameter
| Rotary working size | 1200mm ( L)* 500mm (D)* 4 pieces |
| Flat working size | 1200mm ( L)* 500mm (W)* 4 pieces |
| Spindle power | 3.5KW air cooled spindle (4 pieces) |
| Table | Removable,T-slot with clamps |
| Working mode | Japan YASKAWA servo motor and driver |
| Operating system | 5 axis Syntec |
| Command code | G code(*uoo,*nc,*mmg, *plt) |
| Working voltage | 3 phase AC380V 50Hz |
| Running circumustance | Temperature: 0°C~45°C relative humidity: 30%~75% |

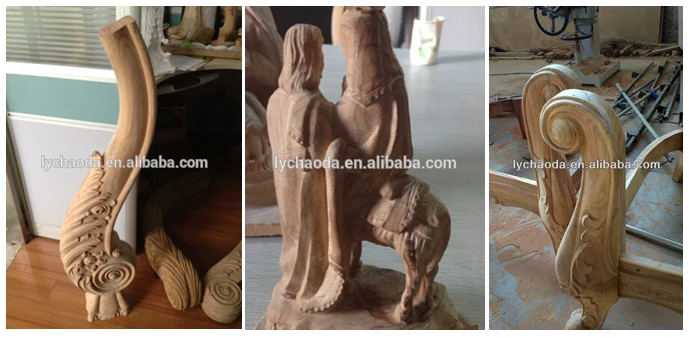

Product Samples
this machine is very suitable for bulk production of 3d buddha statues,human statues,
animal sculptures, it also can make 3d furniture legs and decorations.
>> products made by rotary device
>> products made by flat table
Related Machines You May Like
>> 4 axis multi spindle cnc machine
>> 4 axis single spindle cnc machine
>> 3d scanner
Product Certificates (CE,BV,TUV,SGS)
Customer Visiting & Training
Customer Feedback
Company Information
Our factory was established in 2002 and covers 40000 Square meters. we have experienced and
professional engineers who devote themselves to machines' research, development, production,
and after- sale service .Our machines have won praise from customers worldwide and with very
good reputation in this field.
Contact Us
Linyi CHAODA International CNC Technology Co., Ltd.
T: +86 539 8301166 | M: +86 13696390983
WhatsApp: +86 13696390983 | Wechat: +86 13696390983
Email: info at carving-machine.cn | Website: www.carving-machine.cn
-
