High pressure water jetting road marking remover
- 10000.00 set
| Cross revolution: | 800~900R/Min; | Working speed: | 1.5m/min; |
| Condition: | New; | Port: | Nanjing/Shanghai; |
| Place of Origin: | CN;JIA; | Packaging Detail: | As to clients requirement; |
| Dimension(L*W*H): | 2.7m*1.5m*1.6m; | Warranty: | 1 YEAR; |
| Payment Terms: | L/C,T/T; | Place of Origin: | Jiangsu China; |
| Cross lifetime: | about 3~4 months; | Certification: | ISO; |
| Time of add water: | 3times per day; | Brand Name: | LXD; |
| Water consumption: | 30L/Min(actual 20L/Min); | Length of pipeline: | 10m; |
| Oil cost: | 15L/Hour; | After-sales Service Provided: | Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service; |
| Power(W): | 120KW; | Power of diesel engine: | 120kw; |
| Supply Ability: | 20 Set/Sets per Year; | Weight: | 2.1Ton; |

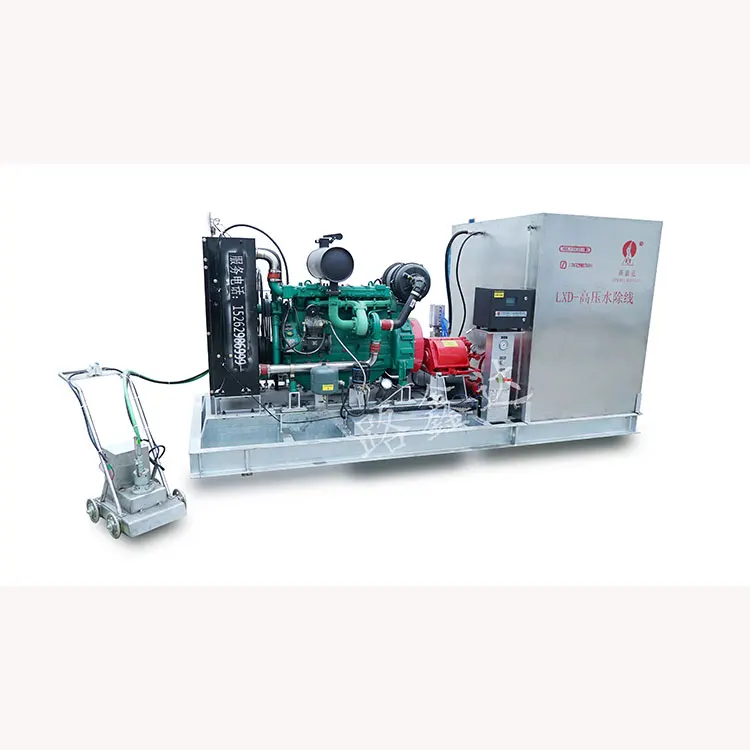

High pressure water jetting road marking remover
It is used for removing all kinds of road marking lines with its high pressure water.it has advantages of easy operation,simple maintenance,high efficiency,without damaging road surface,environment friendly.
Technical data:
Length of pipeline: 10m | Working speed:1.5m/min |
Cross revolution:800~900R/Min | Weight:2.1Ton |
Size:2.7m*1.5m*1.6m(length*width*height) | Water consumption:30L/Min(actual 20L/Min) |
Oil cost:15L/Hour | Power of diesel engine:120kw |
Revolution of diesel engine:1500R/Min | Water tank capacity:4.5Ton |
Time of add water: 3times per day | Cross lifetime:about 3~4month |
Seal Ring lifetime:change every half an year.(the water should be clean) | Oil tank: a tank of oil can support three days working. |
Engine | DEUTZ Diesel Engine, Power:120kw Rotated speed:1500r/min |

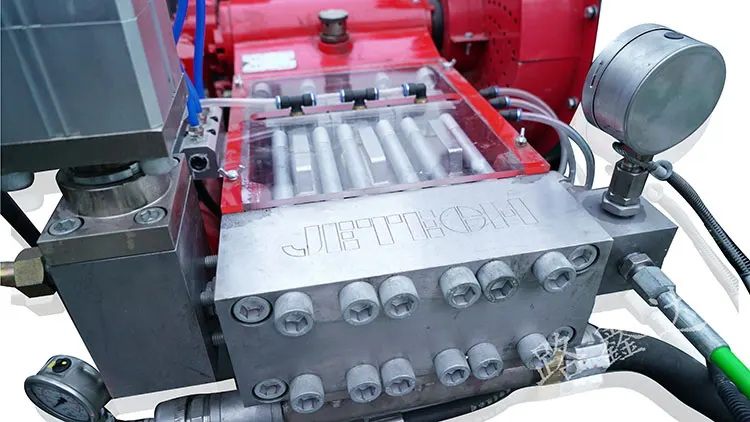

High pressure pump | USA JETECH Pump,pressure:140Mpa; Flow:30L/min; bearing:Japan NSK; Plunger:hard alloy Φ18; High pressure seal:imported seal |
Compulsive lubricating system and oil cooling system | |
Imported safety Bursting diaphragm | |
Pressure regulating valve: imported from Japan | |
High pressure gauge: Imported from Germany | |
Complete computer monitoring system | |
Stationary chassis assembly length: 3.8m | |
Prepositive booster pump: Max 6KG | |
Water supply pipeline system:stainless steel and Withhold hose | |

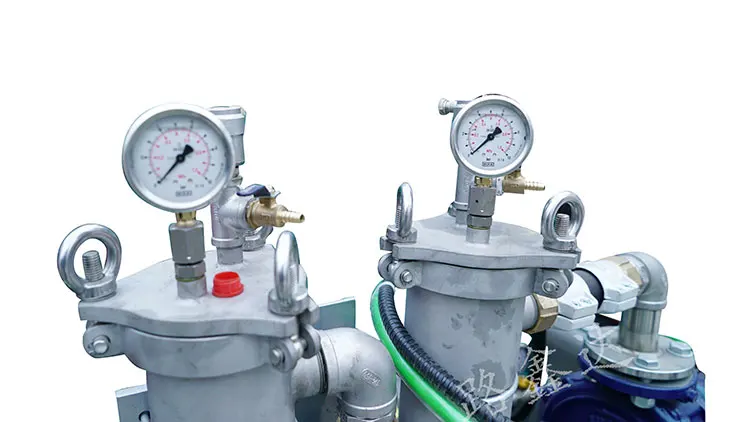

Filter: Double layer, stainless steel vertical type filter | |
Water supply protect system:include low-pressure protection system | |
Water tank:not lower than 2.7CBM,made of stainless steel | |
High pressure pump spare parts kit | |
Oil tank: 250L | |
Product details:

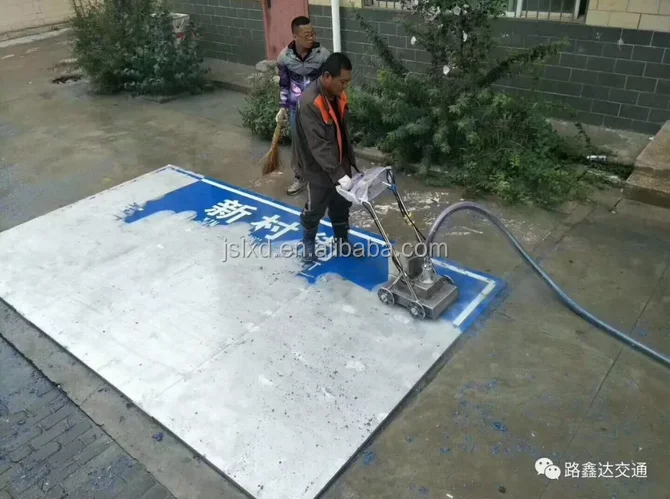

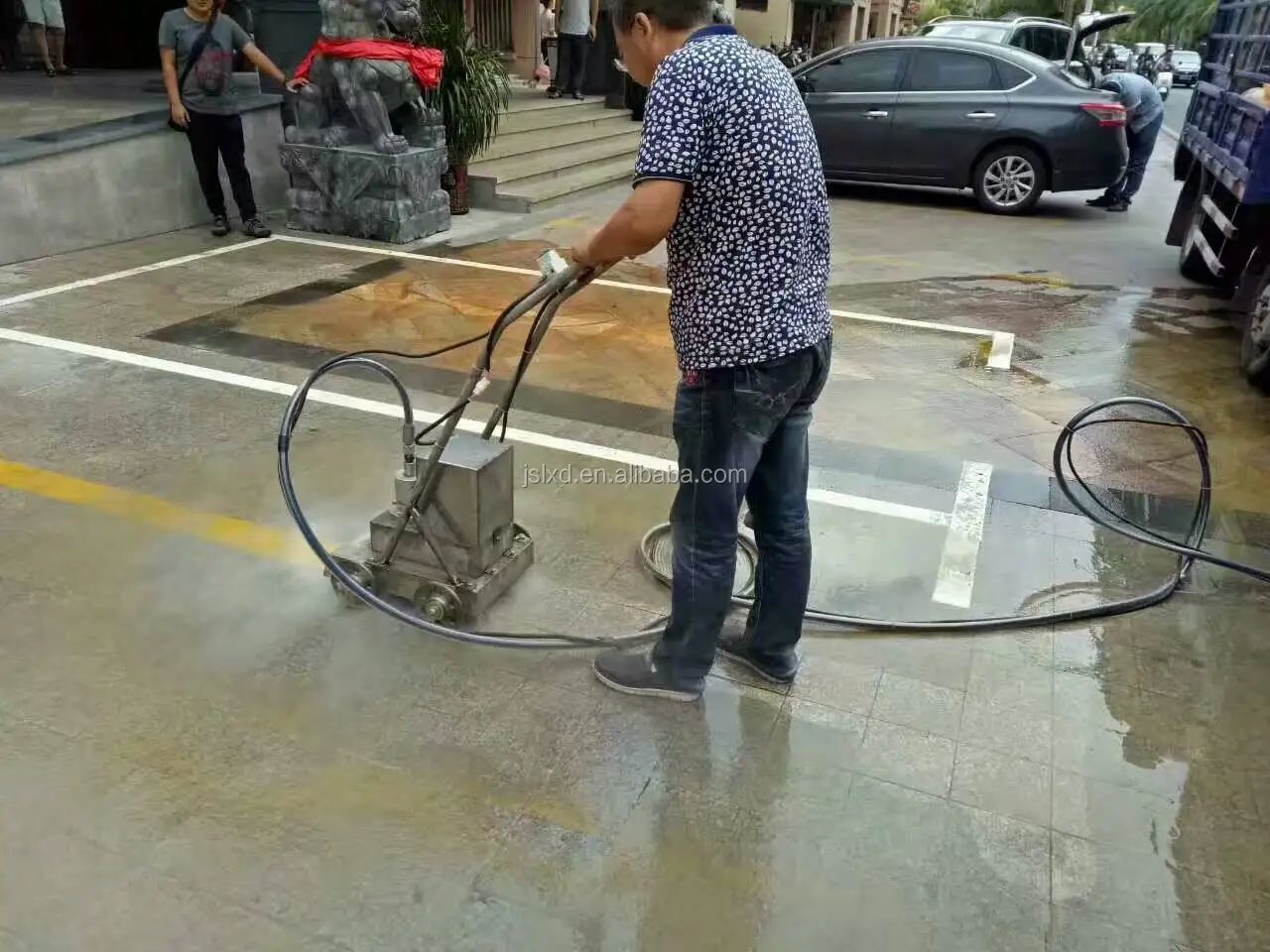

Application pictures:
