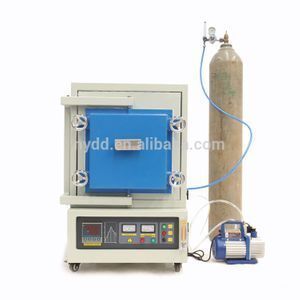

1400.C Laboratory Nitrogen Argon Vacuum Atmosphere Sintering Furnace

Supplier: Nanyang Dadi Electric Equipment Co., Ltd.
Region: Henan, China
Contact: Mr. David Wang
Price: $999.00 /set
Min. Order: 1 set

Click here to contact

Product details

Voltage:	110V/220V/380V;	Maximum temperature:	1400.C;
Application:	Vacuum Atmosphere Sintering Furnace;	Supply Ability:	500 Set/Sets per Month;
Heating element:	Silicon carbide heater;	Usage:	Laboratory Atmosphere Sintering Furnace;
Model Number:	SA2-2-14TP;	Temperature control:	30 Segments Programmable;
Delivery Detail:	7-15 days after getting the deposit;	Working temperature:	1300.C;
Place of Origin:	Henan China;	Port:	Main Ports;
Packaging Detail:	Plastic paper inside, Polyfoam filled, Wooden box outside;	Classification:	Laboratory Heating Equipments;
Type:	Argon atmosphere furnace 1400.C;	Payment Terms:	L/C,T/T,Western Union,MoneyGram,Vacuum Atmosphere Sintering Fur;
Heating rate:	0-30.C/min;	Style:	Nitrogen atmosphere furnace 1400.C;
Brand Name:	Samlab;

1400.C Laboratory Nitrogen Argon Vacuum Atmosphere Sintering Furnace

Vacuum Atmosphere furnace Application:

It is designed for material synthesis under controlled inert gas atmoshphere up to 1300 ºC with better temperature uniformity. The furnace consists of high quality alumina fiber brick and

SiC heating elements,It is an ideal tool for preparing new materials which requires a heat treatment under inert gas or oxidizing gas.

Vacuum Atmosphere furnace Structure:

High purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency.

Heavy duty double layer structure with cooling fan to keep furnace exteriors safe to touch.

Doble layer sreel case with forced air cooling to ensure lower saferface temperature.

One optional venting port is built on the top of furnace,need at extra cost .

Product Description

Vacuum Atmosphere furance details specification:

Item No.	SA2-2-14TP
Chamber size:	100x100x100 mm, Capacity: 1 liter.
Power:	2000 W Max. ( power cord is included )
Voltage:	AC 220V 50/60 Hz
Max. Temperature :	1400 °C for short time ;
Continuous Working Temperature:	1300 °C Max. ;
Max. Heating Rate:	0-30 °C /min,Suggest to be 15.C/min.
Temperature Controller :	PID automatic control and auto-tune function. 30 programmable segments for precise control. Built in protection for overheating and broken thermocouple. Large digital control panel for easy operation.
Temperature Accuracy :	+/- 1 °C;
Heating Elements :	SiC rod.
Thermocouple :	S type.
Max. vacuum:	-0.1Mpa.
Atmosphere:	Helium (He), Neon(Ne), Argon(Ar), Krypton(Kr), Xenon(Xe), Radon(Rn), Oxygen(O2),Nitrogen (N2), Hydrogen(H2) .
Standard parts:	Vacuum pump 1pc,crucible tongs 1pc,asbestos gloves 1 pair,one user manual.

Nitrogen Atmosphere furnace details picture:

Atmosphere furnace Standard Sizes:

Type	Furnace size	Working/Max.temperature	Delivery time
1400.C atmosphere furnace	100x100x100mm	1300.C/1400.C	5-30 days
1400.C atmosphere furnace	200x150x150mm	1300.C/1400.C	5-30 days
1400.C atmosphere furnace	300x200x200mm	1300.C/1400.C	5-30 days
1400.C atmosphere furnace	400x300x300mm	1300.C/1400.C	5-30 days

Warranty: One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Temperature’s curve for your reference as below.( for example: 6 segments)
