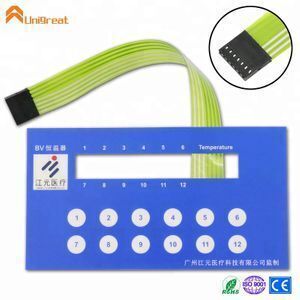

numerical panel button switch membrane keypad for instrumental panel

Supplier: Shenzhen Unigreat Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Lincoln Wong
Price: $0.50 /piece
Min. Order: 1 piece

Click here to contact

Product details

Brand Name:	Unigreat;	Dome Rebound Time:	≤6ms;
Thickness:	0.7~1.5 mm;	Port:	Shenzhen, HongKong, Guangzhou,Shanghai;
Life Expectancy:	Flat type ≥ 5 million times, Tactile type ≥ 1 million times;	Place of Origin:	Guangdong China (Mainland);
Application:	Medical/Industrial/Household Equipment;	Delivery Detail:	Depend on your order quantity,usually 1 to 3 weeks.;
Packaging Detail:	Normally a certain amount of item into poly bag,then packed into carton. Or customized packed.;	Keypad Button Material:	PET/PC/PMMA/PVC;
Material:	PET(polyester)/PC(polycarbonate);	Model Number:	JYS-N-180813;
Certificate:	ISO9001:2015 RoHS;	Antistatic Shielding:	added as required;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,other payments;	Color & Pattern:	customized;
Operation Temperature:	-40°C to +80°C (-40°to 176°F);	Supply Ability:	900000 Piece/Pieces per Year Quality and Packaging Guaranteed;
Printing Way:	Silk Screen Printing/Digital printing;	Working Current:	≤ 100mA;

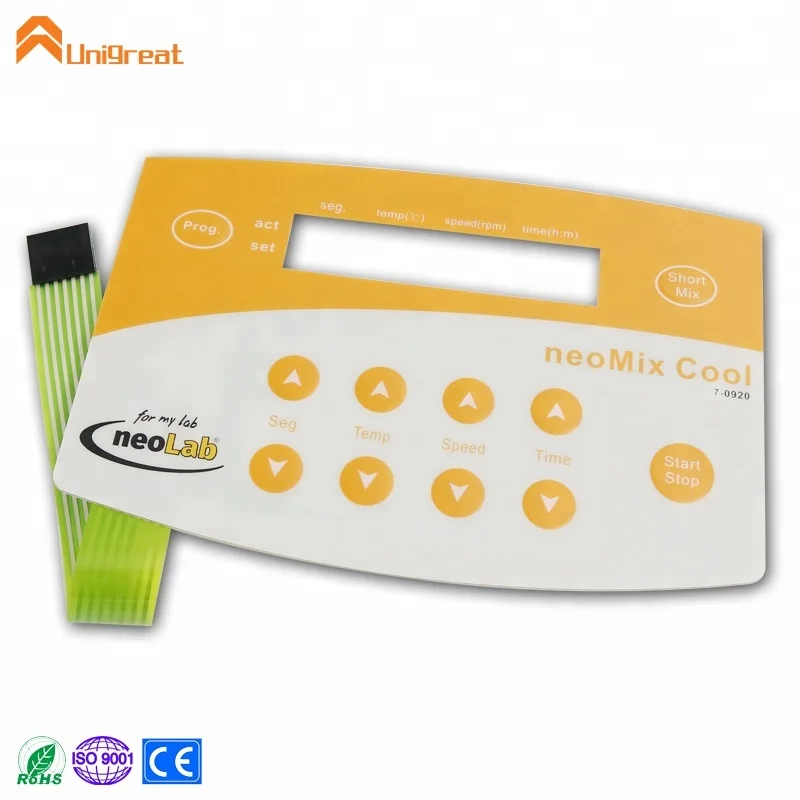

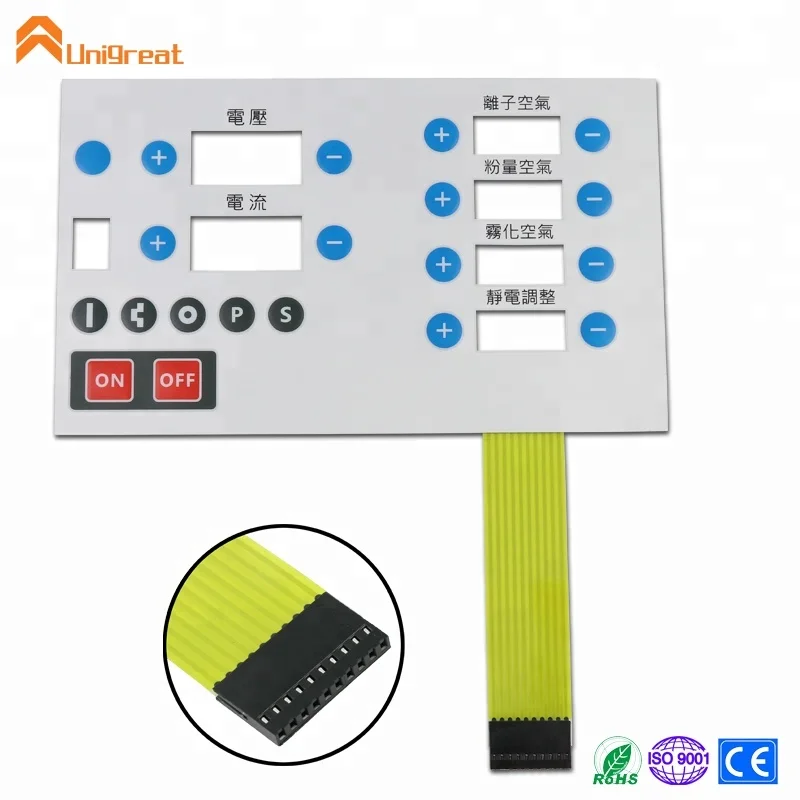

numerical panel button switch membrane keypad for instrumental panel

Product Description

Membrane switch because of its fantastic Electrical Properties, Mechanical Properties and Environmental Properties, it is widely used in Smart Home Appliances, Office Equipment, Medical Equipment, Automobile and Industrial Equipment.

reliable quality, PC /PET as overlay

execellent in quality, reasonable in price

similar products

basic properties

Electrical Properties:
1	Rated Voltage	≤50V DC
2	Rated Current	≤ 100mA
3	Operating Power	≤1W
4	Insulation Resistance	≥100MΩ (250V DC)
5	Loop Resistance	10Ω~2kΩ (based on the design)
6	Contact Resistance	0.5 ~ 5Ω
7	Wire Lead Resistance	<1Ω/cm
8	Base Material Voltage Withstand	1500V DC
Mechanical Properties:
1	Life Expectancy	Flat type ≥ 5 million times, Tactile type ≥ 1 million times
2	Operation Force	Flat Type 57-284g ,Tactile Type 170-397g
3	Dome Rebound Time	≤6ms
4	Tail Bending Performance	≤180°
5	Switch Stroke	Flat 0.1~0.5mm,Tactile 0.6~1.5mm
6	Vibration	20G's max.
7	Thickness	0.7~1.5 mm
Environmental Properties:
1	Operation Temperature	-40°C to +80°C (-40°to 176°F)
2	Storage Temperature	-40°C to +85°C (-40°to 185°F)
3	Atmospheric Pressure	86 ~ 106 kPa
4	Humidity	+40°C, 90%~95%RH for 240 Hours

Other Features :

Artwork/Drawings Format	CorelDraw, Adobe Illustrator AI, AutoCAD
Tail/Pin/Circuit Layout	Based on customers detailed requests
Antistatic Shielding	Can be added For Protection
Connector	Female/Male Connectors or ZIF Connector
Rear Adhesive:	3M467, 3M468, 3M9080 etc…
Cables	Extension of Circuit and Connect with your Device
Printing Method	Silk Screen Printing/Digital printing
Windows/Lens Coating	Can be added
Certificate	ISO9001 RoHS CE SGS

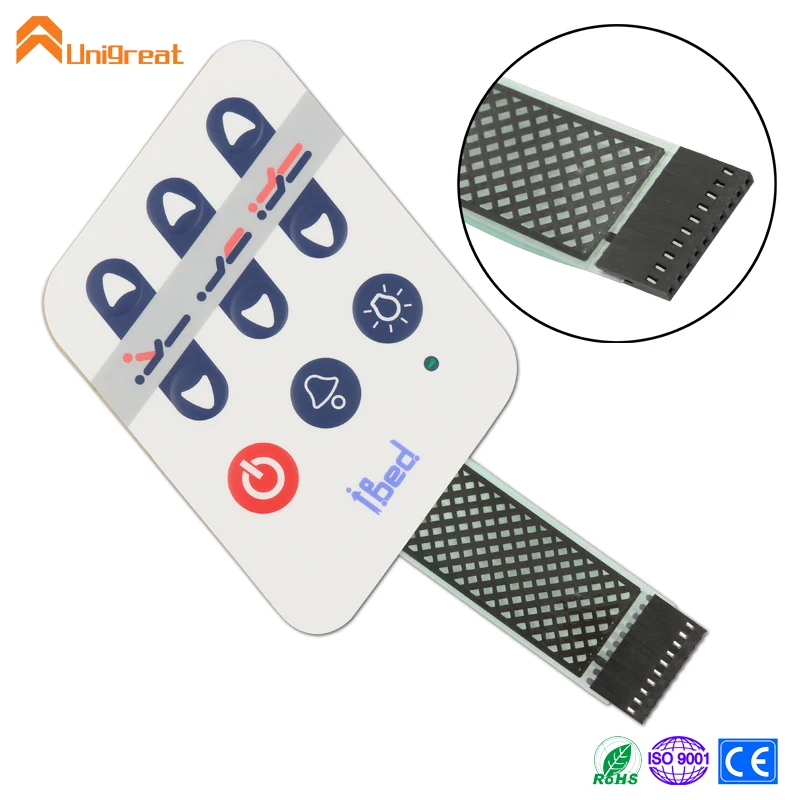

numerical panel button switch membrane keypad for instrumental panel

product process

Packaging & Shipping

Packaging : Normally a certain amount of products into poly bag, then packed into carton.

Or customized packed.

Shipping : Via Air Express like DHL UPS FedEx TNT, or Via Sea shipping.

Certifications

FAQ

Q: Are you a manufacturer or trading agent?

We are a manufacturer specialize in membrane switch, capacitive touch switch and seat sensor with 18-year experience. We are the coorperators of the world's top 500 companies like Midea, Gree,Haier, LG, Samsung, Flextronics and Galanz, so we believe that we are qualified to serve clients from different countries.

Q:What about the sample policy?

Customized Samples:Please give us your design and requirements, then we will offer you quotation(We will charge for freigt and molding).

Q:What is the production time?

(1)Custom sample: About 7 days after confirmation.
(2)Mass production: About 10 to 20 days after confirmation.
