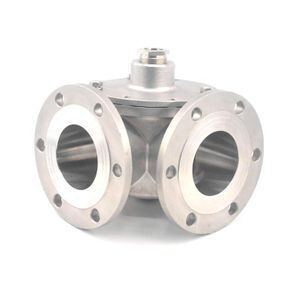

precision casting stainless steel valve body mechanical parts

Product details
Type:Valve Bodies;Port:Ningbo or Shanghai;
Position Tolerance:up to 0.01mm;Packaging Detail:Package of precision casting stainless steel valve body mechanical parts : wooden package after mandatory treatment, or other packing inquire;
Size:small to mid-sized;Payment Terms:D/A,D/P,T/T;
Name:precision casting stainless steel valve body mechanical parts;Packing:Carton+ wooden box;
Model Number:th-stainless steel valve;Linear Tolerance:up to 0.005mm;
type:flowing the customer's drawing;Optional Process:investment casting & cnc Machining;
Supply Ability:50000 Piece/Pieces per Month;Place of Origin:Zhejiang China;
Non-destructive testing:MPI, X-ray;Dimension inspection:CMM, Image measuring inspection;
Brand Name:tianhui stainless steel valve;Finish:plated, Anodizing,Coating;

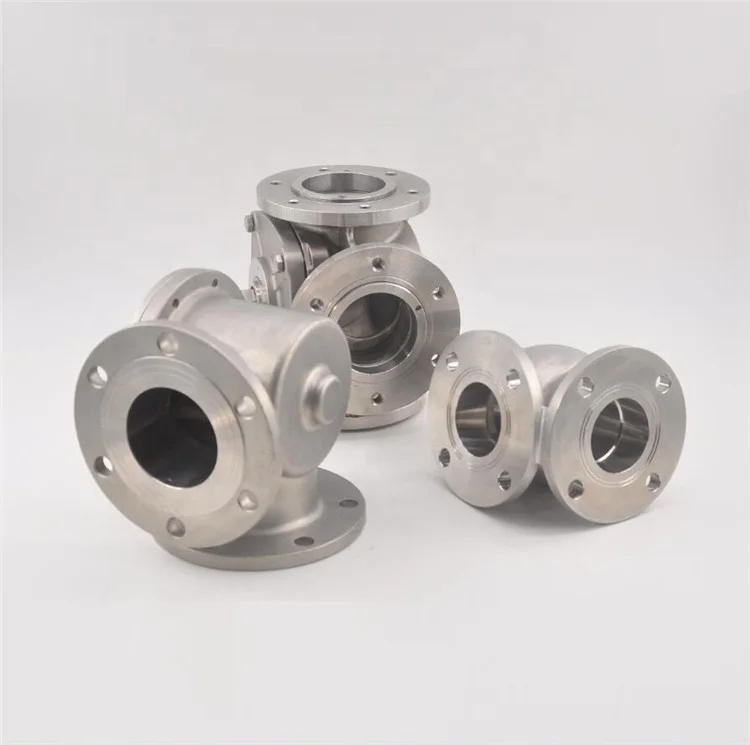

precision casting stainless steel valve body mechanical parts





Product Description



Technicalinvestment casting and CNC Machining
Materialstainless steel , carbon steel , alloy steel
Material GradeGB, ASTM , AISI , DIN , BS, JIS, NF
Weight10g~50kg
Accuracycasting tolerance CT6-CT7, machining tolerance ISO2768-mk
Surface Roughnessup to Ra0.7~Ra3.2
Applied softwareProE (.igs , .stp) , Auto CAD , PDF, Jpeg, Jpg, Png
Production capacitymore than 1500MT per year
Heat Treatment

anneal,quenching,normalizing,carburizing, polishing,

plating, painting

Machining Equipment

CNC center , CNC machines, turning machines,

drilling machines , milling machines, grinding machines

Measuring Tool

CMM , Projector, pneumatic micrometer, magnetic powder inspection, vernier caliper, depth caliper, micrometer,

pin gauge, thread gauge , height gauge

QC system100% inspection before shipment
MOQ500kg
Lead Timesample fast , lot production depends on customers' request
CertificationISO9001:2015
Payment TermsT/T , L/C, D/P , D/A
Shipment TermsFOB , CFR, CIF



Investment Casting/Lost Wax Casting:



1.Mold and Pattern Making

A mold is built to customer-provided specifications. Cold wax is then injected into the mold to creat a wax pattern/prototype that will hold precise dimensional requirements in the final casting

2. Pattern Assembly

The wax patterns are assembled onto the sprue.

3. Dipping and Coating

Successive layers of ceramic and stucco are applied to the sprue assembly to form a hard shell.

4. De-waxing and Firing

The molds are flash-fired to remove the wax and sprue materials and then heated to 1800° and placed on a sand bed, ready for pouring

5. Casting

Molten metal, up to 3000°, is poured into the hollow mold and then cooled.

6. Knockout

The ceramic shell is broken off, and the individual castings are cut away.

7. Finishing

Excess metal is removed, surfaces are finished, and castings are heat treated.

8. Testing and Inspection

Castings undergo thorough testing and inspection to ensure that they meet dimensional tolerances and specifications.

9. Packing and Shipping

Castings are securely packaged for shipping to the customer.



Investment casting also called silica sol casting, lost wax casting, precision casting. Material is stainless steel, carbon steel, alloy steel. Standard of GB, ASTM, AISI, DIN, BS, JIS, NF. Our main material grade is 1.4408, CF8, CF8M, 4140, SS304, SS316, 40Cr, 42CrMo, etc.

Advantages of Investment Casting:

1.   Large application. Not limit to size, thickness and structure, all can produce by casting. Flexible mode of production. Our casting parts mainly use for Pump & Valve industry, agricultural machinery, construction machinery, food machinery, marine hardware, auto parts, etc.

2.   A wide range of materials can be used. Extensive use of used metals and renewable resources.

3.   Castings have certain dimensional accuracy, small processing margins, the processing time and the metal material are saved.

4.   Low cost, good comprehensive economic performance. Low energy, material consumption and cost.

Ningbo Tianhui Machine Co., Ltd.

CNC machining process

Our company is a professional OEM / ODM CNC machining factory engaged in the development, production, sale and service. With 15sets cnc centers and 23 cncs , can precision cnc machine custom parts. We are SIEMENS global supplier for hundred kinds of metal parts for high voltage circuit breakers. Our goods application of pump and valve industry, auto parts, food machinery parts, agricultural machinery parts, construction machinery parts, marine hardware.
Our main material is stainless steel, carbon steel, alloy steel, aluminum, iron. We supply CNC machining service of bar or tube material, casting blanks, forging blanks. We manage heat treatment, plating, galvanic coating, anodizing, powder coating with our cooperation factories. Provide one stop service since drawing, mold design and development to goods manufacture, heat treatment, surface treatment, inspection and packing. We are located in Ningbo, with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has bought series of advance manufacturing and inspection equipment, including CNC centers, CMM, Image Measuring Instrument. In addition, we have obtained ISO 9001:2015 certification, also comply with 5S management system. In precondition of quality guarantee , we insist in process optimization, reduction of production cost , savings concession to customer. With consistent high praise from customers.





High Quality CNC parts

Tianhui Machine has been acknowledged as one of China's“leading specialists” in produce High-quality CNC parts since its establishment in 2007. Now we are produce critical CNC spare parts for several industry-leading companies.



Various Custom CNC Machined Parts

We are focused on offering custom CNC Machining services, So far, We produce over 1,000 different kinds CNC parts per year. Mainly are high voltage switchgear parts, car spare parts, valve & pump parts, Food processing parts, machinery parts.



How to order CNC Parts?

If you are looking for a supplier can produce your CNC parts, please feel free to contact us, we are familiar with overseas customer's engineer standard and quality requirement. just send us the drawing or sample or even your idea, we will quote the price asap. and we accept small quantity, high mixed CNC parts order.

Q: Why choose China Ningbo Tianhui Machine Co.,Ltd? Any advantages?

A: The answer is Yes. There are 5 advantages.

(1) MUTUAL BENEFIT: Our offer will be reasonable, our price will be cheaper in the same quality.

(2) CUSTOMIZE: We can make the product as your request, Shape and Quality can meet your request.

(3) OEM:  (1)Laser Print your Logo.  (2)Design your packing box.

(4) MIX ORDER: We accept mix order, different model and small quantity order.

(5) AFTER SERVICE: Can reback the off-test product or ask back the payment when get the off-test goods and judged off-test by the third testing party .



Q: Can I order one piece for sample to test the quality?

 A: Yes, We recommend to check the sample before order. Please order the sample in our retail store.



 Q: May I have your catalogue and price list for trial order in MOQ quantity?

 A: We mainly produce the product follow the customer drawings . And all our products were shown on alibaba, please have a detailed looking and choose the interested models in our site.



 Q: If I want cheaper quality, can you produce?

 A: Yes, just send us your quality details, such as the material, what cheaper parts instead etc, we will do that as your request and calculate the price.



 Q: If I order big quantity, what's the good price?

 A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
