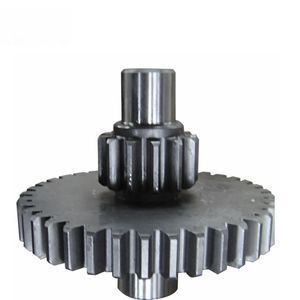

Custom CNC Machined Precision Steel Mechanical Spur Gear machining transmission gears

Product details
OEM No.:Customized;Technology:CNC machining service;
stainless steel:1.4848 / 304/316;Certification:ISO9000:2008, CE;
Place of Origin:Shandong China;Standards:GB, ASTM, SAE, ISO, EN, DIN, JIS, BS;
Truck Model:Dongfeng;Machining work:milling, tapping, grinding,etc;
Package Preview:https://sc01.alicdn.com/kf/Hbb7d944c73904ac9a76f721fa4b5db8b7.jpg_640x640.jpg;surface treatment:sand blasting, polishing, powder coated;
Single package size:50X50X50 cm;Package Type:Custom CNC Machined Precision Steel Mechanical Spur Gear machining transmission gears canpack in: 1.wooden crate 2.carton box 3.as request for precision CNC machining;
Size:customized;Selling Units:Single item;
Single gross weight:0.201 KG;Weight range for motor housing:0.5-50kgs;
custom:customized casting and cnc machining transmission parts;Type:Gear Box;
Product Name:Precision Steel Mechanical Spur Gear machining transmission gears;Model Number:OEM;
Applicable vehicle:Higer;Brand Name:customized;
Product Description

 Custom CNC Machined Precision Steel Mechanical Spur Gear machining transmission gears

Technical detail:



Material

 Carbon Steel

 SAE1020, SAE1045, Cr12, 40Cr, Y15Pb, 1214Letc



 Alloy Steel

 20CrMnTi, 16MnCr5, 20CrMnMo, 41CrMo, 17CrNiMo5etc



 Brass/Bronze

 HPb59-1, H70, CuZn39Pb2, CuZn40Pb2, C38000, CuZn40etc

 Machining  Process

 Gear Hobbing, Gear Milling, Gear Shaping, Gear Broaching,

 Gear Shaving, Gear Grinding and Gear Lapping

 Modules

 1.0, 1.25, 1.5, 1.75, 2.0, 2.25, 2.5....8.0 etc

 Tolerance  Control

 Outer Diameter

 ±0.005 mm



 Length Dimension

 ±0.05 mm

 Teeth Accuracy

 DIN Class 4, ISO/GB Class 4, AGMA Class 13, JIS Class 0

 Heat Treatment

 Quenching & Tempering, Carburizing & Quenching, High-frequency Hardening, Carbonitriding......

 Surface Treatment

 Blacking, Polishing, Anodization, Chrome Plating, Zinc Plating, Nickel Plating......

 Standard

 DIN, ISO/GB, AGMA, JIS

Weight

Max 15Tons





parts. We export to more than 20 countries on 6 continents and have been doing so for more than 10 years.

Our main product line includes sand casting, precision casting, die casting,forging and

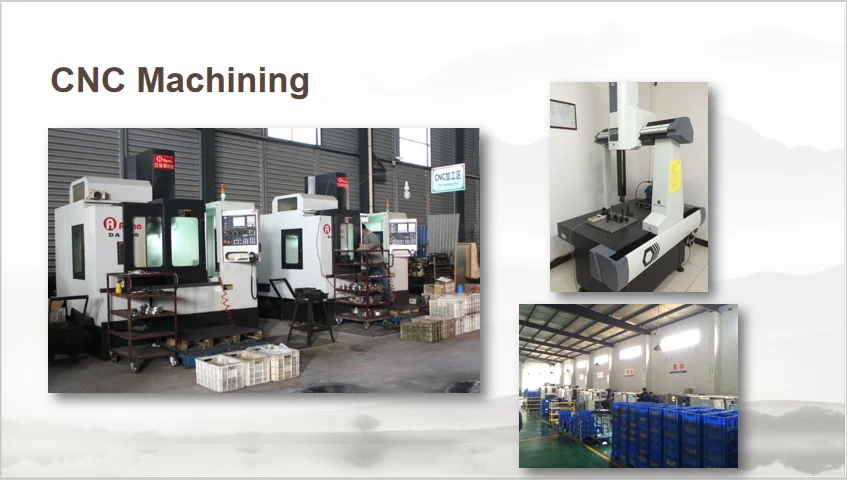

CNC turning. We have a strong and highly efficient R&D team which can design and make OEM/ODM

products according to your ideas and samples.

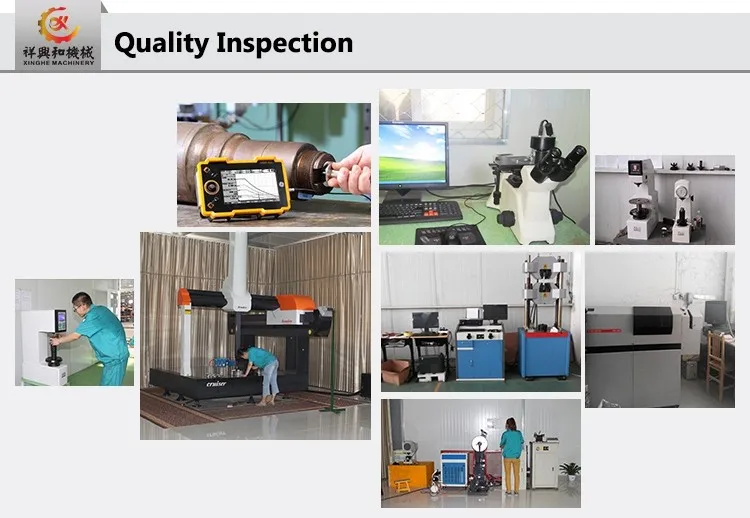

Quality Report

We have the chemical elements analysis centre and the mechanical testing centre

which include the following quality control measures:

Spectrographic analysis, magnaflux crack detection, ultrasonic detection, dynamic fatigue testing,

hardness testing, proof and ultimate breaking strength test... TUV DIN EN ISO 9001: 2000 & ISO/TS16949 available
