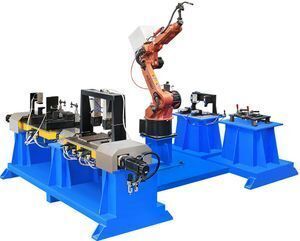

HWASHI Factory Direct Sale CNC Stainless Steel Furniture Industrial Welding Manipulator

Supplier: Guangdong Hwashi Technology Inc.
Region: Guangdong, China
Contact: Ms Kary Hou
Price: $15000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Single package size:	1.5X1X2.5 cm;	Certification:	ISO9001:2008 CE;
Brand Name:	Hwashi;	Package Preview:	https://sc02.alicdn.com/kf/HLB1jiUGaLLsK1Rjy0Fbq6xSEXXaZ.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HLB13cAKaITxK1Rjy0Fgq6yovpXaz.jpg_640x640.jpg;
Name:	HWASHI 6 Axis Stainless Steel Fule Tank Robotic Welding Machine;	Horizonal Travel(mm):	1400mm;
Repeat Positioning Accuracy (mm):	±0.05;	Single gross weight:	500 KG;
Power(W):	380VAC;	Robot arm reaching distance:	1400-2000mm;
Motion Range (°):	±360;	Place of Origin:	Guangdong China;
After-sales Service Provided:	Field installation, commissioning and training;	Moving Radius (mm):	893;
Dimension(LWH):	Customised;	Applicable Industries:	Manufacturing Plant;
Package Type:	Wooden packaging;	Driving Mode:	AC servo driving;
Condition:	New;	DOF:	6;
Weight:	8kg;	Warranty:	1 year;
Selling Units:	Single item;	After-sales Service Provided:	Engineers available to service machinery overseas;
Vertical Travel(mm):	1.5-2m;	Max Speed (°/S):	270;
Service Life:	8-10 year;

SPECIFICATION

Name			HS-RAW06
Type			Standard Type
Structure			6-axis, independent multiple articulation
Wrist Load			6kg
Motion Range		Max Reaching Distance	1437mm
		Min Reaching Distance	404mm
		Front and Back Motion Range	1033mm
Motion Speed	Arm	Rotation	225°/S
		Lifting Arm	225°/S
		Stretching	225°/S
	Wrist	Rotation	425°/S
		Bending	425°/S
		Reverse	629°/S
Repeated Positioning Accuracy			Within ±0.08mm
Servo Motor		Total Power	3400W
Servo Motor		Brake Specs	All shaft-driven brake
Installation			Normal
Weight			About 170kg

FAQ

1. Are you manufacturer or trading company?
Answer: We are welding machine manufacturer. We have been in the welding industry for 20 years. We have the rich experienced technical team which can provide you the most professional advice.

2. What information do you need to give me proper recommendation?
Answer: In order to recommend you the suitable machine model, please send us the detailed information regarding your product. Like material, thickness, welding position, minimum and maximum size of product, welding requirement, etc. It would be better if you could send us your product drawings. Then our engineer will recommend you the machine according to your welding requirement.

3. Can you provide customized service for our product?
Answer: Yes. We will provide you the professional robotic welding system solutions according to your specific product. Only you need to send us your detailed product drawings and welding requirement, then we will come out with the customized technical proposal for you.

4. What's the warranty period and delivery time?
Answer: Warranty period is 12 months.

5. Can you send engineer to our country for setting up the machine?
Answer: Yes. We will send engineer to your country to help installation and commissioning, and training. Any problems, we can also provide online service.

6. I want to know the welding quality for our product, what should I do?
Answer: You can send your samples to our factory to do test welding. After test welding, we will send the welding video and pictures to you for reference. Also we will send the samples back to you for verification.

DESCRIPTION

World Class Speed Robot

Robot arm model: HS-RAW06, be able to lift 6kg of item. The motion radius is 1437mm which means the maximum reaching distance is 1437mm.
Front and back distance could reach 1033mm. Six-axis movement.

HS-RAW Series robot improves the accuracy and efficiency

Improved drives and motors for accurate positioning and better repeatability.
Slim and compact design allows closer installation in less floor space.
Maintainability is improved with easier inspections and parts replacement.

COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification.

Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.

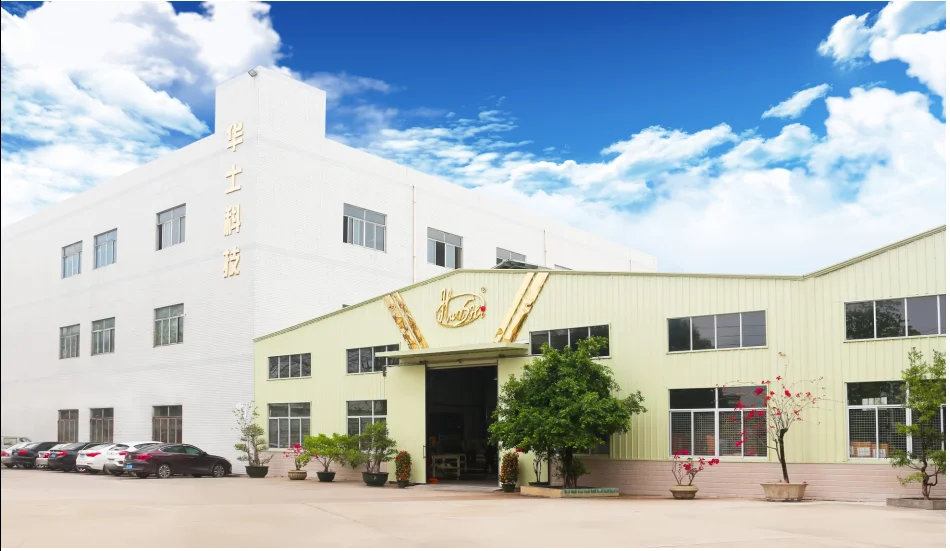

Company Introduction
