Railway Steel Rail Turnouts

Supplier: Tangshan Junnan Trade Co., Ltd.
Region: Hebei, China
Contact: Ms nan Jun
Price: $1200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	HENGTONG;	Standard:	GB/T1222;
HS Code:	730230;	Port:	Xingang/Caofeidian or any other main ports in China;
Quality Control:	Machine Adjustment;	Application:	Railway Parts;
Length:	12-36m;	Packaging Detail:	Sseaworthy; In layers on plates,wrapped with steels, and fixed to container with steel bars.;
Dimensions (L x W x H) (mm):	Customer's Drawing;	Supply Ability:	15 Set/Sets per Month;
Material:	U71Mn,U75V;	Certificate:	ISO9001:2008;
Place of Origin:	Hebei China;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
Model Number:	Railway Steel Rail Turnouts;	Type:	Railway Turnout;

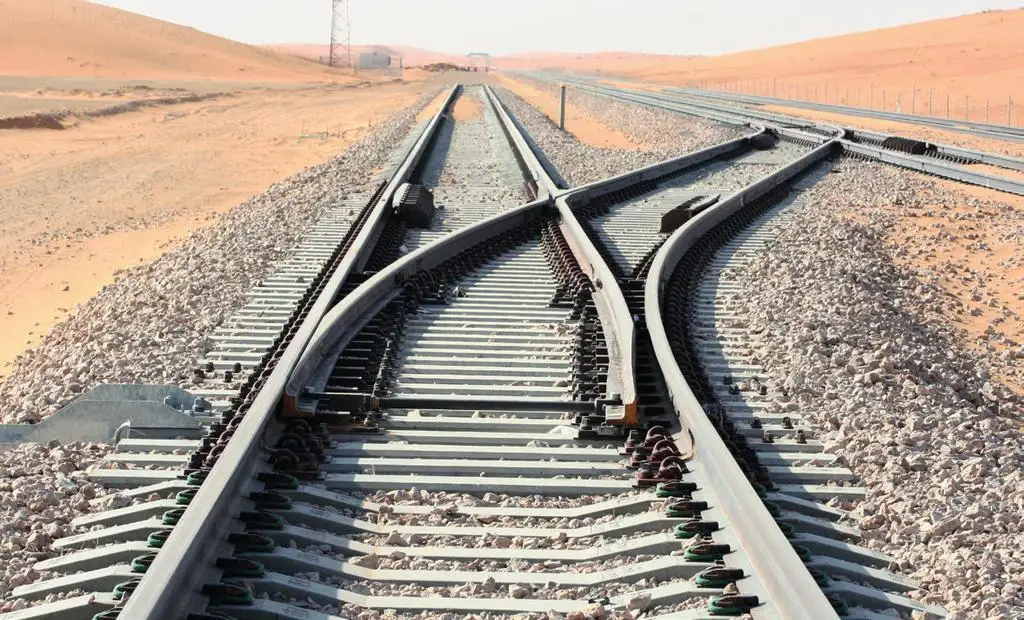

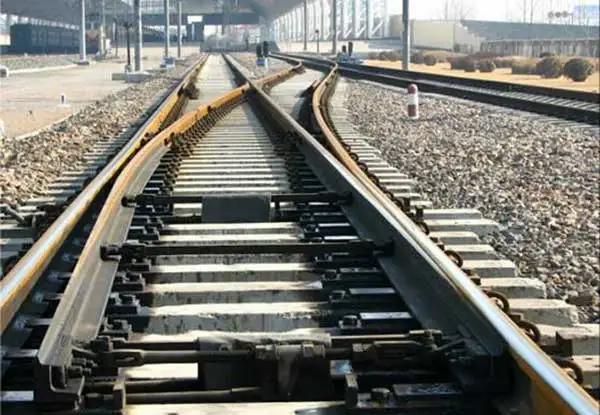

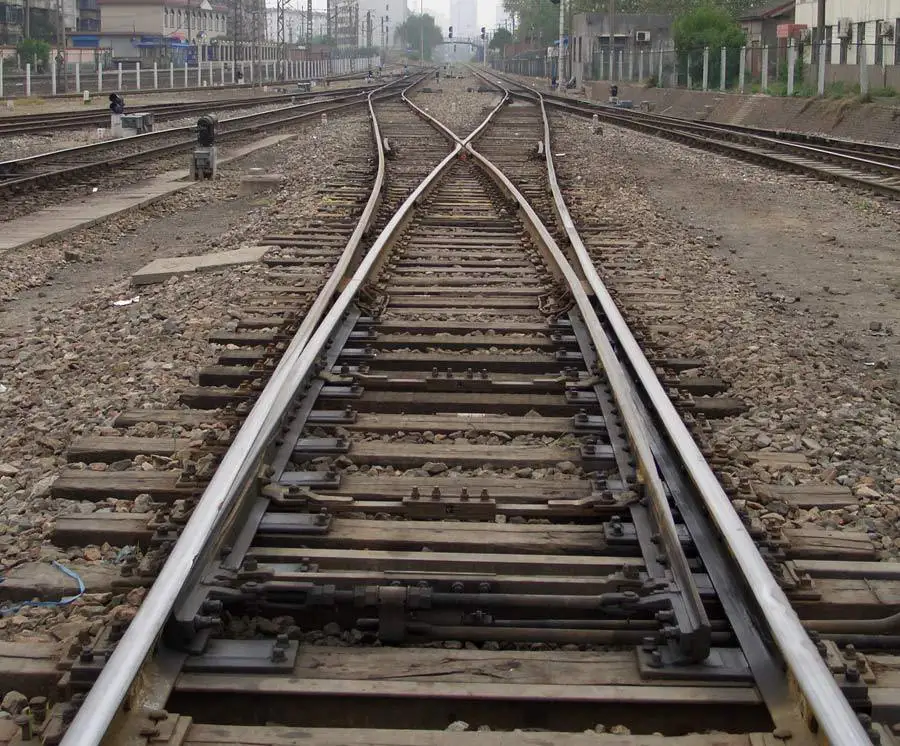

Railway Track Crossing Turnout

Rail Size	Turnout Number	Rail Gauge	Frog Type	Track Switches Type
43kg	1/6,1/6.5/1/7,1/8,1/9,1/12	1000mm 1067mm 1435mm 1520mm 1600mm 1676mm	Bolted Rigid Frog, Solid Manganese, Alloy Steel Frog	Single Turnout, Double Slips Turnout, Three-way Turnout, Equilateral Track Switches
50kg	1/6,1/6.5/1/7,1/8,1/9,1/10,1/12,1/18
60kg	1/6,1/7,1/8,1/9,1/10,1/11,1/12,1/18,1/30
75kg	1/9,1/12,1/18
UIC50	1/6,1/7,1/705,1/8,1/9,1/1,1/12,1/18
UIC54	1/6,1/7,1/705,1/8,1/9,1/1,1/12,1/18
UIC60	1/6,1/7,1/705,1/8,1/9,1/1,1/12,1/18
BS80	1/8,1/10,1/12
BS100	1/8,1/12,1/18

VIEW MORE
