Industrial fruit and vegetable pineapple orange juicer machine ginger juice extractor details
After-sales Service Provided:Online support;Port:Qingdao ningbo shanghai;
Supply Ability:100 Set/Sets per Month;Power(W):1.5kw;
Warranty:1 year;Brand Name:CNMC;
Model Number:CNMC500;Packaging Detail:Standard domestic wooden frame packaging for industrial juicer machine.;
Payment Terms:L/C,T/T;Machinery Function:Fruit and vegetable juicer;
Weight:100kg;Application fields:Snack food factory,Commercial catering,Flour mill,Fruit processing plant,Vegetable processing plant,Seasoning plant;
Place of Origin:Shandong China;Voltage:220/380;
Dimension(L*W*H):780*320*860 mm;Raw material:Water,Fruit,Vegetables;
Output product name:Fruit and vegetable juicer;Certification:ce;
Product Description

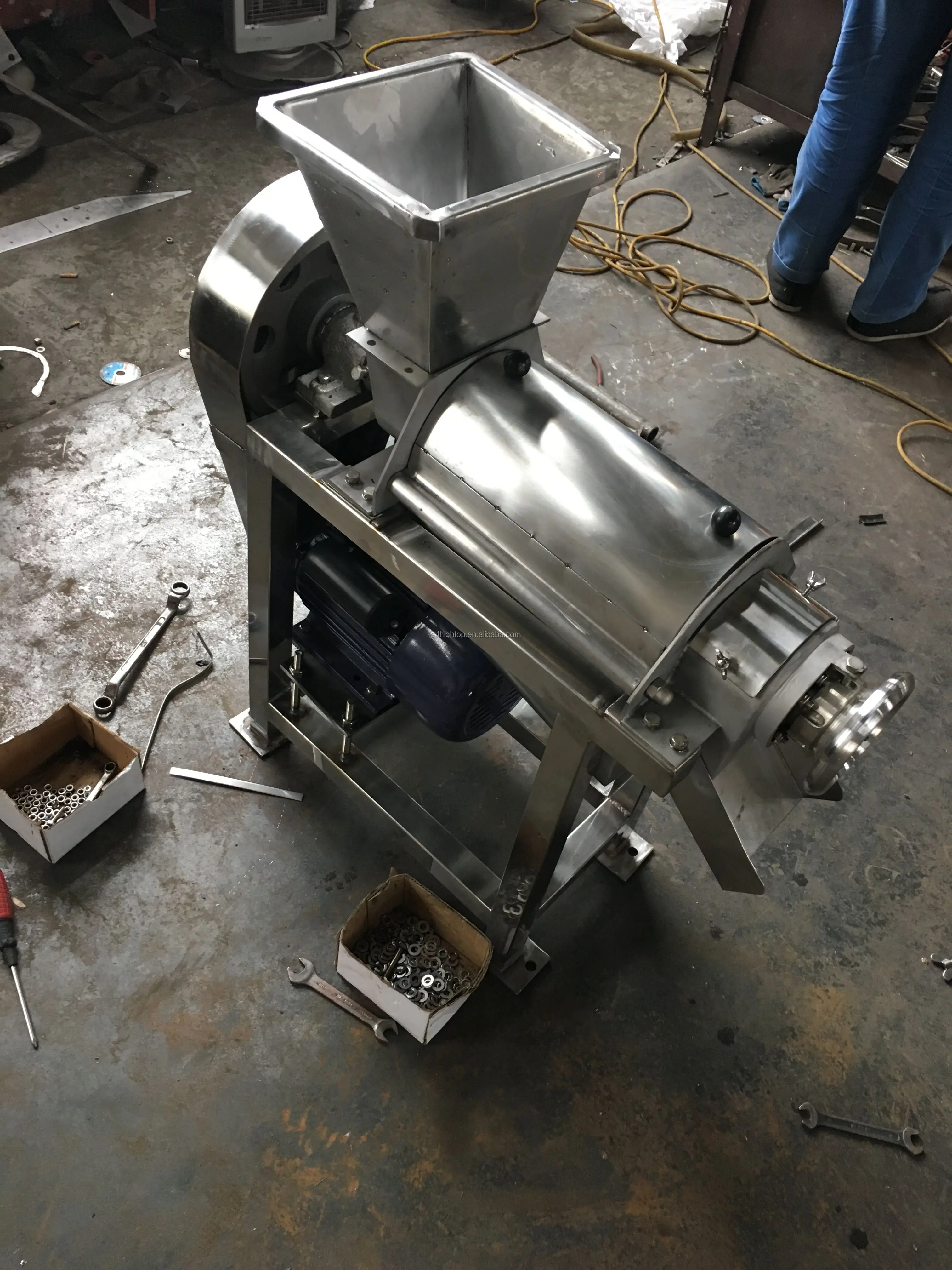

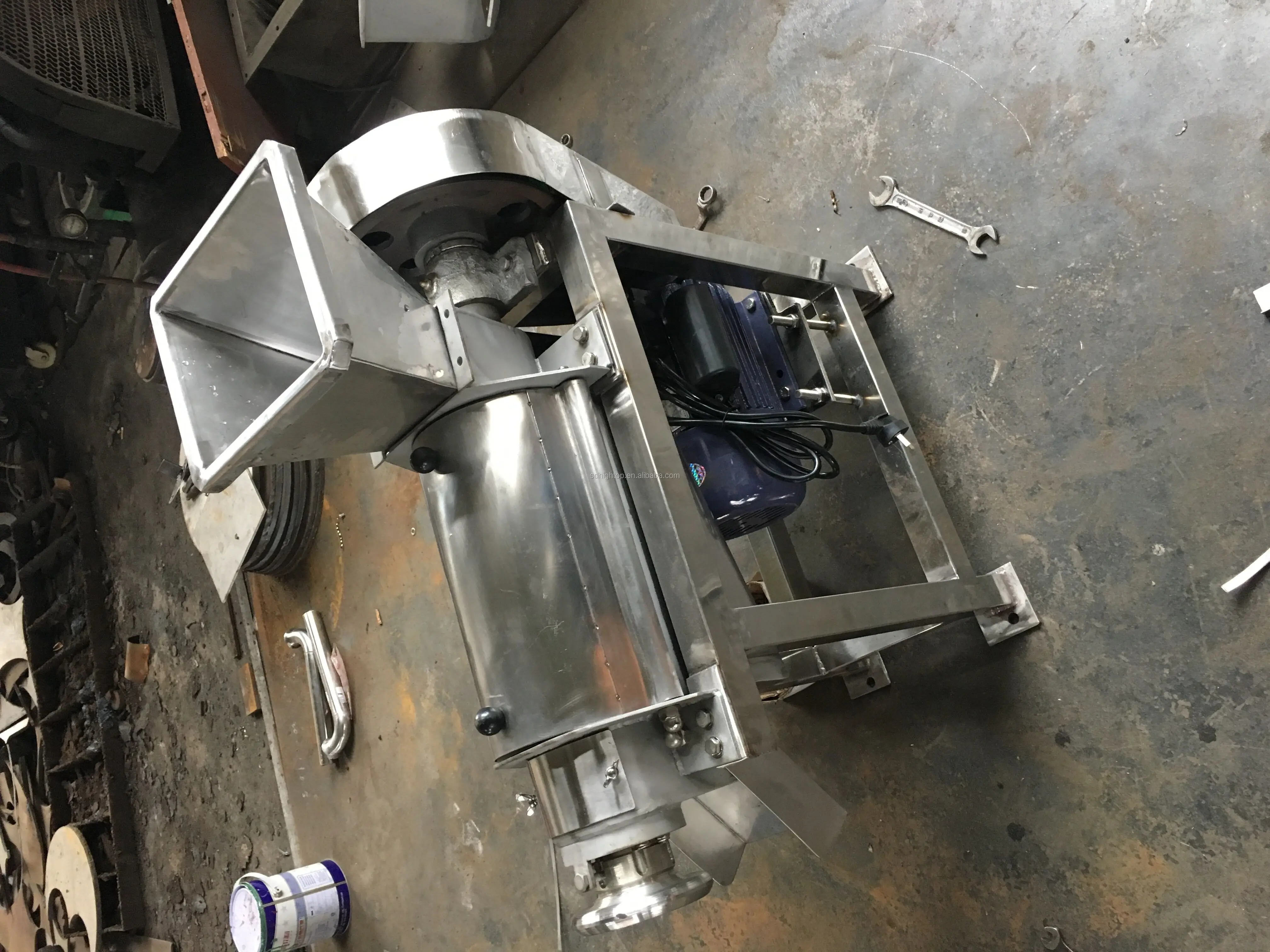

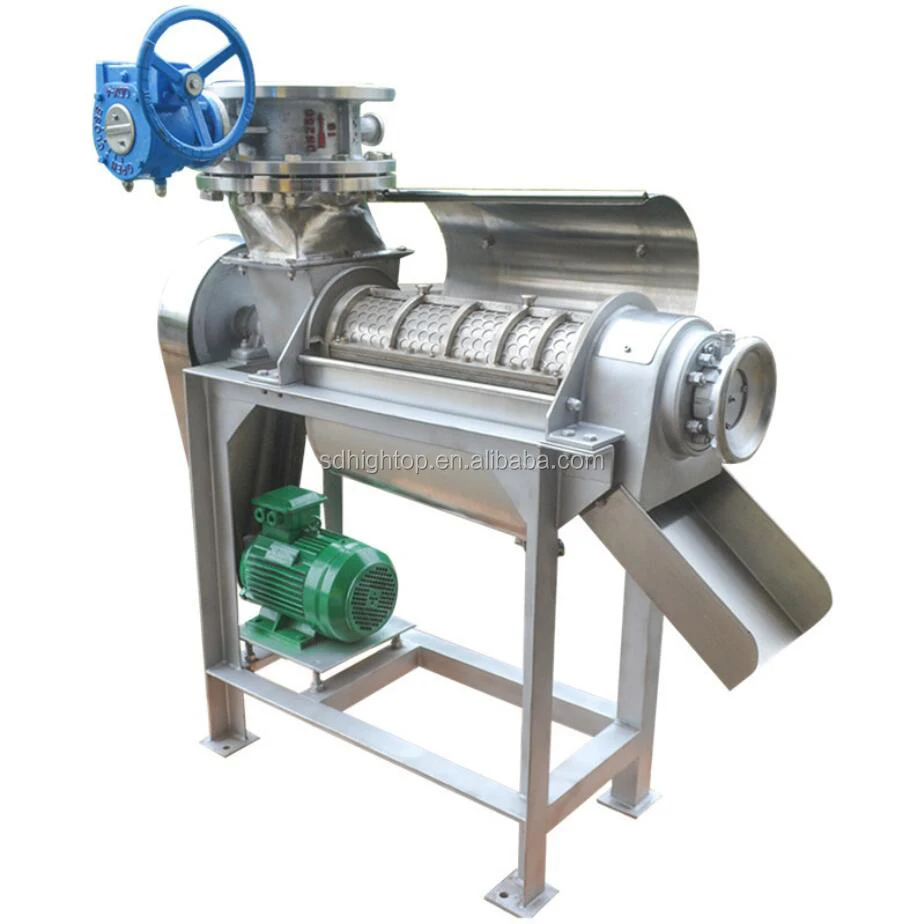

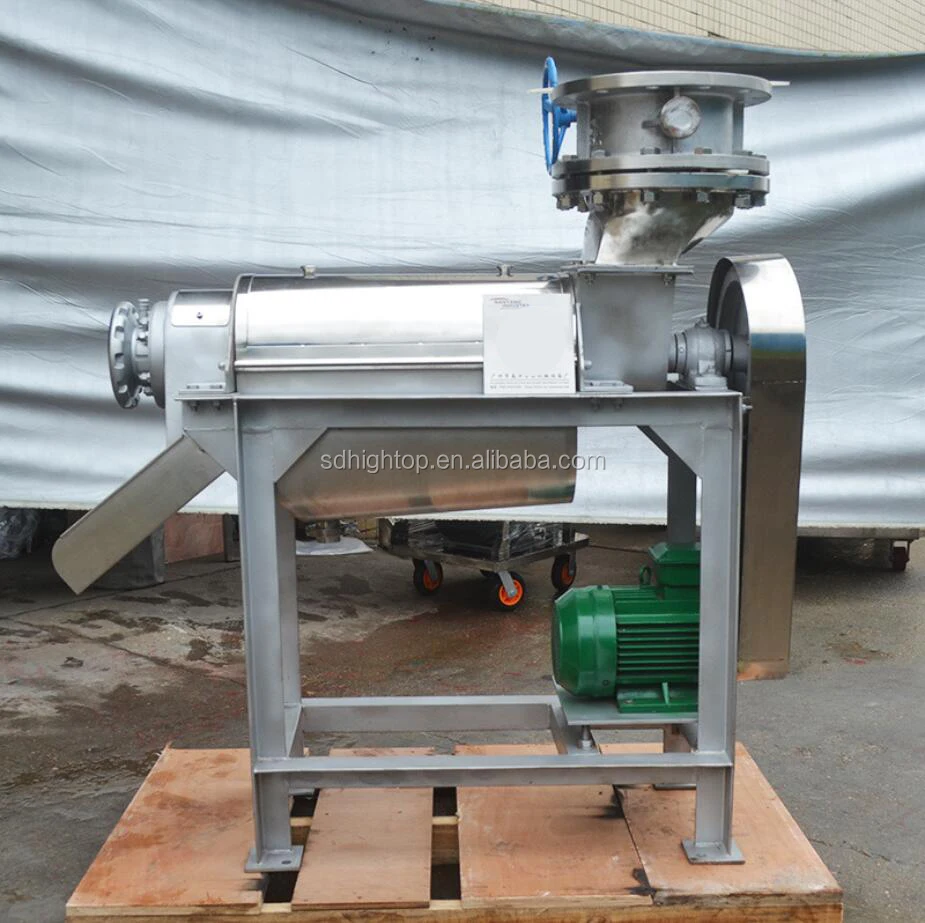

 Industrial fruit and vegetable pineapple orange juicer machine ginger juice extractor

Feature:

Advanced design,compact structure,beautiful.


The aircraft are assembled from crusher and screw juicer two parts, automatic completion of crushing, juice, slagging process.


Tapered screw, large capacity, high juice.


High efficiency, low noise, no pollution.


All material contact parts are stainless steel.

Working Principle:

This equipment is the main component is spiral diameter along the bottom slag is expected to export direction gradually increase and pitch gradually reduce, when the material being spiral propulsion for spiral cavity volume reduction, form for material crushing. Screw spindle rotation direction from the feed hopper to slag trough direction, as the clockwise direction.

Raw material add to the feed hopper, under the propulsion of spiral compression, the squeezing the juice through a filter at the bottom of the gravy, while the waste and the conical part of the surge tank by screw formed between the annular gap discharge, pressure regulating head along the axial movement of adjustable gap size. From the slag trough of equipment used in clockwise (to turn to when looking into the hopper shaft socket, regulating the head to the left, the gap is narrowing, conversely gap bigger.) Change the size gap, changing the resistance of slag discharge. Can change rate of slag, but if the gap is too small, the strong pressure, part of slag particles with juice by filter out, although the juice increased, but the quality of juice relative decline, the size of the gap should be depending on the user's specific technical requirements.

+
Model
Output (t/h)
Power(kw)
Dimensions(mm)
CNMC500
0.1-0.5
1.5
1100*265*920
CNMC1500
0.3-1.5
4
1350*560*1650
CNMC2500
0.6-2.5
11
1980×680×1620
