• Supplier: Radiator
  • Region: Shandong, China
  • Contact: Ms. yan liJob Title:Manager
  • Price: $150,000.00-$300,000.00 /Set
  • Min. Order: 1 Set (MOQ)
Hot Selling Sand Dredging Machine For Sale details
Certification:ISO9001;Condition:New;
Dredging Depth:15 m;Draught:120 cm;
Warranty:12months;Weight:80t;
Supply Ability:100 Set/Sets per Year;Port:Qingdao;
Dimension(L*W*H):12.5*4.6*1.3m;Working capacity:100m3/h;
Packaging Detail:container or in bulk.;Weight:80T;
color:Customized;Power Type:Diesel;
Brand Name:Heng An;Usage:dredging mud or sand in river,offshore,lake..;
Delivery Detail:Shipped in 60 days after payment;Model Number:HACSD200;
Payment Terms:L/C,T/T;After-sales Service Provided:Engineers available to service machinery overseas;
Place of Origin:Shandong China;Type:Cutter Suction Dredger;
Max.Dredging depth:10m;

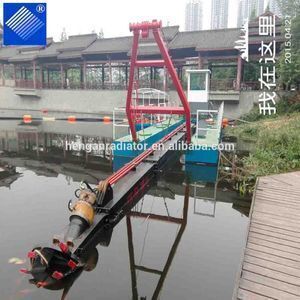

                                                              Sand Dredging Machine



1).Completely assembled and fully tested afloat before delivery







2).Simple ,rapid assembly and dismantling







3).Standard design, allowing early delivery and low price







4).Spare parts available from stock







5).Reliable hydraulic system







6).Fresh water engine cooling system







7).One man operation







8).Efficient fuel consumption

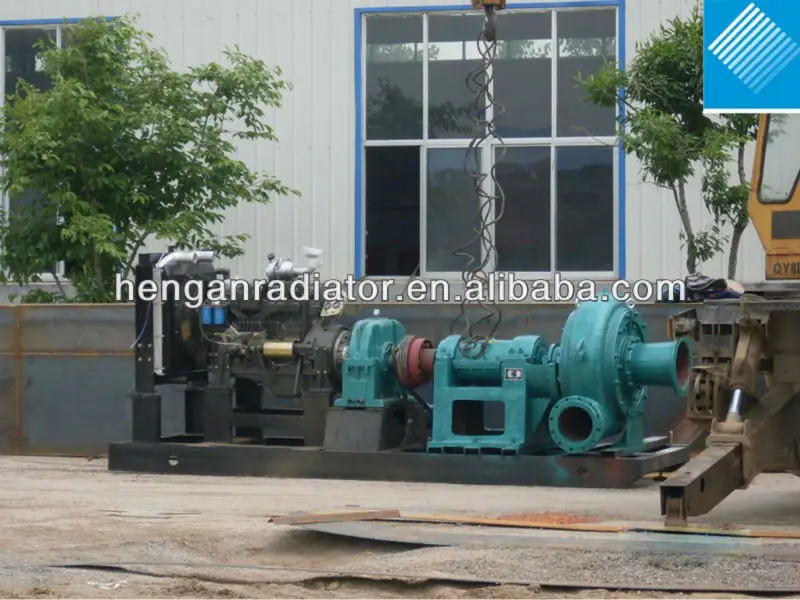

The dredger is equipped with a rapid connection-disconnection system for the pontoons, achieved using bolts at deck level, and hooks at the bottom. Further salient features of the vessel are the compact dredge pump drive incorporating a reduction gear with integrated pump bearing and a fresh water engine cooling system, based on the well cooling principle.





1.--Parameter

Can modify and adjust according to customers' project requirement.



+

No.

Principal Particulars

1

Model

HACSD200

HACSD260

HACSD300

HACSD350

HACSD400

HACSD450

HACSD500

2

Max. Production Capacity(solid sand)

100m3/h

150m3/h

220m3/h

300m3/h

400m3/h

500m3/h

640m3/h

3

Max. Discharge Distance

900m

1000m

1000m

1200m

1300m

1400m

1700m

4

Dredge Pump Suction/discharge pipe dia.(mm)

250/200

300/250

350/300

400/350

450/400

400/450

550/500

5

Main Engine power(KW)

176

294

330

470

735

735

882

6

Cutter Power(KW)

25

30

50

70

75

110

140

7

Hydraulic Ladder winch

30KN

100m

40KN

100m

40KN

100m

60KN

110m

80KN

110m

100KN

120m

100KN

120m

8

Hydraulic Swing winch(2sets)

30KN

100m

40KN

100m

40KN

100m

60KN

100m

80KN

110m

100KN

110m

100KN

110m

9

Spuds

2

2

2

2

2

2

2

10

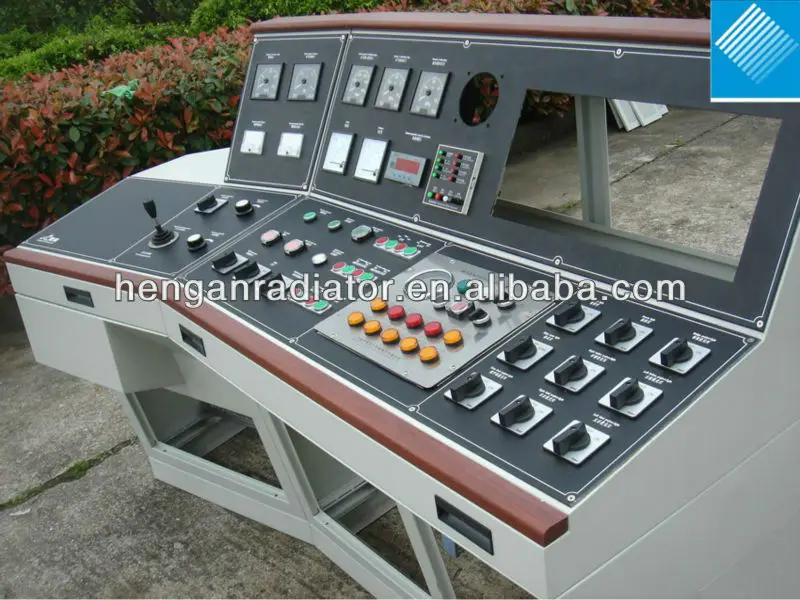

Control system

PLC

PLC

PLC

PLC

PLC

PLC

PLC

.

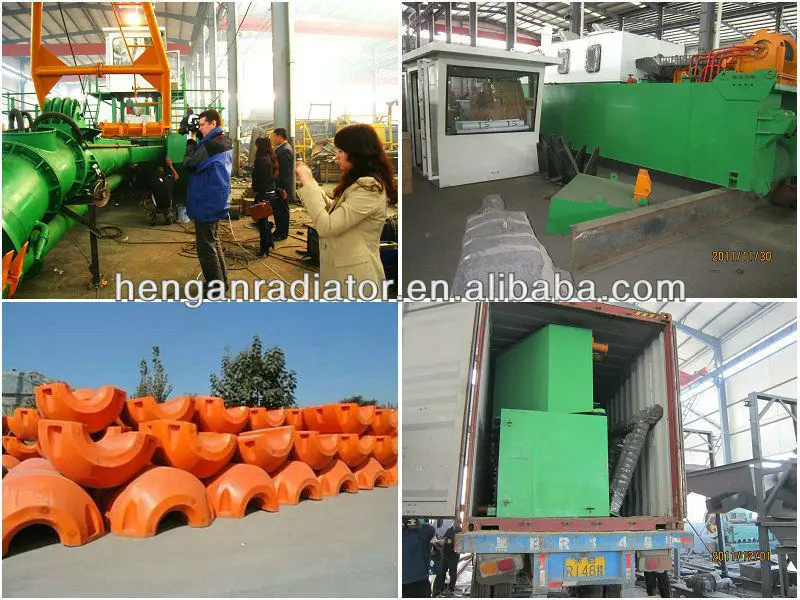

2.--Customers visit our Factory

We will show you detailes and much more things about our Group company.Many senior Engineers and professional technicians composed of the Class One Technical Department.





3.--Perfect manufacturing technique and welding level make the dredger in the high grade,give you best visual effect.

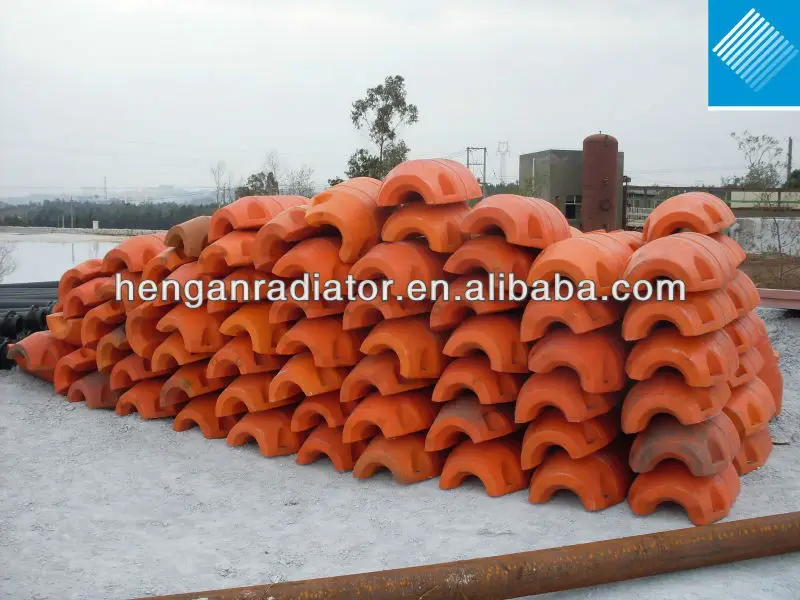

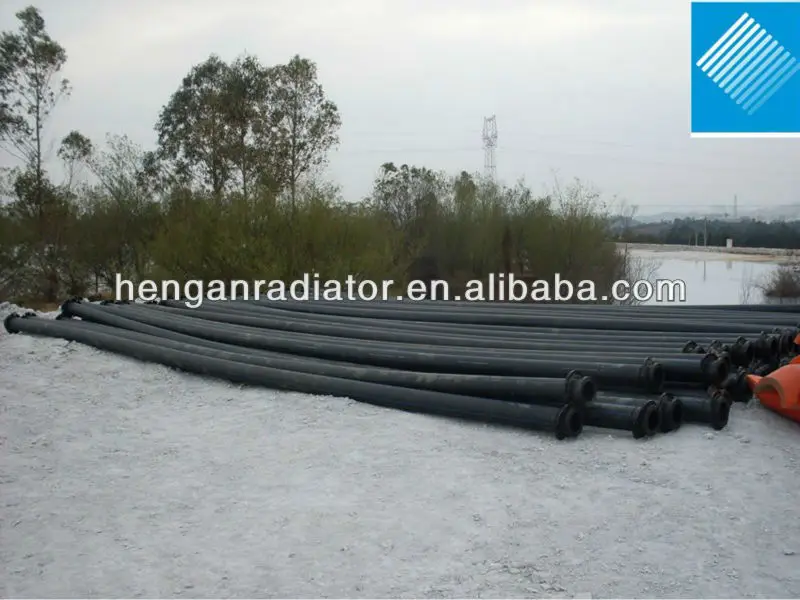

4.--Shippment :along with spare parts ,pipelines and HDPE Floats and so on.













All ofthe spare parts of the dredger can be  available within one week!











5 .--more details please don't hesitate to contact me.







Wish you a nice day!
