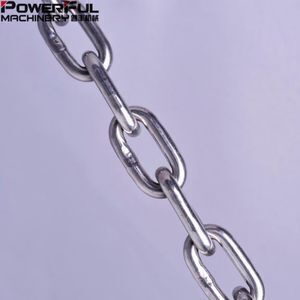

WHOLESALE Large Link 316 Stainless Steel Chain

Supplier: Qingdao Powerful Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Linda Zhou
Price: $1.00 / >=100 meters
Min. Order: 100 meters

Click here to contact

Product details

Supplier Type:	Chain Manufacturer;	Structure:	welded chain;

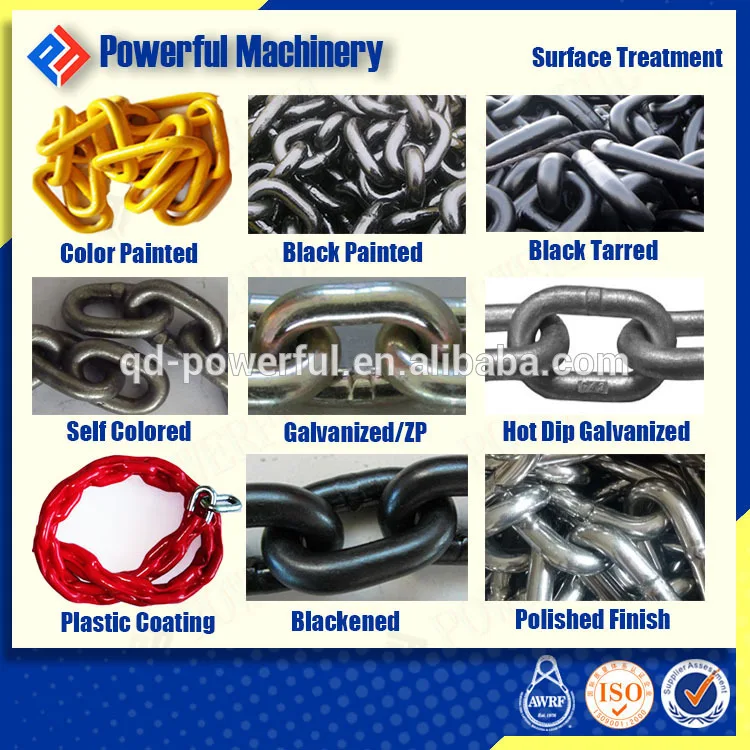

Surface:	Galvanized, Black;	Structure:	Welded Chain;
keywords:	Stainless Steel Chain;	Supply Ability:	300 Ton/Tons per Month from Chain Manufacturer;
Grade:	G30, G43, G70, G80;	Standard or Nonstandard:	Standard;
Type:	Large Link, Long Link, Short Link,;	Function:	Transport Chain;
Description:	WHOLESALE Large Link 316 Stainless Steel Chain;	Material:	Steel;
Packaging Detail:	Chain coil in standard seaworthy package;	Payment Terms:	L/C,T/T,Western Union,Paypal or Negotiable;
Place of Origin:	Shandong China;	Application:	Lifting, Transport, Chain Sling;
Port:	Qingdao, Shanghai, Ningbo or any port from China;	Packing:	Chain coil in seaworthy packing;
Brand Name:	Powerful Chain;	Material:	Stainless Steel, Iron, Steel,;
Model Number:	Steel;	Delivery Detail:	Within 20 Days after receving 30% deposit for Chain;

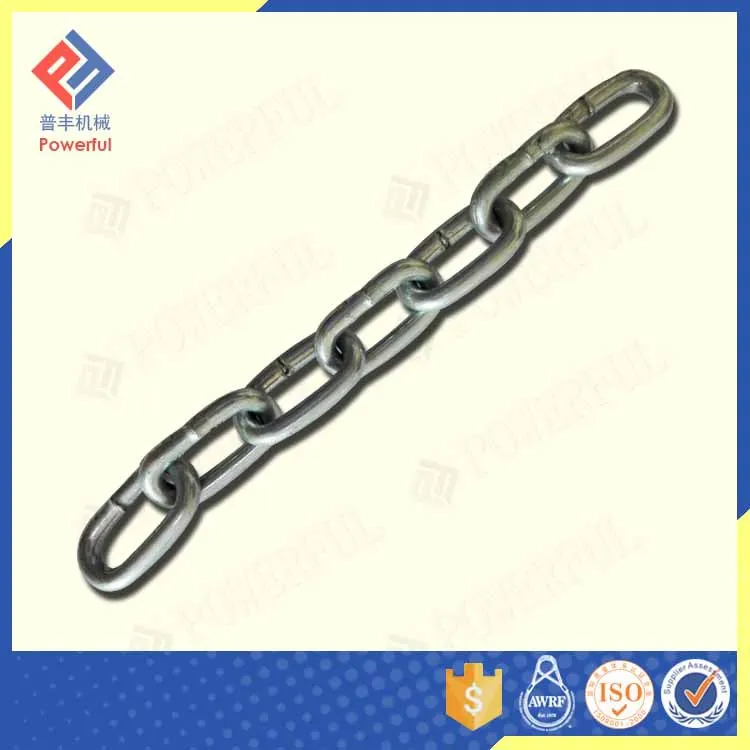

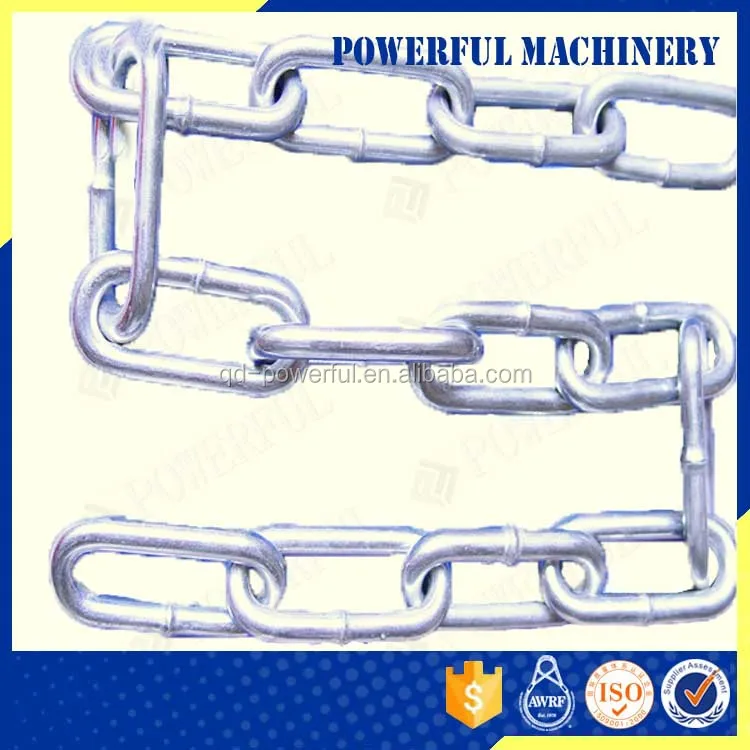

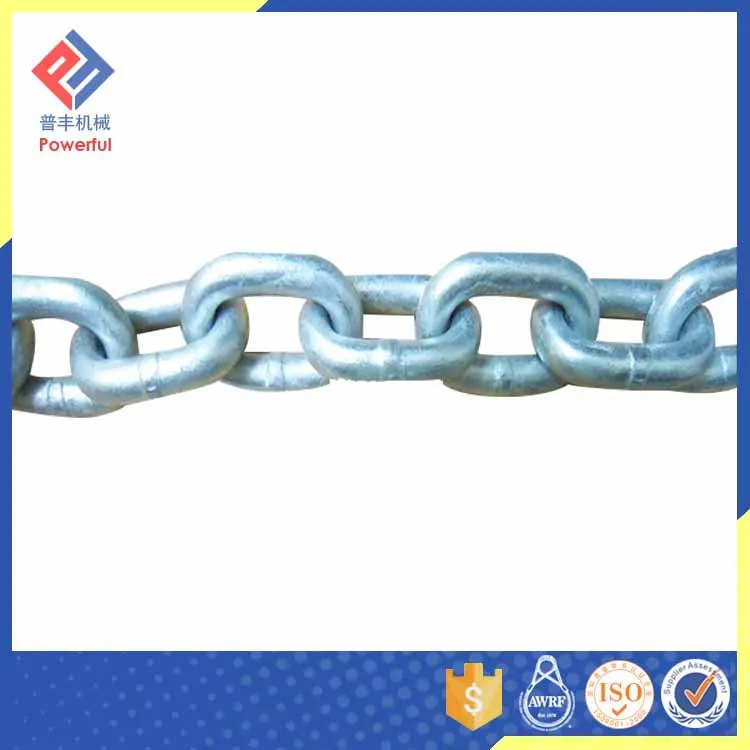

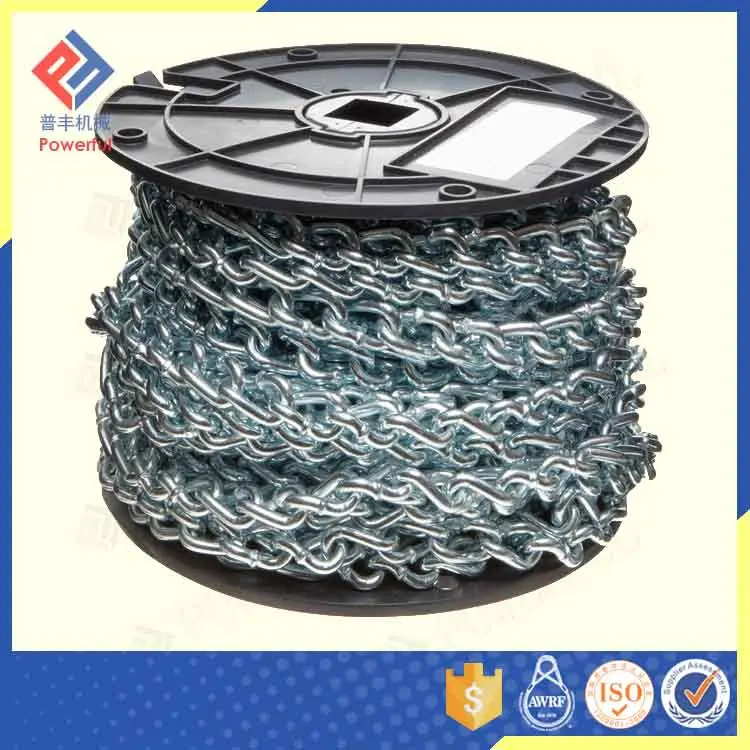

WHOLESALE Large Link 316 Stainless Steel Chain

Our chain is manufactured with the highest quality and welded with percision.

All our chain comes with TUV and CE certification.

U.K. TYPE SHORT Link Chain

Short Link Specification		Test Load (KG)	Breaking Load (KG)	NETWT PER 200 FT
D (IN)	D (MM)	Test Load (KG)	Breaking Load (KG)	B.F.	H.D.G.
1/8	3.20	200	400	11.40	11.74
5/32	4.00	300	600	18.60	19.00
3/16	4.70	400	800	26.20	27.00
7/32	5.50	550	1100	36.80	38.00
1/4	6.35	750	1500	50.00	51.50
5/16	7.94	1200	2400	80.00	82.40
3/8	9.50	1700	3400	122.00	125.70
7/16	11.11	2300	4600	164.00	169.00
1/2	12.70	3000	6000	210.00	216.00
5/8	15.80	4700	9400	334.00	344.00
3/4	19.00	6800	13600	485.00	499.00
7/8	22.20	9250	18500	656.00	675.00
1	25.40	12150	24300	870.00	896.00

U.K. TYPE Medium Link Chain

Short Link Specification		Test Load (KG)	Breaking Load (KG)	NETWT PER 200 FT
D (IN)	D (MM)	Test Load (KG)	Breaking Load (KG)	B.F.	H.D.G.
1/8	3.20	200	400	10.40	11.00
5/32	4.00	300	600	17.40	18.00
3/16	4.70	400	800	24.40	25.00
7/32	5.50	550	1100	34.00	35.00
1/4	6.35	750	1500	48.80	50.00
5/16	7.94	1200	2400	76.00	78.00
3/8	9.50	1700	3400	111.00	114.00
7/16	11.11	2300	4600	154.00	158.00
1/2	12.70	3000	6000	194.00	200.00
5/8	15.80	4700	9400	303.00	312.00
3/4	19.00	6800	13600	432.00	445.00
7/8	22.20	9250	18500	586.00	603.00
1	25.40	12150	24300	770.00	792.00

U.K. TYPE Long Link Chain

Short Link Specification		Test Load (KG)	Breaking Load (KG)	NETWT PER 200 FT
D (IN)	D (MM)	Test Load (KG)	Breaking Load (KG)	B.F.	H.D.G.
1/8	3.20	200	400	10.40	10.70
5/32	4.00	300	600	16.60	17.50
3/16	4.70	400	800	22.40	23.30
7/32	5.50	550	1100	32.00	33.00
1/4	6.35	750	1500	43.50	44.80
5/16	7.94	1200	2400	68.00	70.00
3/8	9.50	1700	3400	96.00	99.00
7/16	11.11	2300	4600	126.00	129.00
1/2	12.70	3000	6000	167.00	172.00
5/8	15.80	4700	9400	256.00	264.00
3/4	19.00	6800	13600	381.00	392.00
7/8	22.20	9250	18500	527.00	543.00
1	25.40	12150	24300	696.00	716.00

Proof Coil Chain U.S. Type NACM2010 (G30)

Nominal Size		Working Load Limit		Proof Test (Min)		Breaking Force (Min)
D (IN)	D (MM)	LBS	KG	LBS	KN	LBS	KN
1/8	3.20	400	180	800	3.6	1600	7.2
3/16	4.70	800	365	1600	7.2	3200	14.4
1/4	6.35	1300	580	2600	11.6	5200	23.2
5/16	7.94	1900	860	3800	16.9	7600	33.8
3/8	9.50	2650	1200	5300	23.5	10600	47.2
7/16	11.11	3700	1680	7400	32.9	14800	65.8
1/2	12.70	4500	2030	9000	40.0	168000	80.0
5/8	15.80	6900	3130	13800	61.3	27600	122.6
3/4	19.00	10600	4800	21200	94.3	42400	188.6
7/8	22.20	12800	5810	25600	114.1	51200	228.2
1	25.40	17900	8140	35800	159.1	71600	318.2

High Test Chain U.S. Type NACM2010 (G43)

Nominal Size		Working Load Limit		Proof Test (Min)		Breaking Force (Min)
D (IN)	D (MM)	LBS	KG	LBS	KN	LBS	KN
1/4	6.35	2600	1180	3900	17.3	7800	34.6
5/16	7.94	3900	1770	5850	26.0	11700	52.0
3/8	9.50	5400	2450	8100	36.0	16200	72.0
7/16	11.11	7200	3270	10800	48.0	21600	96.0
1/2	12.70	9200	4170	13800	61.3	27600	122.6
5/8	15.80	13000	5910	19500	86.5	39000	173.0
3/4	19.00	20200	9180	30300	134.7	60600	269.4
7/8	22.20	24500	11140	36750	163.3	73500	228.2

Transport Chain U.S. Type NACM2010 (G70)

Nominal Size		Working Load Limit		Proof Test (Min)		Breaking Force (Min)
D (IN)	D (MM)	LBS	KG	LBS	KN	LBS	KN
1/4	6.35	3150	1430	6300	28.0	12600	56.0
5/16	7.94	4700	2130	9400	41.8	18800	83.6
3/8	9.50	6600	2990	13200	58.7	26400	117.4
7/16	11.11	8750	3970	17500	77.8	35000	155.4
1/2	12.70	11300	5130	22600	100.4	45200	200.8
5/8	15.80	15800	7170	31600	140.4	63200	280.8
3/4	19.00	24700	11200	49400	219.6	98800	439.2

Lifting Chain U.S. Type NACM2010 (G80)

Nominal Size		Working Load Limit		Proof Test (Min)		Breaking Force (Min)
D (IN)	D (MM)	LBS	KG	LBS	KN	LBS	KN
1/4	6.35	3150	1430	6300	28.0	12600	56.0
5/16	7.94	4700	2130	9400	41.8	18800	83.6
3/8	9.50	6600	2990	13200	58.7	26400	117.4
7/16	11.11	8750	3970	17500	77.8	35000	155.4
1/2	12.70	11300	5130	22600	100.4	45200	200.8
5/8	15.80	15800	7170	31600	140.4	63200	280.8
3/4	19.00	24700	11200	49400	219.6	98800	439.2

DIN 763 Link Chain

Size	Working Load	Test Load	Breaking Load	Weight Per M
MM	KG	N	N	KG
3	55	1050	3200	0.15
4	100	2000	6000	0.27
5	160	3150	10000	0.43
6	224	4500	14000	0.63
7	300	6000	18000	0.86
8	400	8000	25000	1.1
9	530	10500	32000	1.41
10	630	12500	40000	1.75
11	790	15800	47500	2.11
12	940	18800	56500	2.55
13	1000	21200	63000	2.95
16	1600	33000	100000	4.45
18	2120	42300	127000	5.65
19	2370	47300	142000	6.25
20	2500	50000	160000	7.0
22	3170	63300	190000	8.55
25	4090	81700	245000	10.90
28	6000	120000	300000	13.9
32	8000	160000	400000	18.2

DIN 764 Link Chain

Size	Weight Per 100M	Test Load	Breaking Load	Length Per 11 Links
MM	KG	KG	KN	KG
4	31.5	400	7	0.15
5	51.4	680	11.8	0.27
6	74.0	850	16.5	0.43
8	131.5	1680	32	0.63
10	200	2630	50	0.86
13	350	4200	80	1.1
16	520	6700	125	1.41
18	650	8400	160	1.75
20	820	10000	200	2.11
23	1100	13000	250	2.55
26	1400	16000	320	2.95

Australian Short Link Chain

Size	W.L.L.	Length Per 100KG
MM	MT	B.F. (M)	H.D.G. (M)
6	0.32	114	108
8	0.53	70.5	67.0
10	0.83	45.2	42.9
12	1.50	29.5	28.0
16	2.31	17.6	16.7

Australian Medium Link Chain

Size	W.L.L.	Length Per 100KG
MM	MT	B.F. (M)	H.D.G. (M)
3	0.06	511	498
4	0.11	320	305
5	0.19	203	193
6	0.32	129	120
8	0.53	77.8	74.1
10	0.83	48.5	47.1
12	1.35	34	33.3
13	1.50	29.7	27.7
16	2.31	20.2	18.2
20	3.67	12.3	11.6
24	5.31	8.5	8.04

Australian G70 Chain

Size	Weight Per M	Length Per 500KG	Breaking Strength
MM	KG	M	KN
6	0.88	568	44.1
7	1.12	446	55.9
7.3	1.16	430	58.9
8	1.43	350	73.6
10	2.23	224	118.0
13	3.75	133	176.0

Korean Standard Link Chain

Nominal Size	Length Per PC	Weight Per PC
Short Link
MM	M	KG
3	30	4.5
4	30	9.00
5	30	12.74
6	30	13.86
7	15	14.14
8	15	17.23
9	15	22.13
12	15	45.00
15	15	75.45
16	15	76.41
19	10	78.28
Long Link
4	30	7.26
4.5	30	9.46
5	30	11.31
6	30	18.00
7	15	21.19
12	15	42.00
15	15	61.44
19	10	71.00

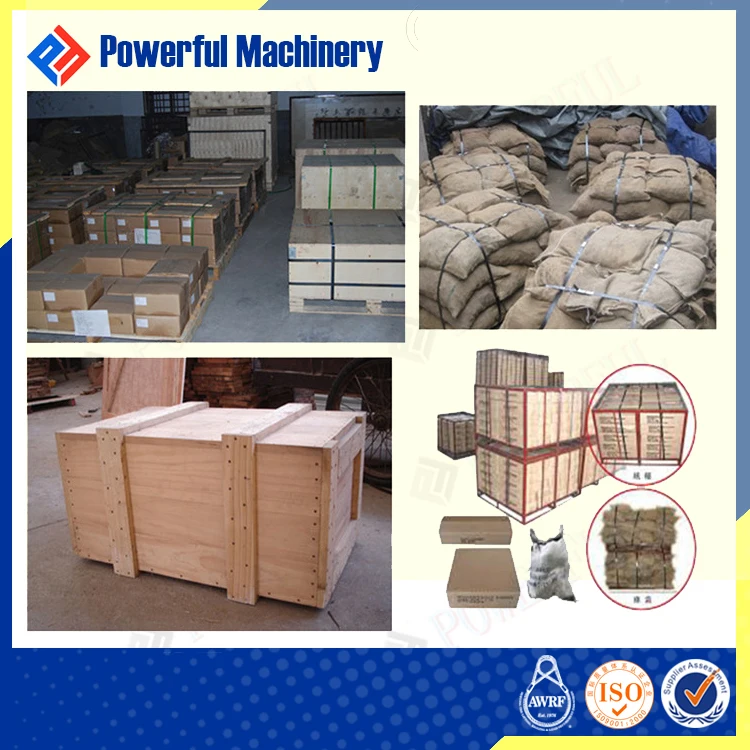

Packaging & Shipping

WHOLESALE Large Link 316 Stainless Steel Chain

All chain will be shipped default unless instructed by costumers for special packaging

Shipping: 15-30days according to the quantity of order

Company Information

Company Informations

Qingdao Powerful Machinery is capable of supplying all kinds of marine supplies, chains, rigging hardware, fasteners, and related hardware.Each product is guarantee with the highest quality. By setting up quality control stations to inspect each product with strict standards, the defective products will be eliminated before packaging and delivery. All our products are certified with ISO, DIN and CE per costumer request.

We offer competitive pricing and 24/7 costumer supports to all our business around the world.Just tell us what you need, and we’ll figure out a one-stop solution for your business to save you time and effort.We have professionals handling all our export and import needs. We are capable of delivering products all over the world.

At Qingdao Powerful Machinery we only provide the BEST product to our costumer.

Our Services

Our services

When you get right down to it, success is all about value and trust.

Value is a product of trust. The trust your costumers have in you. The trust you have in your people, products and systems. And the trust you have in your business partner.

As the leading manufacturing plant for marine supplies and rigging hardware, we know that value and trust are the ingredients for a quality relationship — and that they are earned over more than a single engagement.

No matter how big you are or where you do business, we can help you work smarter and reach your goals. Have a look at the services and products we offer, below. And let's talk.

CHAIN & CHAIN FITTINGS
- Chain

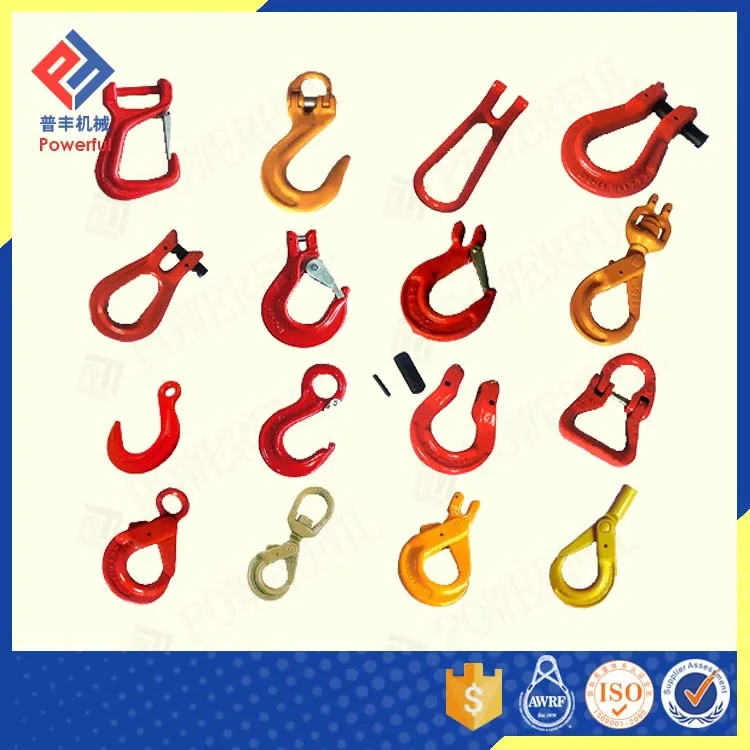

- Hooks
- Ring & Links
- Snap Hook & Quick Link
- Bolt & Nut
- Load Binder
- Swivel
STEEL WIRE ROPE & WIRE ROPE FITTINGS
- Steel Wire Rope
- Shackle
- Turnbuckle
- Wire Rope Thimble
- Wire Rope Clip
- Socket
ANCHOR CHAIN & DECK FITTINGS
- Anchor Chain
- Deck Fitting
PULLEY & BLOCK
- Pulley & Block
STAINLESS STEEL PRODUCTS
- Anchor Chain
- Stainless Steel Products

We Listen, We Learn & We Love our Costumer

Best Service, Best Quality and Best Price!!!!!!

FAQ

FAQ

Are you a Manufacturing Factory or trading company?

We started as an anchor chain factory about 20 years ago and gradually developed into a big manufacturer in marine supplies. At the same time, to meet the growing demands from our clients in new business areas, we expanded our scope to rigging hardware and fasteners, and other related hardware by setting up solid partnership with other factories. Now we’re proud to say that POWERFUL has ranked as a top supplier on chains & rigging hardware in northern China.

Where is your factory located?

Our factory is located at: #37 Wenhua Road, Jimo, Qingdao City, Shandong Province, China.

You’re welcomed to visit us any time for future cooperation.

What products do you supply?

As mentioned above, Qingdao Powerful Machinery is capable of supplying all kinds of marine supplies, chains, rigging hardware, fasteners, and related hardware.

Do you produce them all?

We produce all kinds of chains in our factory

Why are you better than the other factories?

We can provide feedback to your questions immediately 24 hours a day, 7 days a week.

We can provide a more competitive price for the same level of quality by improving the efficiency of our production process.

We can save you time and effort. Just tell us what you need, and we’ll figure out a one-stop solution for your business.

Please feel free to contact me. We are ready to assist you with your business need.
