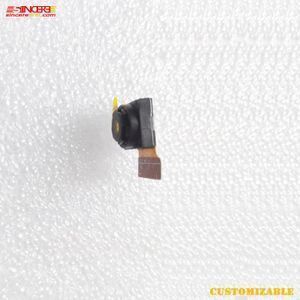

Direct Factory Price MIPI Interface camera module with Sony IMX258 13MP Cmos Camera Module
-
Supplier: Guangzhou Sincere Information Technology Ltd. -
Region: Guangdong, China -
Contact: Ms Annie Hu -
Price: $9.50 / >=5 pieces -
Min. Order: 5 pieces
| Lens Size: | 1/3.06 inch; | Image Sensor: | With Sony IMX258-0AQH5-C(Color); |
| Model Number: | SDA-KK258PA-A0; | Type: | Drive IC; |
| Packaging Detail: | Vacuum Package, Carton Box Direct Factory Price MIPI Interface with Sony IMX258 13MP Cmos Camera Module; | Interface: | MIPI; |
| View Angle: | 77.7°±3°; | Array Size: | 4208x3120; |
| Brand Name: | Sincere First; | Product name: | Sony IMX258 13MP Cmos Camera Module; |
| Image quality: | center≥2200 LW/PH;Corner≥1700 LW/PH; | Place of Origin: | Guangdong China (Mainland); |
| Technology: | cmos camera module; | Port: | HongKong ShenZhen Shanghai Guangzhou; |
| Package: | cmos; | Pixel: | 13megapixel; |
| Supply Ability: | 300000 Piece/Pieces per Month ,13mp cmos camera module First Brand; | Payment Terms: | L/C,T/T,Western Union,MoneyGram,paypal; |
| D/C: | SDA-KK258PA-A0; | Focus: | Optional auto focus / Fixed Focus; |
ODM/OEM CUSTOMIZED DESIGN IS WELCOME!
IMX258 is a diagonal 5.867mm (Type 1/3.06) 13 Mega-pixel CMOS active pixel type stacked image sensor with a square pixel array. It adopts Exmor RS™ technology to achieve high speed image capturing by column parallel A/D converter circuits and high sensitivity and low noise image (comparing with conventional CMOS image sensor) through the backside illuminated imaging pixel structure. R, G, and B pigment primary color mosaic filter is employed. By introducing spatially varying exposure technology, high dynamic range still pictures and movies are achievable. It equips an electronic shutter with variable integration time. It operates with three power supply voltages: analog 2.8 V, digital 1.2 V and 1.8 V for input/output interface and achieves low power consumption.
In addition, this product is designed for use in cellular phone and tablet pc. When using this for another application,Sony does not guarantee the quality and reliability of product. Therefore, don't use this for applications other than cellular phone and tablet pc. Consult your Sony sales representative if you have any questions.
10 years warranty!
190 degree Wide angle fisheye camera 12MP 4K Sony imx377 camera module
100% Response Rate
MIPI Interface Sony IMX258 13MP Cmos Camera Module
100% Response Rate
Iris recognization/Gesture Recognition/Gesture controller
100% Response Rate
hi843 camera module 8MP HYNIX sensor mipi AF FF cmos camera module
100% Response Rate
High Strength Manufacturers CMOS AF SONY IMX219 Sensor 8MP Camera Module
100% Response Rate
OV8865 Fisheye camera module with 8MP resolution wide angle Fish eye lenses camera
100% Response Rate
Samsung S5K5E2 5mp Cmos Camera Module with MIPI Interface Camera sensor
100% Response Rate
CIS 13MP Auto Focus SONY IMX214 Wide Angle MIPI Camera Module
100% Response Rate
High Definition Camera module Samsung S5K3P3 CMOS 16MP Camera Module
100% Response Rate
Main Features & Advantage
1. Top Quality & advanced technology: Our Factory is a good and professional manufacturer of CMOS Camera Module products. We provide high quality and compatible CMOS Camera Module products for different requests and wishes from clients. Our excellent supply of world-class quality and manufacture are based on modern facilities and quality control for CMOS Camera Module products.
We Professional produce CIF, VGA, 2million,3 million, 5 million, 8 million, 12 million, 16 million, 21 million, 22 million, 23 million,24 million pixel camera module. We also could do according to customer's specific requirements.
The CMOS Camera Module has very compact size and is widely applied in Mobile phone, Artificial Intelligence,uav drone,smart home,Iris recognization,Gesture Recognition,Machine Vision,3D printer camera solution,2D Barcode Recognition,Optical Imaging System,Infrared Imagers for Industry,Digital Still Camera, DV, PDA/Handheld, smart toy, PC Camera, Security Camera, Automotive Camera, etc.
We use OVT sensor, Aptina sensor, Samsung sensor, Panasonic sensor, SONY sensor and some snesors which are made in China. Also we have SMT lines, CSP lines and COB lines.
2. Unbeatable Price: We always ensure high price performance to benefit our customers.
3. Excellent Service:We treat clients as friend and aims at building long term business relatiionship.Please call us and look forward to cooperating with you.
Our Services
1. For all your inquires about us or our Camera module , we will reply you in detail within 12 hours
2. We own professional team have professional attitude to recommend products and services, introducing the Camera module for you.
3. Our Camera module have various type and function , We will recommend the exact model to you according to your requirements ;
4. We offer OEM services. Can print your own logo on the Camera module
5. We have very experienced engineers, can help you better use our Camera module .
6. Timely Delivery: Your order shall be shipped once finished .
