Outboard high speed motor for marine transport ship

Supplier: Wuhan Greenbay Marine Technology Co., Ltd.
Region: Hubei, China
Contact: Ms Hanna Gui
Price: $100.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	CE;	Blades:	3;
Application:	barge/steamship/ship;	Port:	shanghai;
Name:	outboard propulsion unit;	Supply Ability:	10000 Set/Sets per Year;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;	material:	Stianless steel/iron;
Type:	Accessories;	Packaging Detail:	wooden box;
Diameter (mm):	300-2000;	Function:	belt driven thruster;

Product Description

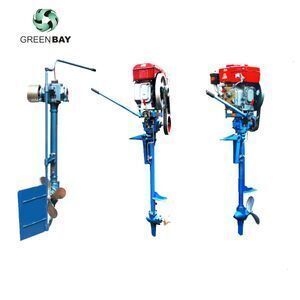

Hanging paddle machine

our major products, adopts new technology, such as the direct gear transmission and supporting the new diesel engines of light aluminum alloy. Compared with the old machines, our diesel outboard is of much higher efficiency. The gearbox and the propellers are made of the high strength aluminum alloy, which is corrosion resistant. Our products will provide consumers better service with its light weight, small size, high speed, low fuel consumption, easy installation, good maintenance and long working life,use for Fishing boat, sand mining ship, river transport ship, with thrust, good operation, easy maintenance and so on. The aircraft installed in the stern, does not account for space, do not destroy the original hull structure, driving convenience

Engine Type

single-cylinder,four-stroke,direct injection air cooled diesel
single-cylinder,four-stroke,direct injection,air cooled diesel

BoreXStroke mm :78 X 62 ;86×72

Piston tatal displacement（ml）:296 ;406

Rate rotation rpm :3000/3600 ;3000/3600

Compression: 20:1;20:1

Rated output（kW）: 4 ;6.3

Maximum output（kW）:4.4;6.9

Fuel Type: 0# or -10# diesel ;0# or -10# diesel

Fuel tank capacity（L）:3.5 ;5.5

Fuel consumption rate（g/kw.h）:≤280 ;≤280

Lube oil capacity（L） :1.1 ;1.65

Starting way :Recoil starter/electric ;Recoil starter/electric

Overall dimension（long×wide×high)mm : 383×421×450 ; 410×470×494

Net weight（kg）:63 ;75

Detailed Images

Factory view

External Exchange

Certifications

In past years ,we have acquired iso ,Ship manufacturing license and many cerifications .

Qualification

In last years we have acquire 3 patent of invention and 9 patent for utility models ,1 industrial design patents.the patents list as the sheet below .

Patent number	Application authorization data	Patent name	type
201520301913.70	2015.5.11	Adjustable half submerged propeller propulsion system	utility model
201310072385.8	2015.05.06	underwater power pack
201520006974.00	2014.12	A plane dropped lifeboat	utility model
201420713314.10	2014.11.25	A portable remote control water cleaning vessel	patent for invention
ZL 2014 2 0401907.4	2014.7.15	Hybrid electric remote control vessel	utility model
ZL 2013 2 0099711.X	2013.3.5	An underwater power plant control bottle sealing device	utility model
ZL 2013 2 0406704.X	2013.7.10	Small unmanned automatic lifeboat	utility model
ZL 2012 2 0630348.5	2012.11.26	A hybrid underwater robots	utility model
ZL 2012 2 0630289.1	2012.11.26	Small unmanned automatic survey vessel	patent for invention
ZL 2012 2 0174027.9	2012.4.23	The surface of Marine propeller propulsion system	utility model
ZL 2010 3 0210915.8	2010.6.13	Surface propeller propulsion	patent for invention
ZL 2006 1 0096445.X	2006.9.27	Marine air pipe head	patent for invention

Packing & Delivery

Packaging detail:
Pallet, wooden case, paper box etc or as customers' requirements.
Shipping detail:
Ocean transport, air transport, Express etc or as customers' requirements.

some packing as the pictures below
