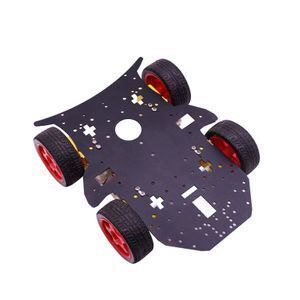

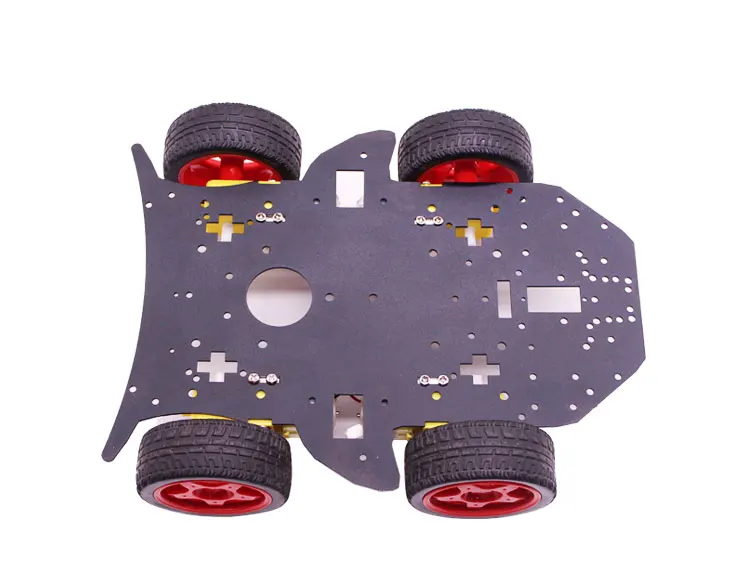

Black 4WD robot Smart Car Aluminum Chassis Mobile Platform Kit With DC Motor Support For DIY Uno Raspberry PI
-
Supplier: Shenzhen Yahboom Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Bette Davis -
Price: $13.80 /piece -
Min. Order: 1 piece
| Package Type: | Standard Package; | Single gross weight: | 1 KG; |
| Selling Units: | Single item; | Color: | Black; |
| Single package size: | 24X18X7 cm; |
1.Mechanical structure is simple, very easy to assemble.

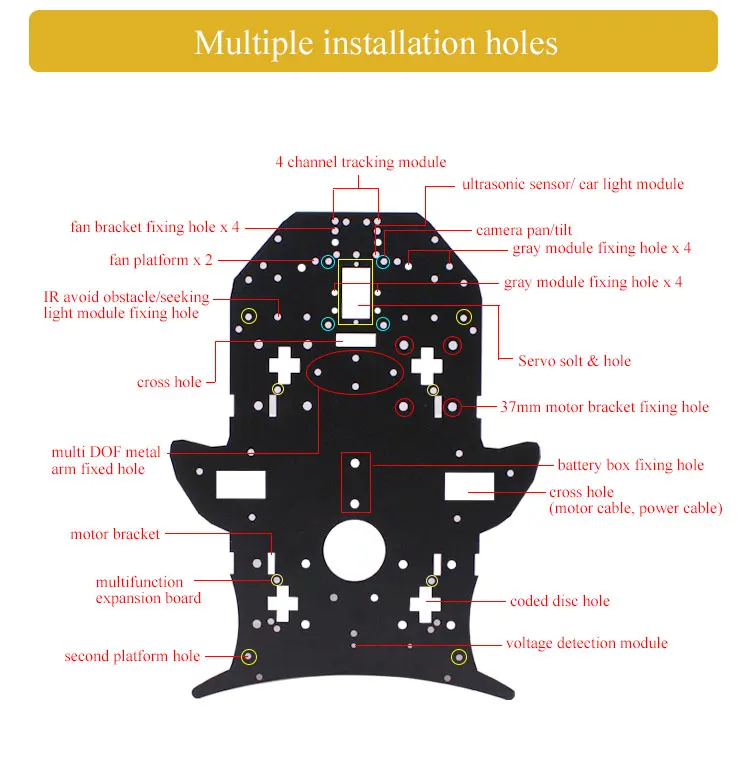

2.Various mount hole, motor cable with xh2.54, easy to DIY.
3.Four drive power, horsepower fullness.
4.Compatible for Arduino, Raspberry PI, DIY.
5.Provide detailed information and technical support.
6.Technical parameter
Motor | Load torque: 0.8kg/cm(High speed, middle torque) |
Reduction ratio: 1:48 | |
| 6v No-load current: ≤200mA | |
6v No-load speed: 245±10% rpm | |
3v No-load current: ≤150mA | |
| 3vNo-load speed: 125±10% rpm | |
Use all environmental protection materials, equipped with high quality carbon brush, strong magnetic core, band shielded ring |
Chassis | thickness | weight | material | technology | bearing |
1.5mm | 103g | Aluminium | Oxidizing sand blasting | ≤10kg |
Wheel | with inner blown rubber, tread leveling, large area of contact with the ground, antiskidding. |
Bracket | Aluminium |
Weight: 471.9g(1.04lb)

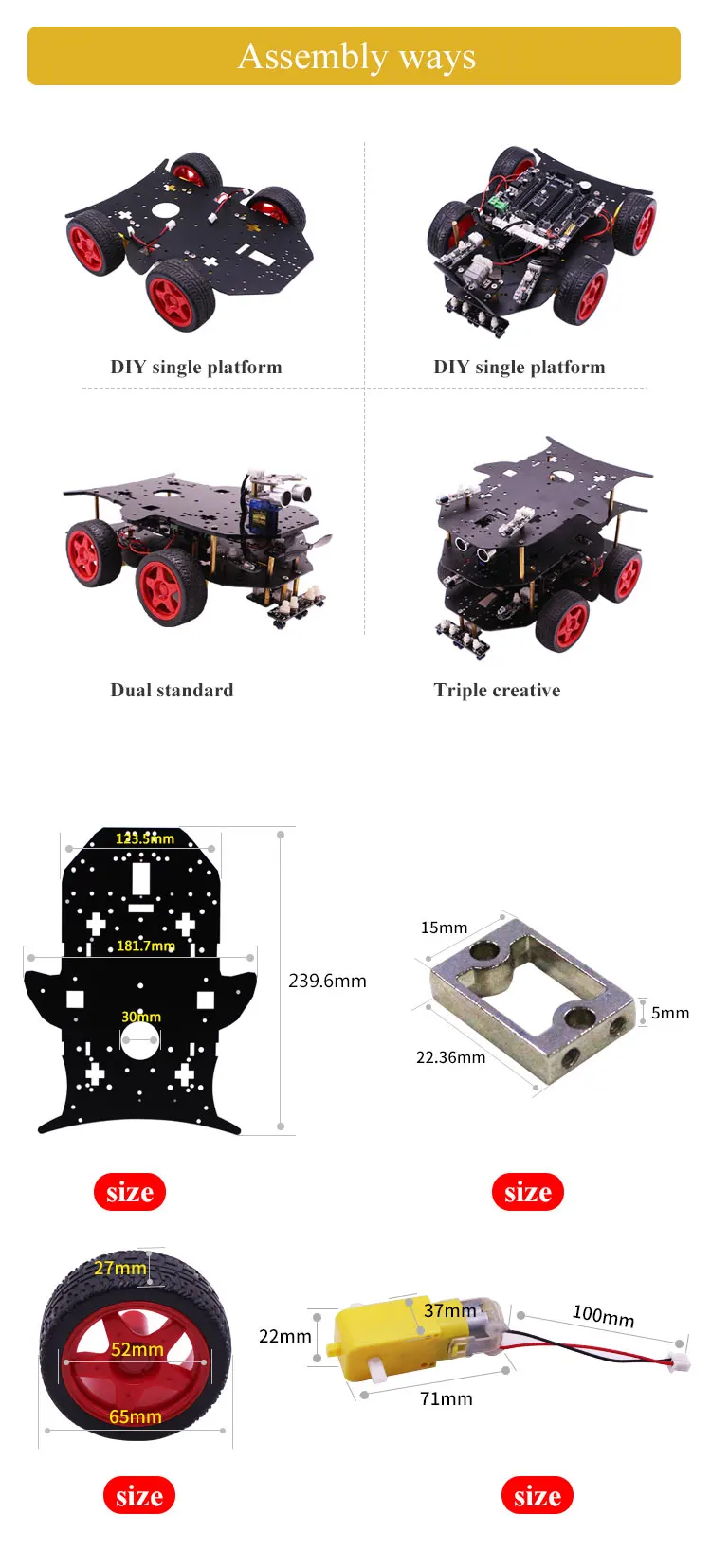

Size: 239.6x181.7x65mm(9.43x7.15x2.56in)

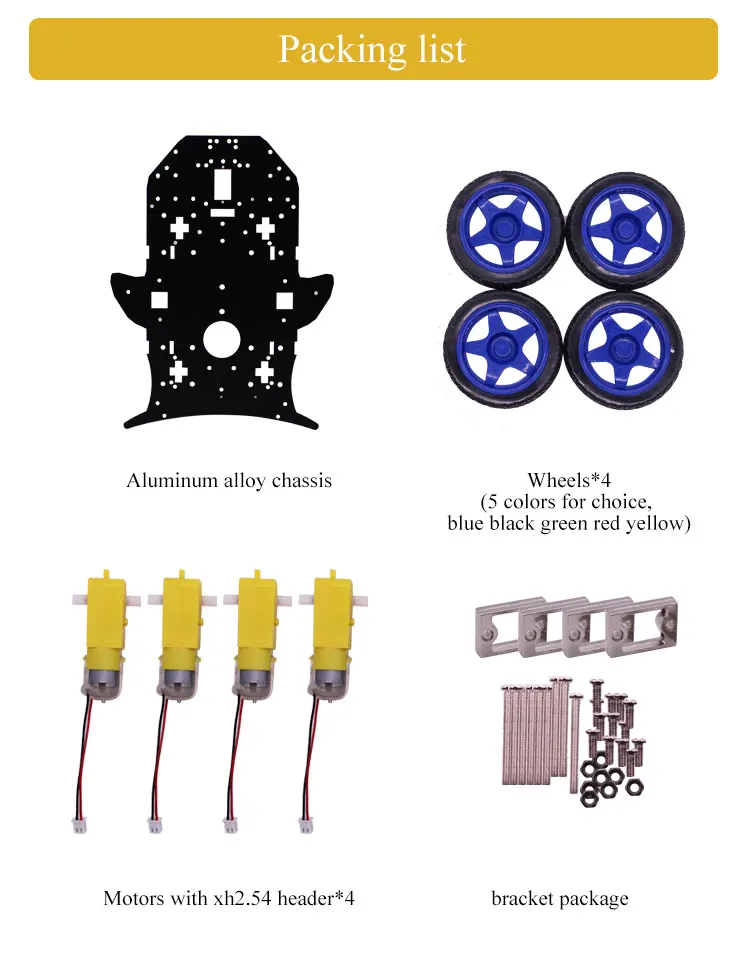

1 x Aluminum alloy chassis
4 x Wheels(5 colors for choice, blue black green red yellow)
4 x Motors with xh2.54 header
1 x bracket package
