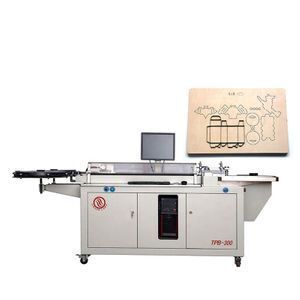

Auto Die Making Knife Blade Bender Bending Machine for Die Cutting
- 19800.00 set
| Service life: | Long service life Automatic Rule Bending Machine; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Place of Origin: | Jiangsu China; | Key Selling Points: | High Productivity; |
| Warranty: | 1 year; | Weight (KG): | 520; |
| Local Service Location: | None; | Certification: | ISO 9001:2000; |
| Processing: | Stainless Steel; | product type: | TPB-300b Automatic Rule Bending Machine; |
| Automation: | Automatic; | Voltage: | 220/380V; |
| After Warranty Service: | Video technical support,Online support; | Port: | shanghai; |
| Power(W): | Hydraulic; | Brand Name: | YT; |
| Product name: | Auto Die Making Knife Blade Bender Bending Machine for Die Cutting; | Supply Ability: | 3 Set/Sets per Week Die Making Auto Bender Machine; |
| Extra Services: | Painting / Powder Coating; | Packaging Detail: | Packaging Details: Wooden carton Die Making Auto Bender Machine Cnc Bending Machine Automatic Steel Rule Die Bending Machine Die Making; |
| Material / Metal Processed: | STAINLESS STEEL rule; | Dimension(L*W*H): | 2600*850*1500MM(L*W*H); |
| Machine Type: | Other; | Year: | 2019; |
| After-sales Service Provided: | Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support; | Raw Material: | Other; |
| Applicable Industries: | Manufacturing Plant; | Weight: | 460KG; |
| Showroom Location: | None; | Type: | bending Machine; |
| Condition: | New; | Power: | Hydraulic; |
| CNC or Not: | Normal; |
Auto Die Making Knife Blade Bender Bending Machine for Die Cutting

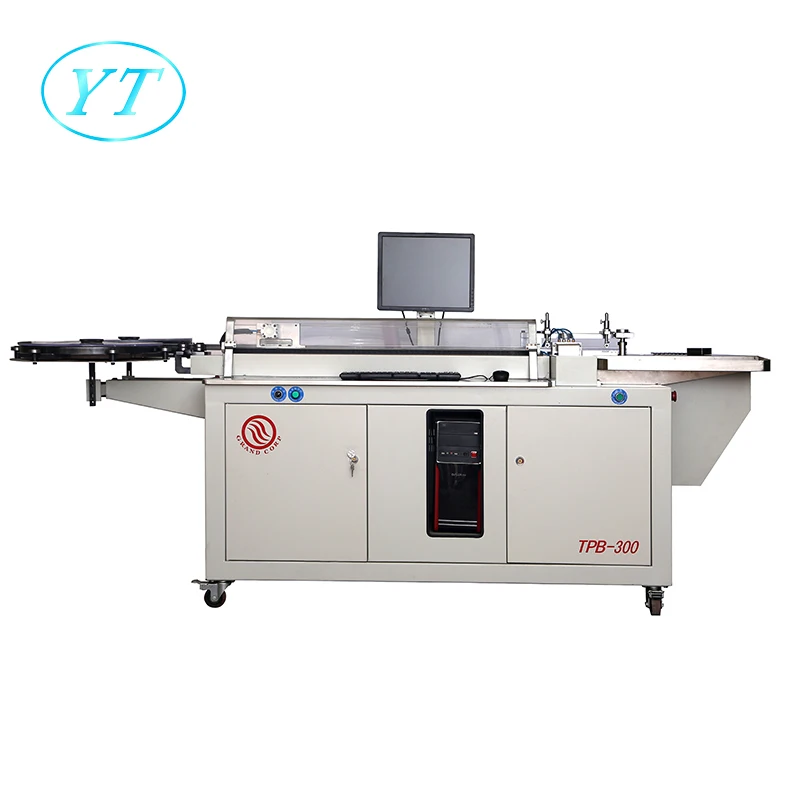

Type:TPB-300A
Product Features:
Promptly&precisly perform bending,notching,rake lipping,clearance lipping,front plane cutting and back plane cutting;
Direct calibration after bending,no need for additional edge truncation or grinding;
Fully automated bending to its true meaning,time and labor cost saving;
Perform the six function individually,simutanousal,or several of them.
Specification | |
The precision after bending | ±0.05MM |
The planeness | 0.25MM |
The min head length of the bending | 1.8MM |
The min end length of the bending | 1.8MM |
The max bending angle | 90 degree |
The min radius for 90 degree angle | 0.5mm |
Material applied | 0.45MM/0.53MM/0.71MM/1.05MM |
The height of the blade | 8-30MM |
Power supply | 220/380V 50/60HZ |
Air pression | 0.6MPA |
Size | 2600*850*1500MM(L*W*H) |
Weight | 460KG |
cutting rule for die making
1. It is for flat wooden laser die making
2. It is easy to be processed by auto bender and manual bender.
Our Yitai Packing Material Accessories (kunshan) Co., Ltd is professionally in manufacturing flat & rotary die board, die cutting & creasing rule, laser cutting machine, and providing other related die making materials and machines. we have been in die making industry for over 10 years. And our produts have been exported to North America, Southeast Asia, Australia, South America, Africa and other regions and we also have many distributor and partner in overseas.
