China manufacturer Ball Screws Support Bearing 7306-B from Germany high precision 7306B-2RS 7310 7305 7308 contact bearing

Supplier: Tianjin Nanxiang Steel Strip Processing Co., Ltd.
Region: Hebei, China
Contact: Ms Cherry Feng
Price: $0.20 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Place of Origin:	Liaoning China;	Brand Name:	NANXIANG;
Inside Diameter:	10-260mm;	Type:	Ball;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,Angular contact ball bearing;	Seals Type:	open, 2RS, ZZ;
Product name:	Angular contact ball bearing;	Supply Ability:	1000000 Piece/Pieces per Month Angular contact ball bearing;
Precision Rating:	P0,P5,P6,P4,P2;	Sealing Type:	open, 2RS, ZZ;
model:	7015AC,7205AC,7200C,7214AC,7322B,7222B,QJ1072,3207A-2Z etc;	Applicable Industries:	Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Construction works ,Energy & Mining,Angular contact ball bearing;
Material:	Chrome Steel or Stainless Steel;	Packaging Detail:	1. Neutral Packing:White Plastic bag / Outer Carton / Pallet; 2. OEM POLICY We can printing your brand (logo,artwork)on the shield or laser engraving your brand on the shield. We can custom your packaging according to your design All copyright own by clients and we promised don't disclose any info. Angular contact ball bearing;
Precision Class:	P0,P5,P6,P4,P2;	Number of Row:	Double Row;
Port:	TianJin Port /Huang Pu Port/ShangHai Port/CaoFeiDian Port Angular contact ball bearing;	Structure:	Angular Contact;
Outer Diameter:	30-380mm;	Brand Name:	NANXIANG;
Design:	Open basic design;Universal design;	Serises:	Face to face/Back to back/Tandem configuration;

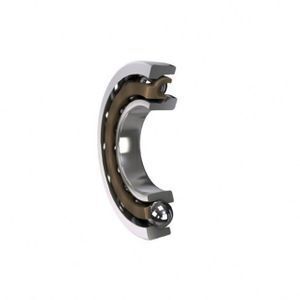

Angular contact ball bearings have inner and outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This means that these bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.

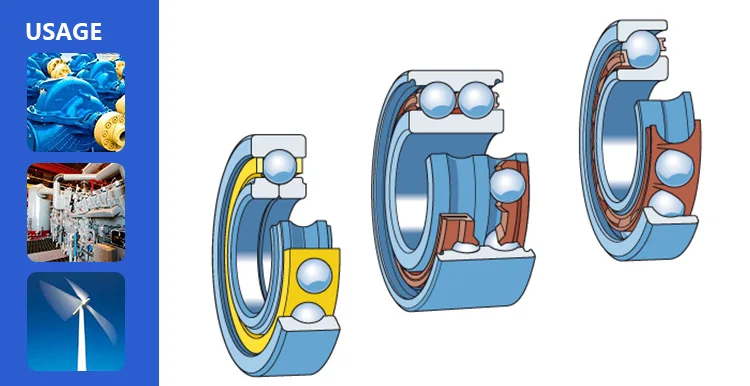

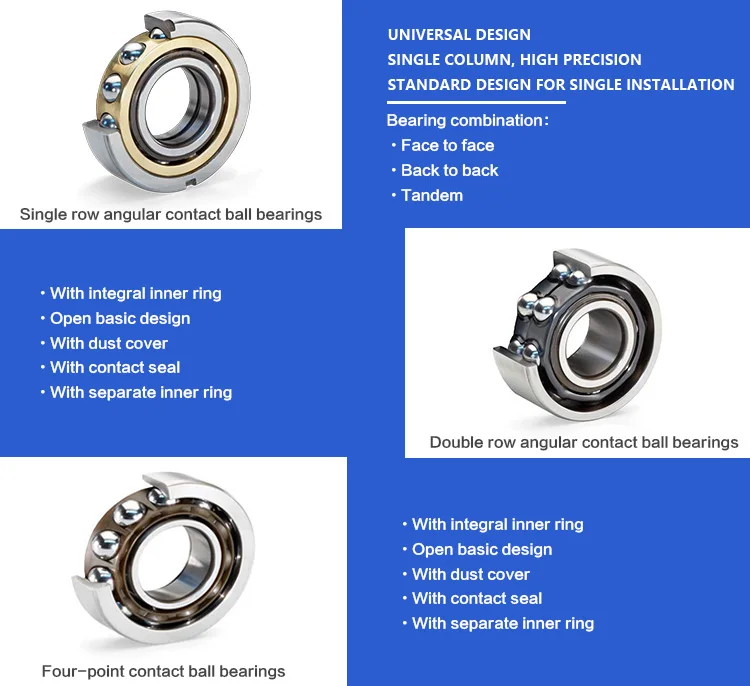

The most commonly used designs are:

• Single row angular contact ball bearings

• Double row angular contact ball bearings

• Four-point contact ball bearings

Designed to run faster, cooler, smoother, longer

Parameter table:

Model	ID	OD	Width	Cr	Cor	Grease speed	Oil lubrication speed	Weight
Model	(mm)	(mm)	(mm)	(kN)	(kN)	(r/min)	(r/min)	(kg)
7000C	10	26	8	5.3	2.45	47000	62000	0.021
7000AC	10	26	8	5	2.35	34000	42000	0.021
7200C	10	30	9	5	2.35	40000	54000	0.031
7200AC	10	30	9	4.65	2.2	29000	37000	0.031
7001C	12	28	8	5.8	2.95	40000	54000	0.024
7001AC	12	28	8	5.4	2.75	29000	37000	0.024
7201C	12	32	10	7.9	3.85	38000	50000	0.038
7201AC	12	32	10	7.45	3.65	27000	34000	0.038
7002C	15	32	9	6.6	3.7	35000	47000	0.035
7002AC	15	32	9	6.1	3.45	26000	32000	0.035
7202C	15	35	11	8065	4.55	33000	43000	0.048
7202AC	15	35	11	8.1	4.25	24000	29000	0.048
7003C	17	35	10	7.3	4.45	31000	41000	0.045
7003AC	17	35	10	6.75	4.15	23000	28000	0.045
7203C	17	40	12	10.9	5.9	29000	38000	0.07
7203AC	17	40	12	10.2	5.5	21000	26000	0.07
7004C	20	42	12	11.1	6.6	26000	35000	0.079
7004AC	20	42	12	10.3	6.1	19000	24000	0.079
7204C	20	47	14	15.5	9	24000	32000	0.112
7204AC	20	47	14	14.5	8.4	17000	22000	0.112
7204B	20	47	14	13.3	7.7	13000	17000	0.112
7005C	25	47	12	12.3	8	23000	30000	0.091

• All data above are standard value for your reference only, we can also customize by your special requirements

Product Properties:

Designed to run faster, cooler, smoother, longer

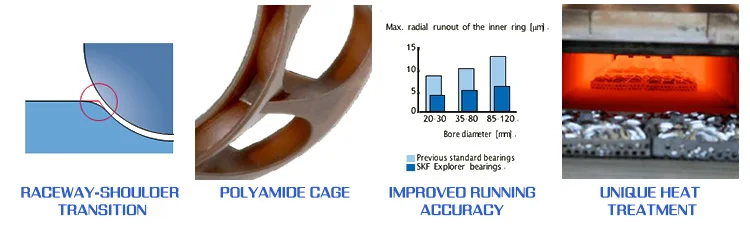

1.Unique raceway-shoulder transition (img1.)

2.Superior cage designs (img2.)

3.High quantity steel and unique heat treatment (img3.)

4.Improved running accuracy (img4.)

Designed to run faster, cooler, smoother, longer

Designed to run faster, cooler, smoother, longer

Our Services:

SAMPLES
1.Samples quantity: 1-10 pcs are available.
2.Free samples: It depends on the model NO., material and quantity. Some of the bearings samples need client to pay
samples charge and shipping cost.
3.It's better to start your order with Trade Assurance to get full for your samples order.

CUSTOMIZED
The customized LOGO or drawing is acceptable for us.

MOQ
1.MOQ: 10 pcs mix different standard bearings.
2.MOQ: 3000 pcs customized your brand bearings.

OEM POLICY
1.We can printing your brand (logo,artwork)on the shield or laser engraving your brand on the shield.
2.We can custom your packaging according to your design
3.All copyright own by clients and we promised don't disclose any info.
