Planetary Gear Set Spare Parts / Inner Ring Gear for New Energy Vehicles

Supplier: Zhejiang World Machinery Manufacturing Co., Ltd.
Region: Zhejiang, China
Contact: Mr Weihan Zuo
Price: $1.00 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Certificate:	TS16949;	Brand Name:	OEM;
Processing:	Precision Casting, CNC machining;	Payment Terms:	L/C,T/T,Western Union;
Port:	Shanghai / Ningbo;	Packaging Detail:	Neutral paper packaging, wooden boxes for outer box or according to customer's demand.;
Model Number:	Customized;	Supply Ability:	200 Ton/Tons per Month;
Material:	ductile cast iron, bronze, carbon steel, stainless steel, alloy steel;	Standard or Nonstandard:	Nonstandard;
Application:	automobile ; Train;	Place of Origin:	Zhejiang China (Mainland);

Product Description:

New energy Automobile planetary gear

Module : M1 - M5

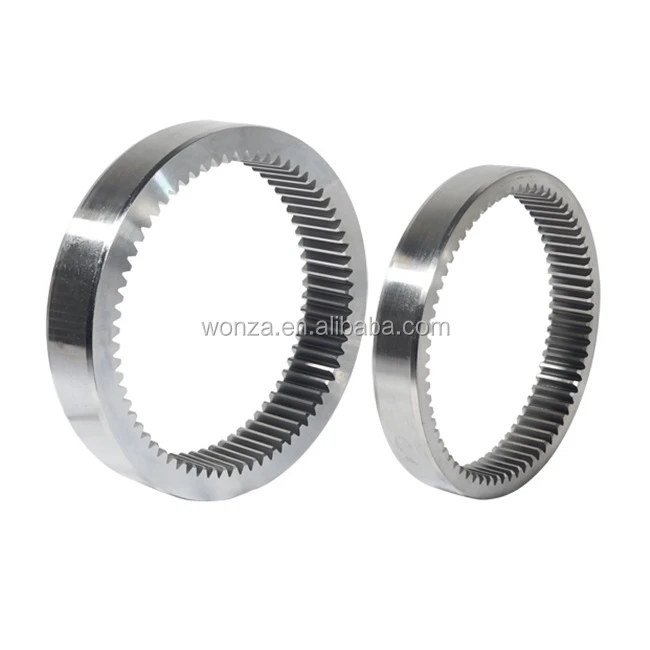

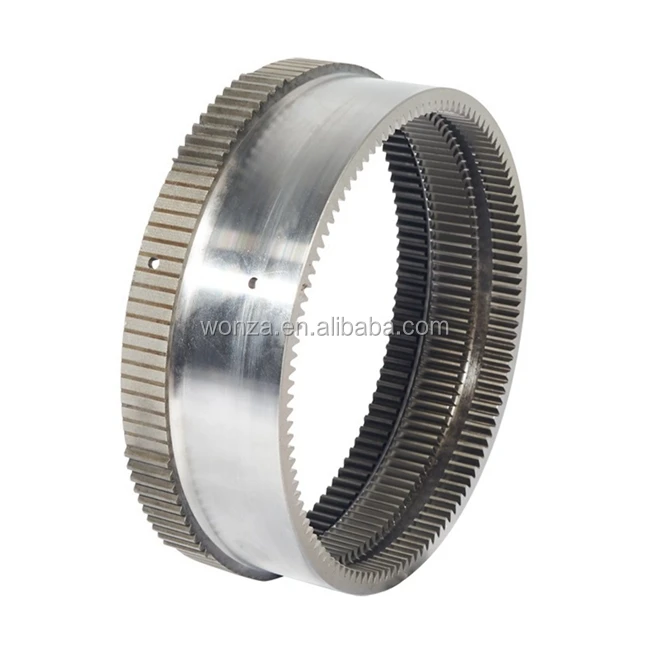

Internal ring gear Outer Diameter : Max 400

Internal ring gear Inner Diameter : Max 300

Technics : Gear Hobbing , Gear Shaping , Gear Grinding

Gear Precision Grade : AGMA12 , DIN5-7 , ISO6

Characteristics :

New Energy Automobile had been adopted into the Non-Pollution Automobile Industrial Chain in many countries . It has been acknowledged by both international and domestic automobile Industry as the innovation of Automobile manufacturing which enjoys a very promising and broad prospect .

The Internal ring gear manufactured by us adopts unique internal gear grinding technics which is the leading manufacturing technics in china .

The internal gear grinding technics are also applied to Planetary Gear , Sun Wheel . It has the advantages of high precision and low noise .

We can undertake large amount of bulk production at any time .

Material	Carbon Steel	SAE1020, SAE1045, Cr12, 40Cr, Y15Pb, 1214Letc
	Alloy Steel	20CrMnTi, 16MnCr5, 20CrMnMo, 41CrMo, 17CrNiMo5etc
	Brass/Bronze	HPb59-1, H70, CuZn39Pb2, CuZn40Pb2, C38000, CuZn40etc
Tolerance Control	Outer Diameter	Based on drawing
	Length Dimension	Based on drawing
Machining Process	Gear Hobbing, Gear Milling, Gear Shaping, Gear Broaching, Gear Shaving, Gear Grinding and Gear Lapping
Teeth Accuracy	DIN Class 4, ISO/GB Class 4, AGMA Class 13, JIS Class 0
Modules	1.0, 1.25, 1.5, 1.75, 2.0, 2.25, 2.5....8.0 etc
Heat Treatment	Quenching & Tempering, Carburizing & Quenching, High-frequency Hardening, Carbonitriding
Surface Treatment	Blacking, Polishing, Anodization, Chrome Plating, Zinc Plating, Nickel Plating
Standard	DIN, ISO/GB, AGMA, JIS
