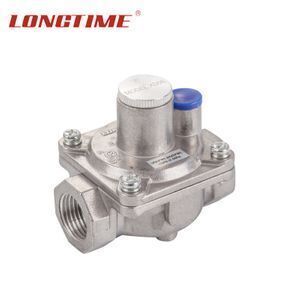

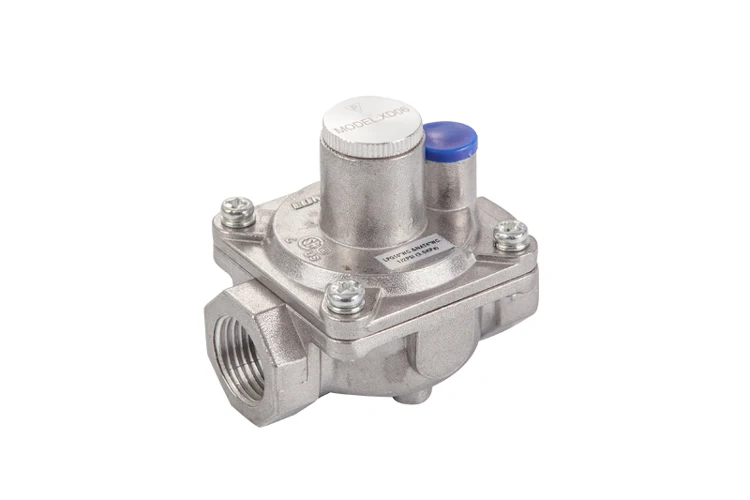

Certified 3/8"FNPT 1/2PSI 4-6"WC Poppet Regulator Constant Natural Gas Pressure Regulator for Oven Heater Grill

Supplier: Ningbo Xingcheng Valve Co., Ltd.
Region: Zhejiang, China
Contact: Ms Amber oy
Price: $2.90 / >=50 pieces
Min. Order: 50 pieces

Click here to contact

Product details

Selling Units:	Single item;	Outlet pressure:	NG 4-6" W.C, LP 8-10" W.C;
Inlet connection:	3/8" FNPT;	Single package size:	7.5X6X5.2 cm;
Model Number:	XD06;	Outlet connection:	3/8" FNPT;
Inlet pressure:	1/2 PSI;	Max. flow capacity:	60,000 BTU;
Certificate:	CSA;	Single gross weight:	0.15 KG;
Place of Origin:	Zhejiang China;	Suitable gas:	LPG, NG;
Package Type:	Each with inner box or bubble bag;	Brand Name:	LONGTIME;
Material:	Aluminum;

Product Description:

* This regulator is suitable for L.P.G and N.G.

* Fits hose pipe with connection thread size of 3/8" NPT at both the inlet and outlet.

* Produced / tested in conformity with ANSI Z21.18 standard.

* Outlet pressure differs depending on which gas type you use.

Contact us for HELP anytime , if you:

* Have requirements that differ from the specs listed below.

* Aren't sure which specific type that's being used in your country or area.

* Want to brand your own logo for the regulator.

* Look for supreme quality that values for the money.

or for many other reasons..........

Product Specifications:

Model	XD06 (of this link)	XD07	XD08
Gas Type	Natural / LP Gas
Inlet	3/8" FNPT	1/2" NPT	3/4" NPT
Outlet	3/8" FNPT	1/2" NPT	3/4" NPT
Inlet Pressure	1/2 PSI
Oulet Pressure (Non-adjustable)	factory-preset pressure, ranges from: # for NG only, 4-6"W.C # for LP only, 8-10"W.C # for Convertible type: NG 4"-LP 10" W.C
Max Flow Caps.	60,000 BTU	120,000 BTU	240,000 BTU
Optional Items	hose connector or adapter optional at further request

Please note that:

1) These models are non-adjustable, in the row of "Outet Pressure", there's given a set of pressure ranges varying from gas types, which means if you need a certain outlet pressure to meet for your appliance, it should be within one of these ranges, any pressure beyond the above mentioned, please consult us for availability.

2) NG 4" - LP 10" W.C is the outlet pressure range for a convertible version of XD06, XD07 or XD08, which means you can either use this convertible regulator for the use of LPG or NG, with just a little switch on the top.
