Axis Wind Turbine 1kw homemade Permanent magnet Generator

Product details
Warranty:2-5 years;Model Number:AFMPG;
Management Systerm:ISO9001:2000;Environment Management Systerm:ISO14001:2004;
Port:Shanghai or Xiamen;Rated Speed:100RPM;
Product Name:Axis Wind Turbine 100kw Permanent magnet Generator;Supply Ability:10000 Set/Sets per Year;
working temp:-30 ° C to +50 ° C;Packaging Detail:100kw permanent magnet generator Standard Sea packing for 100kw Permanent Axis Wind Turbine Generator;
Packing:Wooden case;Brand Name:AFMPG;
Composite:Rare Earth Magnet;Payment Terms:L/C,T/T,Western Union;
Output:1 KW;Place of Origin:Zhejiang China;
Rated output voltage:14 VDC - 400 VAC;

Axis Wind Turbine 1kw Permanent magnet Generator

Product Description



100kw Permanent Axis Coreless Wind Turbine Generator



Click here for more information

 100kw permanent magnet generator   100kw permanent magnet generator   100kw permanent magnet generator

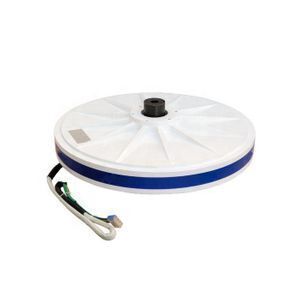

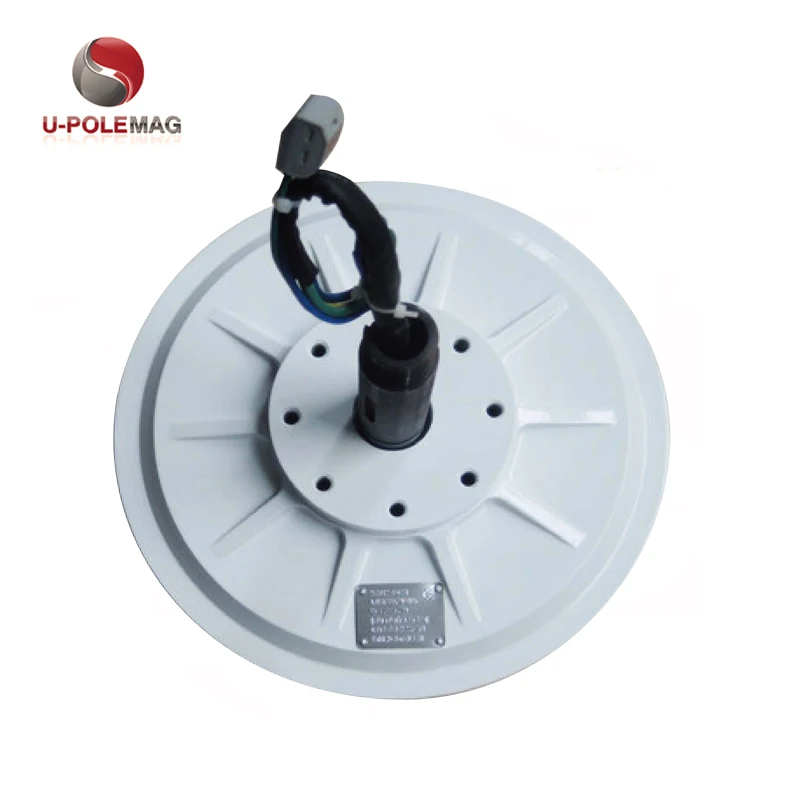

We manufactured a series of new energy high-efficient, disc-shaped, inner (outer) rotor, three-phase, Axial Flux Permanent Magnet Generator (AFPMG) with a coreless (ironless) stator.
Constructions and Materials:




  Advantageous Features:

   100kw permanent magnet generator   100kw permanent magnet generator   100kw permanent magnet generator

High efficiency but low speed

The efficiency of AFPMG, depending on the model, is up to 90%, Beccause of No mechanical drive losses, no rotor copper losses, no stator eddy current losses in the ironless (coreless) stator

   100kw permanent magnet generator   100kw permanent magnet generator   100kw permanent magnet generator

Small Size and Lighter

AFPMG is uniquely lightweight and compact, construction is simple. Through using much less metal in their construction, the generator is highly durable and having a long life. Small size ang lighter save cost.

   100kw permanent magnet generator   100kw permanent magnet generator   100kw permanent magnet generator

 Super small maintenance costs

AFPMG is direct drive, no gearbox, oil-free system, low temperature rise

The use of air-cooling reduces maintenance costs and also significantly strengthens the autonomy of power units



Low starting torque

AFPMG no cogging torque and torque ripple, so the starting torque is very low, for direct-drive small wind turbine (SWT), the starting wind speed is less 1m/s.



Superior reliability

Very low noise, less vibration, no mechanical belt, gear or lubrication unit, long life



Environmentally friendly

The 100% environmentally clean technology and materials. the future of energy source.





Click here for more information

Main Applications

1,Small wind generators(SWT)

2,Small electrical generators driven by gasoline or diesel engines

3,Electric vehicle drive machines, as motor and generator.

4,Hydro Power



Operating Range of Permanent Magnet Generator (PMG)

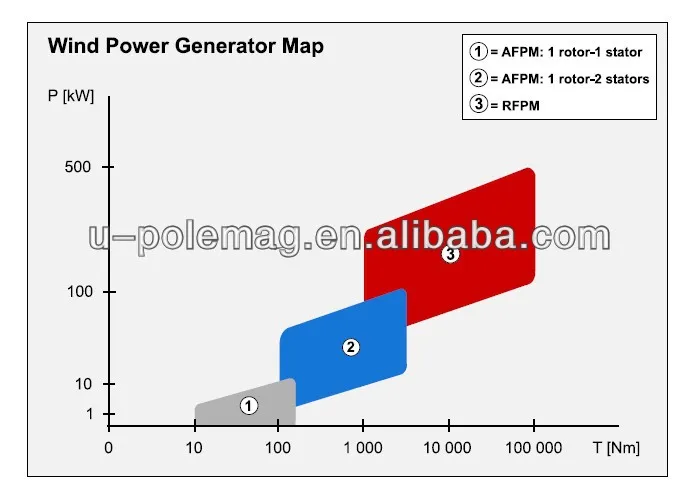

Permanent Magnet Generators (PMG) is a perfect choice for small wind turbine (SWT) applications, because of lighter construction and technical performance.



Operating range of PMG covers the needs of small wind turbine (SWT). For 1-5KW wind turbines, can use a single rotor-single stator of AFPMG, for 5KW-50KW turbines, can use AFPMG with a construction of single rotor-double stators.



The power rating above 50KW is covered by Radial Flux Permanent magnet Generator (RFPMG).

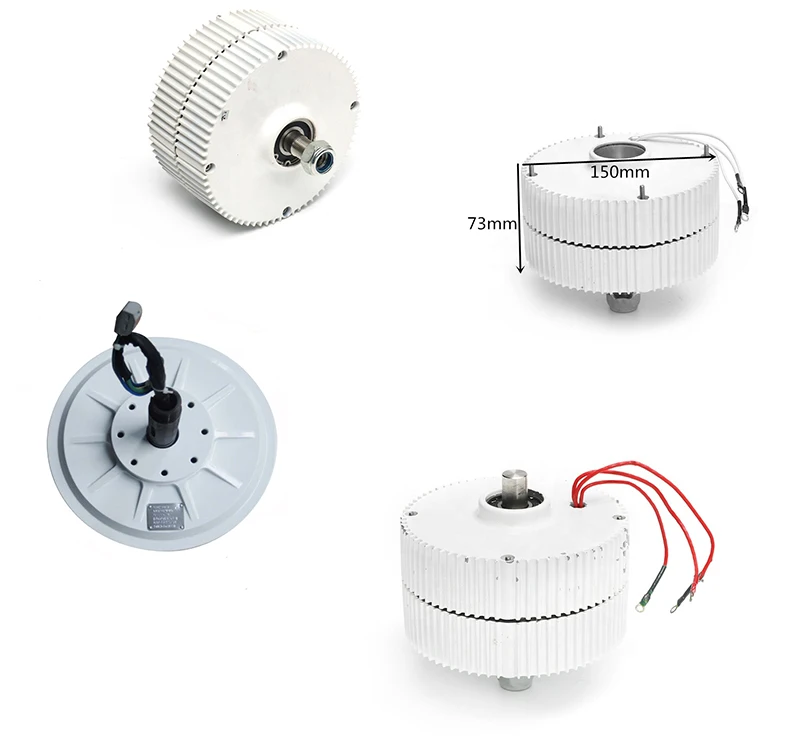

ModelRated output powerRated speedRated output voltageStator momentWeight
KWRPMVNmkg
AFMPG-77010150400 AC<0.5165
7.5150380 AC< 0,5
5100380 AC \ 220 AC
AFMPG-70010200400AC<0.5135
5150380 AC \ 220 AC< 0,5
3100380 AC \ 220 AC
AFMPG-5503180380 AC \ 220 AC< 0,565
2150380 AC \ 220 AC \ 96 DC
1.5100380 AC \ 220 AC \ 96 DC
AFMPG-4502180380 AC \ 220 AC \ 96 DC< 0,348
1150380 AC \ 220 AC \ 96 DC
1,0100220 AC \ 96 DC
AFMPG-3802,0350380 AC \ 220 AC \ 96 DC< 0,332
1,0180220 AC\96 DC\56 DC
1,0130220 AC \ 96 DC \ 56 DC
0.510096 DC \ 56 DC
AFMPG-3201,0350220 AC \ 96 DC \ 56 DC< 0,320
1,0300220 AC \ 96 DC \ 56 DC
1,0250220 AC\ 96 DC \ 56 DC
0,520096 DC\56 DC
0,310096 DC \ 56 DC
0,210056DC \ 28 DC
AFMPG-2600,535056 DC \ 28 DC< 0,111
0,220028 DC
0,113028 DC \ 14 DC



You may also like



Click here for more information

Our Services



Options

Rated power: 0.1KW-10.0KW

Rated speed: 100RPM-1200RPM

Rated voltage: 14VDC-400VAC

Generator outer diameter: 110mm-770mm

OEM Supported



Quick quotation needs:

1. Dimension and tolerances

2. Output power, voltage and RPM

3. Starting torque

  100kw permanent magnet generator   100kw permanent magnet generator   100kw permanent magnet generator

Operating Instructions

1. Working temp: under altitude of 2,500 meters, -30 ° C to +50 ° C

2. Before installation, gently turning the shaft or housing to confirm rotation flexibility, no abnormal sound.

3. AFPMG output is three-phase, three-wire output, before installation, use 500MΩ Megger to check the insulation resistance between the output wire and case, should not be less than 5 MΩ

4. If AFPMG is inner rotor generator, in the installation process, should ensure that the locking screw in place, it is very important.

Warranty: 2-5 years
