Factory price high speed 30kw industrial twin screw plastic granulator pvc machine for sale

Supplier: Jiangsu Faygo Union Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Hussain Figo
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

power supply:	Customized or 380V 50HZ;	Power:	18.5-90KW;
Place of Origin:	Jiangsu China;	Type:	Granulating Production Line;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Name:	30kw industrial twin screw plastic granulator pvc machine;
Quality control:	Test before delivery;	Material:	PVC;
Screw Design:	Double;	Supply Ability:	50 Set/Sets per Month 30kw industrial twin screw plastic granulator pvc machine;
Color:	customized;	Weight:	12T;
Condition:	New;	After-sales Service Provided:	Overseas service center available;
Processing materal:	PVC;	Capacity:	80-500kg/h;
Port:	SHANGHAI;	Warranty:	1 year;
Dimension(LWH):	16m x 2m x 2.8m;	Packaging Detail:	Wooden case with film;
Certificate:	CE & ISO;	Certification:	CE;
Voltage:	220V/380V;	Port:	SHANGHAI;
Brand Name:	Faygo Union;

Factory price high speed 30kw industrial twin screw plastic granulator pvc machine for sale

Product introduction

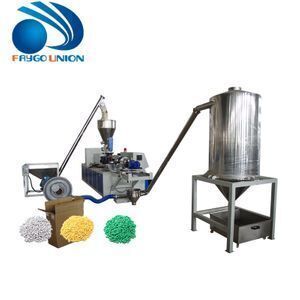

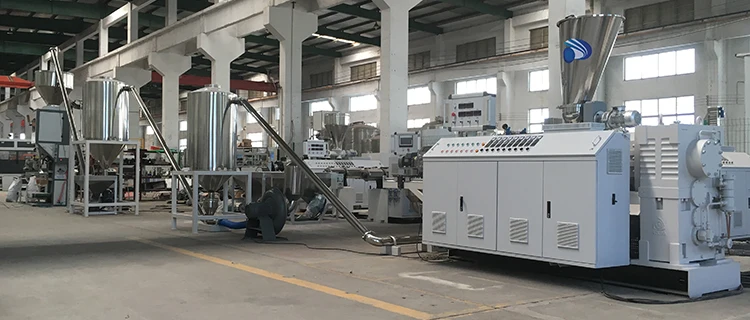

This pelletizing machine is composed by SJSZ series conical twin-screw extruder and correspondingly pelletizing auxiliary equipment; It is suitable for pelletizing PVC, WPC material. The pellets produced by this line are even, solid, elegance.

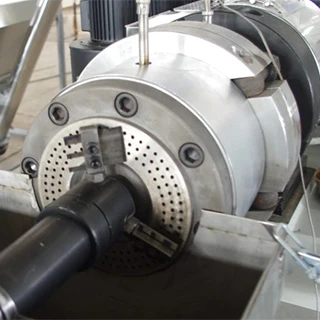

The pelletizing auxiliary equipment includes die face cutter, air transferring unit, vibration separating and cooling unit,with features of high automation and high production efficiency.

Technical parameters

xtruder Model	SJSZ-51	SJSZ-55	SJSZ-65	SJSZ-80	SJSZ-92
Screw Dia.(mm)	Φ51/105	Φ55/110	Φ65/132	Φ80/156	Φ92/188
Main Motor(kw)	18.5	22	37	55	90
Cutting motor(kw)	1.1	1.1	1.5	1.5	2.2
Granules size(mm)	3	3	3	3	3
Output(kg/h)	80~100	100~150	150~250	250~380	380~700

factory price high speed 30kw industrial twin screw plastic granulator pvc machine for sale

Products details

	Screw Loader Charging capacity: 300kg/h Material case volume: 150kg Diameter of charging pipe: 102mm Charging motor power: 1.5KW Material contact part: Made by stainless steel

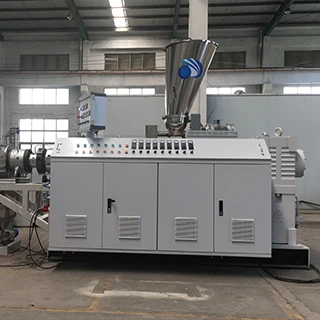

Conical Double-Screw Extruder Screw Diameter: Φ65/132mm Screw Effective Length: 1430mm Main Motor Power: 37KW SIEMENS BEIDE motor Main electrics: Contactor: Schneider Air Switch: Schneider Relay: Omron Vacuum exhaust system: Adopt 2.2kw water loop vacuum pump, contain pressure box
	Mould Material: 38CrMoAl Mould surface treatment: plating rigidity chrome

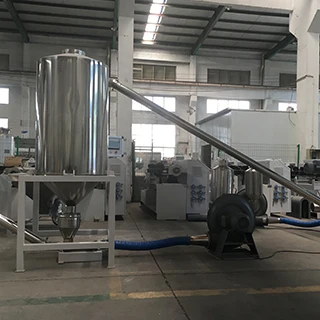

Air bower and Hopper Blower power: 2.2KW Blower pipe: Made by Stainless steel Hopper volume: 800L Hopper Material: Adopt 1.5mm thickness stainless steel
	Weighing & sewing system Total capacity: 18T/H Max weighing: 50kg Precision grade: 0.1 Air consumption: 1m3/h,0.4~0.6Mpa Height: 2600mm Conveyor length: 2500mm

Our Certificate

Packaging & Shipping

Our clients

About us

FAYGO UNION GROUP has 3 branch factories. One is FAYGOBLOW which design and make blow molding machine for PET, PE etc. FAYGOBLOW has 5 patents of invention, and 8 patents utility models. FAYGO PET blow molding machine is one of fastest and most energy-efficient design in the world. Second factory is FAYGOPLAST, which make plastic extrusion machinery, including plastic pipe extruding line, plastic profile extruding line. Especially FAYGOPLAST can supply high speed up to 40 m/min PE,PPR pipe line. Third factory is FAYGO RECYCLING, which research new technology in plastic bottle ,film recycling processing and pelletizing. Now FAYGO RECYCLING can make up to 4000kg/hr. PET bottle washing line, and 2000kg/hr plastic film washing line.
Now FAYGO UNION GROUP has more than 500 customers from different countries, including UK, Spain, Germany, Norway, Switzerland, Italy, Turkey Russia etc. from Europe ,and America, Canada, Mexico, Brazil, Venezuela, Chilly etc from America, and Saudi Arabia, Iran, Syria, India, Thailand, Indonesia etc. from Asia, and many customers from Africa.
Our factory is located in Zhangjiagang city, covers an area of 26,650 square meters. It only takes around two hours driving from SHANGHAI international airport. Welcome to visit our factory, and hope to cooperate with you in the near future.
