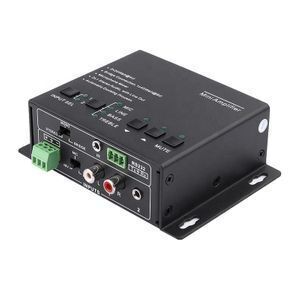

with RS232 Control for Hotel and Classroom 40W Digital Class Mini Stereo Audio Power Amplifier

Product details
Control Function:RS232 Panel Control;Brand Name:JFLINK;
Input:2 stereo audio, 1 MIC;Model Number:PA01W40A;
Power Output:2x20 Watts (4 Ohms);IR Remote:Optional IR remote;
Input Impedance:>10KΩ;Type:Mini Amplifier;
Payment Terms:L/C,D/A,D/P,T/T;Voltage Gain:32dB;
SNR:80dB at maximum output;Output:1 amplifier, 1 stereo audio;
Frequency Response:20Hz ~ 20KHz;Output Impedance:50Ω/stereo, 4~8Ω/Amplifier;
Place of Origin:China;Channels:2;
Product Description

1,2x20Watt@4Ohm as the default amplifier output.
2,Two stereo audio inputs, switchable by button, IR remote & RS232.
3,Volume/Bass/Treble controllable by buttons IR remote & RS232.
4,MIC port can support balance/unbalance signal, suppress the external noise effectively.
5,Line audio output at 3.5mm jack, with volume controllable.
6,Dual-mono function. User can sum up the stereo audio to two times mono audio.
7,MIC mixer function.
8,MIC input supports 48V phantom power, dynamic MIC and wireless MIC.
9,Antistatic case design: providing good protection for long-term and stable performance.







1.2 Panel Drawing

Packaging & Shipping

Package List

1 x PA2B (The mounting ears and PA2B are as a whole.)
2 x Pluggable Terminal Blocks
1 x RS232 Cable
1 x Power Adapter
1 x Power Cord
4 x Plastic Cushions
