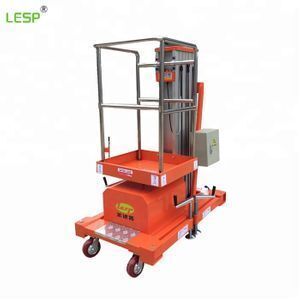

Aluminum alloy man lift/hydraulic lift platform

Click here to contact
Product details
Place of Origin:Shanghai China;Certification:CE ISO9001;
Weight:280kg;Power:0.75kw;
Lift Drive / Actuation:Electric Motor;Overall Dimensions:1.28*0.80*1.65m;
Delivery Detail:10 days after payment;After-sales Service Provided:Engineers available to service machinery overseas;
Lift Mechanism:Telescoping Lift;Max. Lifting Height:7.7m;
Package Type:Packed in wooden cases;Selling Units:Single item;
Rated Loading Capacity:125kg;Single gross weight:280 KG;
Model Number:GTWY6-100;Application:Fixing ceiling,Pasting wall work ect;
Color:Blue ,Orange,OEM;Package Preview:https://sc01.alicdn.com/kf/HTB1VQKyGpuWBuNjSszbq6AS7FXaD.jpg_640x640.jpg;
Material:aluminum profile;name:Hydraulic portable elevation aluminum alloy platforms;
Feature:Low noise;Table Size:0.64*0.58m;
Model:Electric Sizer Lift Table;Lift Speed:3-6m/min;
Min. Lifting Height:6m;Brand Name:LESP;
Voltage:AC380V/AC220V/50HZ;Single package size:128X80X165 cm;
Warranty:1 Year;

 Aluminum alloy man lift/hydraulic lift platform:





















Regarding the delivery, we guarantee 7-15 delivery on time.







 Model Lift Height(m) Max Lifting Height(m) Rated Loading Capacity(kg) Table Size(m) Voltage(v) Motor Power(KW) Total Weight(kg) Overall Dimensions(M)
 singel mast GTWY4-100 4 5.7 125 0.64*0.58 AC220/50HZ 0.75 250 1.18*0.80*1.65
 singel mastGTWY6-100 6 7.7 125 0.64*0.58 AC220/50HZ 0.75 280 1.28*0.80*1.65
 singel mastGTWY8-100 8 9.7 125 0.64*0.58 AC220/50HZ 0.75 300 1.28*0.80*1.98
 singel mastGTWY9-100 9 10.7 125 0.64*0.58 AC220/50HZ 0.75 320 1.36*0.85*1.98
 dual-mastGTWY6-200S 6 7.7 200 1.16*0.60 AC220/50HZ 1.1 450 1.36*0.85*1.65
 dual-mastGTWY8-200S 8 9.7 200 1.32*0.60 AC220/50HZ 1.1 550 1.36*0.85*1.98
 dual-mastGTWY9-200S 9 10.7 200 1.32*0.60 AC220/50HZ 1.1 600 1.56*0.90*1.98
 dual-mastGTWY10-200S 10 11.7 200 1.32*0.60 AC220/50HZ 1.1 650 1.56*0.90*2.04
 dual-mastGTWY11-200S 11 12.7 200 1.32*0.60 AC220/50HZ 1.1 680 1.56*0.90*2.04
 dual-mastGTWY12-200S 12 13.7 200 1.42*0.60 AC220/50HZ 1.1 700 1.66*0.97*1.98
 Three mastGTWY13-250S 13 14.7 200 1.56*0.80 AC220/50HZ 2.2 1000 1.69*1.13*2.25
 Three mastGTWY14-200S 14 15.7 200 1.56*0.82 AC220/50HZ 2.2 1100 1.69*1.13*2.48
 Four mastGTWY16-200S 16 17.7 200 1.60*0.82 AC220/50HZ 2.2 1400 1.80*1.15*2.48
 Four mastGTWY18-150S 18 19.7 150 1.48*0.80 AC220/50HZ 2.2/1.1 1600 2.26*1.30*2.45





Scissor aerial work platform suitable for factories, construction sites, hotels, airports, railway stations, yards High-altitude

equipment installation, maintenance and sanitation of the head, gymnsiums and other tall buildings, field power Facilities,

overhead pipes, lifting machinery maintenance, ect...Scissor aerial work platform is to protect Job security, improve the

work efficiency of the ideal equipment, aetial work safe, convenient, fast.



Scissor Aerial Work Platform Product Features:

 Lifting mechanism uses high-strength manganess steel rectangular pipe production. Has a safety device to prevent overloading

of the lifting platform. Security features to prevent hydraulic line valve. Blackouts case of emergency lowering device.
