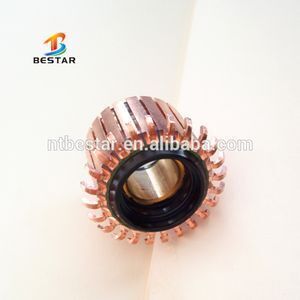

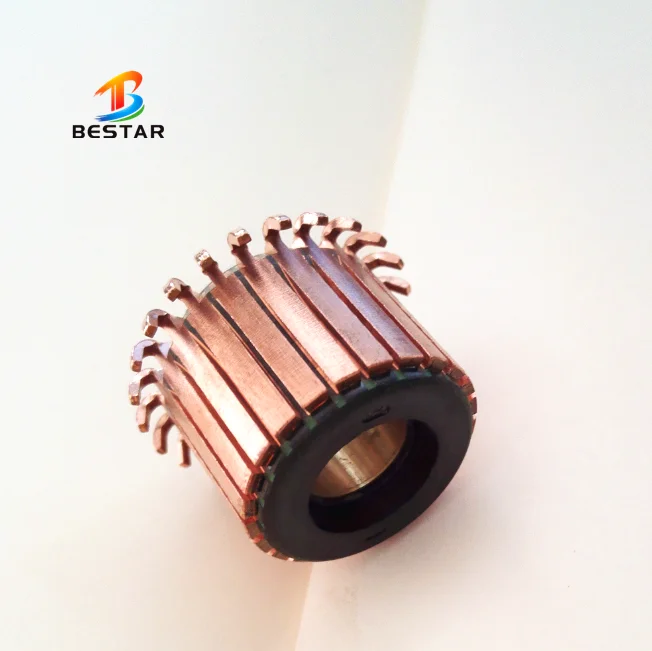

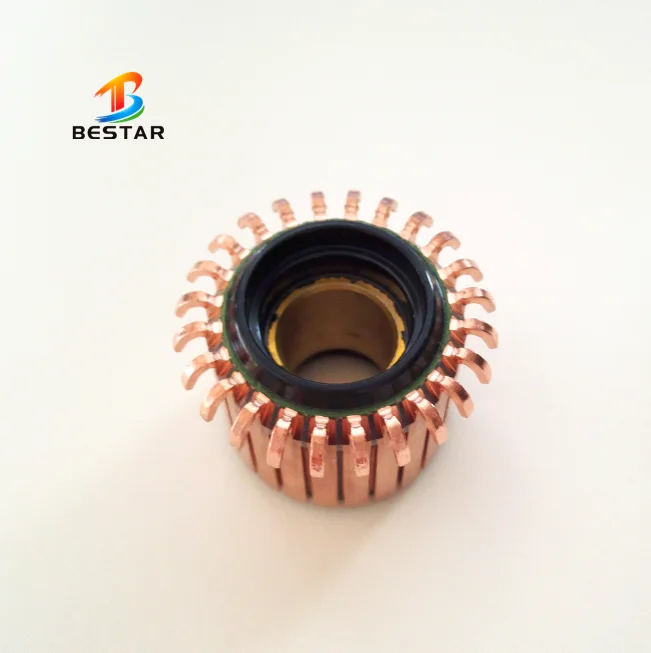

wholesale OD22ID10H20.5-24segment commutator for Bosche po

Supplier: Nantong Bestar Auto Parts Co.,ltd
Region: Jiangsu, China
Contact: Ms alina geng
Price: $0.70 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Application:	household machines motor commutator;	Weight:	0.03;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Manufacturing Type:	Custom's Drawing;
HS CODE:	8511909000;	Place of Origin:	China (Mainland);
Certification:	ISO9001:2008;	Packaging Detail:	Bubble film /Plastic box/carton/pallet/customize;
Rated Torque:	Unknown;	Port:	shanghai/ningbo;
Material:	0.03% or0.08%silver / Copper/ bakelite CN6551;	Rated Voltage:	110V/220V/240V;
Model Number:	BT-1016HY-24;	Supply Ability:	100000 Piece/Pieces per Month;
sample:	In free;	size:	OD22ID10H20.5;
Quality:	Contract Standard;	Drill Type:	HAMMER DRILL;
Brand Name:	ntbestar;

Product Description

Material	0.03% or0.08%silver/ Copper/ bakelite CN6551
Structure:	Segmented hook/ groove commutator
Usage:	AC/DC motor spare parts
Voltage	12V 24V 48V 60V
Sample	Free(In Stock )
Delivery	5-30 wokingdays
Packing	Plastic box/carton/pallet/customized
Term of trade	FOB shanghai/ ningbo/.......
Transport	By sea/ air/ train/Fedex/Dhl......
Payment	T/T ,paypal ,western union......
Production capacity	1,000,000pcs/month
Service& Warranty	Best service for all customers, with 6 months' warranty

Technical Specifications:

1. To be free from void(bubble) more than 1mm and cracks in molded resin surface, but air hole(depth 1.4± 0.1, width 0.5± 0.05 ) should be tolerated.

2. Voltage Test: Bar to bar at 450V, 1s, and bar to shaft at 1500V, 1 min, there will be no breakdown or sparl

3. Spin Test: Under 180±2 ℃ , 3000rpm, 3mins, the max change in OD is 0.01mm and the max deviation between bar to bar is 0.003.

4. Insulation Resistance: The insulation resistance is greater than 50MΩ under 500V.

Product Uses

1.Commutator for household machines : hair dryer, mixer, vacuum cleaner, washing machine, source juice machine ,whisk, juicer, soymilk, and for other household appliances

2. commutator for automotive motor industry:Starting , generator , Wiper , Air conditioner , electric window driving , Seat adjustment , Mirror motor , Electronic brake , Radiator fan , electronic steering, headlight steering , Blower fan,heater fan , Cooling water tank radiator ,and for other auto eletronic machines .

3.Commutator for power tools : Weeding machine, electric drill, angle grinder, electric saw, hammer, cutting machine, electric saw, planer and for other electrical tools .

4. Commutator for other industry : Pump, car batteries, motorcycle, yacht pumps, toys, electric door, fitness equipment, aerial photography and so on.

commutator workshop

Packaging & Shipping

Our team and service

Thousands of sizes in stock ,no need to making moud again. factory prices ,free samples. exports to more than 30 countries, welcome to inquiry ,select and purchase!!
