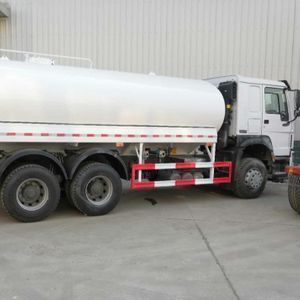

20m3 Capacity Sinotruk Howo7 Liquid Tank Truck 10 Wheels Water Spray Truck

Supplier: Jinan Heavy Truck Import & Export Co., Ltd.
Region: Shandong, China
Contact: Mr David Zhang
Price: $34500.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Condition:	New;	Tank Volume:	15001 - 30000L;
Gross Vehicle Weight:	25000;	Color:	Customer's Require;
Brand Name:	SINOTRUK HOWO;	Place of Origin:	Shandong China;
Payment Terms:	L/C,T/T;	Port:	ANY PORTS OF CHINA;
Storage:	Water;	Packaging Detail:	NUDE;
Emission standard:	Euro2/3/4/5;	Transmission Type:	Automatic;
Supply Ability:	100 Unit/Units per Month;	Drive Wheel:	6x4;
Driving type:	6*4;	Product name:	Tank Water Truck;
Fuel Type:	Diesel;	Engine Capacity:	9.726;
Dimensions (L x W x H) (mm):	984024963630;	Chassis brand:	SIONTRUK HOWO;
Tank body volume:	20CBM;	Horsepower:	251 - 350hp;

20m3 Capacity Sinotruk Howo7 Liquid Tank Truck 10 Wheels Water Spray Truck

Description:

1. Chassis multi choice: Dongfeng, ISUZU, Howo

2. Engine multi choice: according to your working environment to recommend accordingly

3. Volume: 3~30 CBM, others also can custom

4. Factory visiting: We will arrange you a nice trip.

5. Quality guarantee: 16 years manufacturing experience, strict control in every production line

6. After-sale service: One year free maintainence

Specification:

Truck Model					ZZ1257N4347 (LHD)
Truck Brand					SINOTRUK –HOWO
Driving Style					Left Hand Driving
Tank body volume					16CBM
Approaching angle/Departure angle(°)					19/26
Overhang(front/rear) (mm)					1500/1739
Wheel base (mm)				4350+1350(mm)
Max speed(km/h)				75
Maximum gradeability (%)				40
Minimum ground clearance(mm)				314
Minimum turning circle (m)				20
Curb weight(kg)				12290
Loading Weight(kg)				25000
Fuel tanker capacity(L)				300
Fuel consumption(L/km)				28L/100 km
Clutch				Single-plate dry clutch Φ430mm
Engine Model (Steyr technology, made in China)	Fuel type			Diesel
	Horse Power, max(kw/rpm)			371HP,247/2200
	Emission			EURO II
	Model			WD615.47
	Bore			126mm
	Stroke			130mm
	Compression ratio			29.8hp/l
	Specific fuel consumption			195g/kwh
Transmission		Model		HW19710
Brake system		Service brake		Dual circuit compressed air brake
		Parking brake		spring energy, compressed air operating on rear wheels
		Auxiliary brake		Engine exhaust brake
Steering system		Model		ZF8098 Hydraulic Steering with power assistance.
Front axle		HF9
Rear axle		HC16
Color		Optional (White ,Red ,yellow )
Tyre		12R22.5
COLOR		Optional
Electrical system		Battery	2X12V/165Ah
		Alternator	28V-1500kw
		Starter	7.5Kw/24V
Cab		HW76 single sleeper
