AIYIA Customer order Roof Panel Steel Plate Corrugated Machine ,cold roll forming equipment
-
Supplier: Shanghai Aiyia Industrial Co., Ltd. -
Region: Shanghai, China -
Contact: Ms Anna Xie -
Price: $6000.00 /piece -
Min. Order: 1 piece
| Delivery Detail: | 15-30days; | Warranty: | 1 Year; |
| Voltage: | 380v; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Brand Name: | AIYIA GROUP; | Certification: | ISO; |
| Feed plate width: | 1000mm; | Speed of work: | 10000mm/min; |
| Condition: | New; | Packaging Detail: | wooden cass; |
| Product name: | roll forming machine; | Color: | Clients' Requirements; |
| Transportation costs: | Customer is responsible for logistics freight; | Application: | roofing sheet; |
| Total equipment weight: | 3-20ton; | Supply Ability: | 15 Piece/Pieces per Month; |
| Port: | tianjing qingdao shanghai; | Voltage: | 380V; |
| Model Number: | 880; | Type: | machine; |
| Place of Origin: | Shandong China; | Dimension(L*W*H): | 7300*1400*1500mm; |
| Power(W): | 4kw; | material: | steel; |
| package: | Bare outfit; | Payment Terms: | L/C,T/T; |
| Weight: | 3-20ton; |

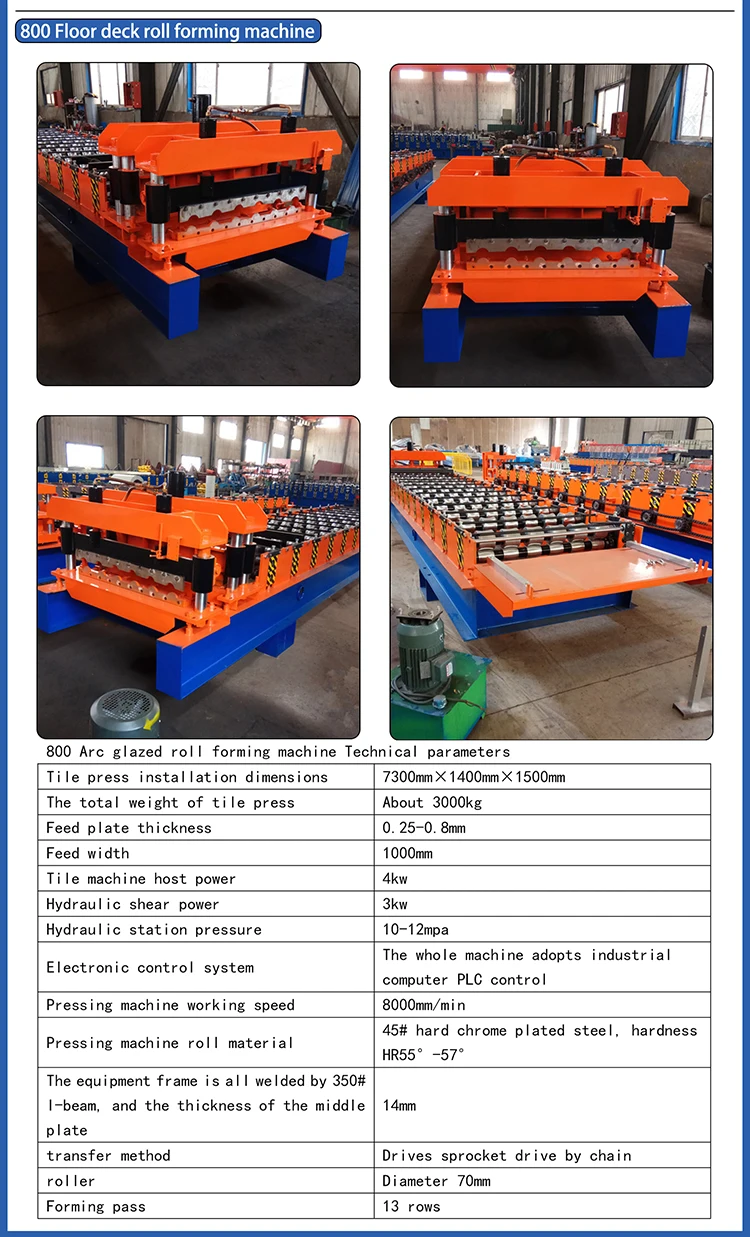

800 Arc glazed roll forming machine Technical parameters
Tile press installation dimensions | 7300mm×1400mm×1500mm |
The total weight of tile press | About 3000kg |
Feed plate thickness | 0.25-0.8mm |
Feed width | 1000mm |
Tile machine host power | 4kw |
Hydraulic shear power | 3kw |
Hydraulic station pressure | 10-12mpa |
Electronic control system | The whole machine adopts industrial computer PLC control |
Pressing machine working speed | 8000mm/min |
Pressing machine roll material | 45# hard chrome plated steel, hardness HR55°-57° |
The equipment frame is all welded by 350# I-beam, and the thickness of the middle plate | 14mm |
transfer method | Drives sprocket drive by chain |
roller | Diameter 70mm |
Forming pass | 13 rows |
