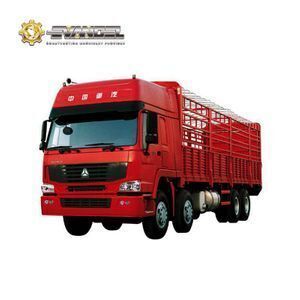

ZZ1257S4341V 371HP 25 ton 6x4 Sinotruk Howo Chinese cargo truck cheap

Supplier: Evangel Industrial (Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Ms Daisy Zhu
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Emission Standard:	Euro 2;	Packaging Detail:	seaworthy packing;
Fuel Type:	Diesel;	Place of Origin:	Shandong China;
Key words:	cargo truck;	Drive Wheel:	6x4;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Brand Name:	Sinotruk Howo;
Port:	Shanghai, Qingdao;	Condition:	New;
Supply Ability:	100 Set/Sets per Month;	Capacity (Load):	21 - 30t;
Size:	980024963048mm;	Transmission Type:	Manual;
Gross Vehicle Weight:	25000;	Horsepower:	351 - 450hp;
Engine Capacity:	> 8L;

ZZ1257S4341V 371HP 25 ton 6x4 Sinotruk Howo Chinese cargo truck cheap

Parameter of SINOTRUK HOWO Cargo Truck 25 ton 6x4:

GVW25000kg Driving Type 6x4

Model		ZZ1257M4341W ZZ1257M4341V ZZ1257N4341W ZZ1257N4341V ZZ1257S4341W ZZ1257S4341V		ZZ1257M4641W ZZ1257M4641V ZZ1257N4641W ZZ1257N4641V ZZ1257S4641W ZZ1257S4641V		ZZ1257M5241W ZZ1257M5241V ZZ1257N5247A ZZ1257S5247A		ZZ1257M5841W ZZ1257M5841V
Dimensions(mm)		7100x2326x600(800)		7650x2326x600(800)		8480x2326x600(800)		9280x2326x600(800)
Dimensions(mm)		9800x2496x 3048,3633		10350x2496x 3048,3633		11184x2496x 3048,3633		11963x2496x 3048,3633
Kerb weight (Kg)		11150		11480		11830		12170
Cab		HW76 HW79 HW76 HW79 HW76 HW79		HW76 HW79 HW76 HW79 HW76 HW79		HW76 HW79 HW76/HW79 HW76/HW79		HW76 HW79
Engine(Hp)		266/290 266/290 336 336 371 371		266/290 266/290 336 336 371 371		266/290 266/290 336 371		266/290 266/290
Power(Kw)		196/213 196/213 247 247 273 273		196/213 196/213 247 247 273 273		196/213 196/213 247 273		196/213 196/213
Transmission		HW15710/HW19710		HW15710/HW19710		HW15710/HW19710		HW15710/HW19710
Front Axle		HF7		HF7		HF7		HF7
Steering		ZF8098		ZF8098		ZF8098		ZF8098
Rear Axles		HW1697/ST16		HW1697/ST16		HW1697/ST16		HW1697/ST16
Wheels & Tyres		8.5/12.00R20		8.5/12.00R20		8.5/12.00R20		8.5/12.00R20
Specifications
Engine	Model		WD615.62		WD615.87		WD615.69		WD615.47
	Horsepower		266		290		336		371
	Maximum output Kw/r/min		196/2200		213/2200		247/2200		273/2200
	Maximum torque N.m/r/min		1100/1100-1600		1160/1100-1600		1350/1300-1600		1460/1300-1600
	Type		6-cylinder in line, 4-stroke, water-cooled turbo-charged & inter-cooled, direct injection
	Bore x Stroke		126x130mm
	Valve		2
	Displacement		9.726L
	Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan
	Option:Thermostat with 71℃ opening begin; silicone oil fan; Cold-start with electric-inlet-air heating System (180Ah battery)
Cab	SINOTRUK HW76 Lengthen cab,single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system, German VDO instruments safety belts, exterior sun visor,stereo radio/cassette recorder,left driving air conditioner.Option: right driving; color; Wind guide cover SINOTRUK HW79 High roof cab,double bunk,Other with the above
Clutch	SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
Transmission	SINOTRUK HW15710 or HW19710 transmission ,10 forward and 2 reverse Ratio:14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.80 1.34 1.00 13.91(R1) 3.18(R2)
Front Axle	SINOTRUK HF7 Front Axle,new 7-ton front axles of equipped with drum brakes Option: disc brake
Steering	German ZF8098 Steering Gear Box ,hydraulic steering with power assistance Ratio:22.2-26.2
Rear Axles	ST16 Double Reduction Drive Axle, Pressed axle housing, central single Reduction with planetary wheel reduction and with differential locks between wheels and axles,ratio: 3.93,4.42 or 4.8;strengthened design, loading capacity and reliability have been increased greatly. HW 1697 Single Reduction Drive Axle, ratio: 4.22 or 3.73,The basic Configuration of HOWO series on-road vehicle is especially suitable for transportation on express way and road above class II.
Brake System	Service brake:dual circuit compressed air brake Parking brake (emergency brake):spring energy,compressed air operating on rear wheels Auxiliary brake:engine exhaust valve brake
Wheels & Tyres	Rims:8.5-20,10 hole-steel ;Tyres:12.00-20 diagonal tyre with 1 Spare tire Option:12.00R20 radial tyre
Electrics	Operating voltage:24V,negative grounded Starter:24V,7.5 Kw Alternator:3-phase,28V,1500 W Batteries:2x12 V,165 Ah Cigar-lighter,horn,headlamps,fog lights,brake lights,indicators and reverse light Option:2x180Ah Batteries
Oil Tank	Square type-300L Aluminum alloy fuel tank
Other Optional	Vertical Muffler;ABS;Automatic Break Clearance Adjusting Arm;Traveling Data Recorder;Under Starting/Stopping Device;Metal Pipeline;Engine Protective Board
Delivery date	Within 30 days after receipt advance
Weight in kg	Gross vehicle weight 25000 Front axle loading capacity 7000 Rear axles loading capacity 2x16000
Performance	Maximum drving speed (km/h) 102 Fuel consumption (1/100 km) 35
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.
